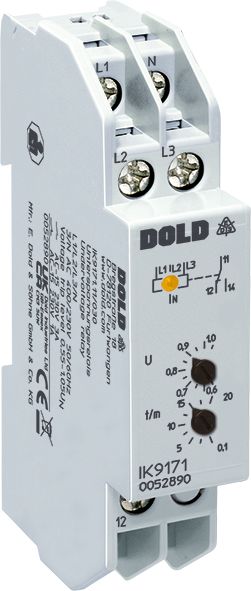

Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S
|
116,97 EUR |
|||||||||||
|
( 139,19 EUR incl. VAT ) ≈ £97.90 | ≈ $128.55 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312710 | ||||||||||
| Mfg Part No: | 0050437 | ||||||||||
| UPC/EAN: | 4030641504373 | ||||||||||
| Weight: | 0.073 kg | ||||||||||
| Type: | IK9171.11/030 3AC440/254V,55-1,05UN | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0050437:
Applications
This relay is used in industrial and commercial facilities where continuous power supply is critical. It monitors three-phase networks for undervoltages and can trigger a safety function upon detection of a fault, such as phase loss or voltage drop. Typical applications include securing emergency lighting, safety systems, or controlling switching to backup power supplies. The variant with time delay t1 (0.5–20 s) is particularly used in unstable networks to avoid immediate shutdown during short-term voltage dips. The time delay t1 is only effective if the phase voltage L1-N (for IK/SK 9171) is at least 0.5 Un.
Functions and Equipment in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 Un, allowing flexible adaptation to various network conditions. The hysteresis is approximately 4 %, ensuring stable switching behavior during voltage fluctuations. The contact configuration includes one changeover contact (1 C/O contact), suitable for controlling auxiliary functions or safety circuits. A yellow LED indicates the contact position: when the output relay is activated (contacts 11-14 closed), the LED lights up. Phase sequence is arbitrary, simplifying installation. The device operates without auxiliary voltage, simplifying installation and maintenance.
Technology Explained Simply
The relay measures the arithmetic mean of each of the three phases against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). When a voltage drop falls below the set pickup value, the output contact opens, enabling control of an external switch or safety function. The time delay t1 ensures that the device initially enters the good state upon power-up, even if a fault is present. The fault state is only activated after the delay time has elapsed, preventing false alarms during short-term voltage dips.
Compatibility and Accessories
The device is suitable for single-phase and three-phase connections and can be used in 3/N AC 440 / 254 V networks as well as in other voltage ranges up to 3/N AC 500 / 290 V. It is equipped with a neutral conductor connection and complies with the standard IEC/EN 60255-1. UKCA approval is granted.
Mounting and Installation
Mounting is performed in installation distributors according to DIN 43 880. The depth is 59 mm, and the connection terminals are located at the bottom. The frequency range is between 45 and 65 Hz. The devices are designed for continuous overload capacity of 1.15 Un. The nominal consumption is approximately 6 VA for IK/SK 9171.11.
Advantages in Operation
The relay provides reliable network monitoring without auxiliary voltage, simplifying installation. Adjustable parameters such as pickup value and time delay allow flexible adaptation to different requirements. The LED indicator facilitates diagnosis and maintenance. The stand-by current principle ensures safe fault detection, as the output relay is not activated in the event of a fault. The construction is compact (17.5 mm width) and fits in standard distributor enclosures.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Distribution board |
| Nominal voltage max. | 3/N AC 500 / 290 V |
| Output contacts | 1 C/O contact |
| Width | 17,5 mm |
| Type | IK 9171 |
| Operate delay | |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | 3/N AC 440 / 254 V |
| Response value | 0,55 - 1,05 Un |
| Time delay | 0,5 - 20 s |
| Approvals and Markings | UKCA |
| Variant | With N. NC circuit operation. Settable time delay t1. Settable response value |
Questions & answers
What is the delivery time of Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S ?
The article Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050437 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S always at the best possible price. We can give you a discount of 2% on Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0050437 IK9171.11/030 3AC440/254V,55-1,05UN undervoltage relay Tv=0.5-20S we can offer you a price of 116,09 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
