Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module

Your rating:
Average rating
product review for Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module
( 4.4 / 5 ) 14 ratings

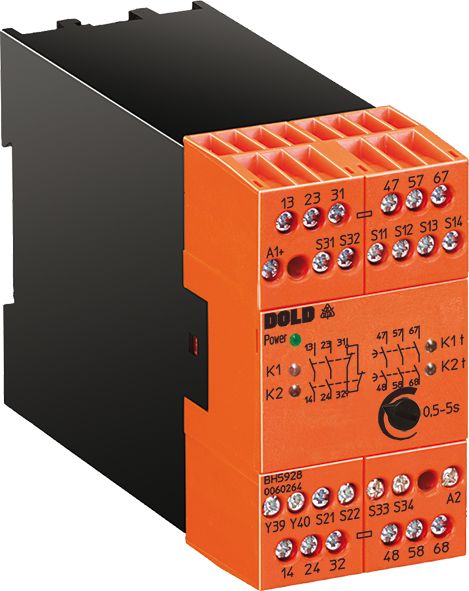

Dold 0050077
This image may differ from the desired article.
507,41 EUR
( 603,82 EUR incl. VAT )
≈ £424.70  |  ≈ $557.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module
Datasheet:file_download Download
Lieske Part No.:574349
Mfg Part No: 0050077
UPC/EAN: 4030641500771
Weight:0.428 kg
Type:BH5928.92 AC/DC24V 50/60HZ 0,1-1S
Graduated prices net
From piecesPrice per pieces
3499,80 EUR
6492,19 EUR
9484,58 EUR
12476,97 EUR

Product information for Dold 0050077:

The Dold safety relay BH5928.92 is an emergency stop module with adjustable time delay, designed for use in safety-critical systems. It operates at a nominal voltage of AC/DC 24 V and offers a time range from 0.1 to 1 second. The device is designed for the protection of personnel and machinery, particularly in emergency stop circuits, where a stop category 1 can be achieved. It is also suitable for monitoring sliding safety guards and can be used as a safety door monitor.

Applications
This safety relay is intended for use in industrial systems where safe shutdown is required in hazardous situations. It is used in machine controls to ensure safe machine shutdown when an emergency stop button is activated or when a safety door is opened. The function as a safety door monitor enables monitoring of access areas, where the device responds to the opening of a safety door and shuts down the machine if the door is opened. The application is in environments where safety requirements according to EN ISO 13849-1 and IEC/EN 62061 must be met.

Functions and Equipment in Detail
The device features contact configuration with 2 NO contacts, 1 NC contact immediately, and 3 NO contacts with delayed reset. The delayed reset contacts enable controlled shutdown over an adjustable time range of 0.1 to 1 second. The output contacts are rated for a maximum thermal current of 5 A. The connection technology uses removable screw terminals, enabling flexible and secure connections. The terminals are suitable for wires with 2 x 1.5 mm² with ferrule and plastic collar DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm² with ferrule DIN 46 228-1/-2/-3.

Technology Explained Simply
The safety relay operates on the principle of redundant safety monitoring. It can be operated in a 1- or 2-channel configuration, with the 2-channel version offering a higher safety level. Cross-circuit detection at the single button (terminals S33–S34) detects faults in the control circuit, such as short circuits or open lines. The status indicator for the delayed reset timing circuit, along with LED indicators for power supply, channel 1/2, and time delay, enable visual monitoring of the operating status. Activation occurs either via a single button at S33–S34 or via an automatic activation function with a bridge at S13–S14.

Compatibility and Accessories
The device is designed for use in safety systems that meet the requirements of standards EN ISO 13849-1 and IEC/EN 62061. It has a width of 45 mm and can be mounted in standard control panels. Certifications include UL-listed C/US, TÜV, and CCC. The SIL claim limit (SIL CL) is 3 according to IEC/EN 62061, corresponding to safety integrity level SIL 3. The Performance Level (PL) e and Category 4 according to EN ISO 13849-1 guarantee high safety performance.

Mounting and Installation
Mounting is carried out in standard control panels with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. Wiring is done according to the circuit diagrams in the datasheet, taking into account the terminal assignment and connection options for the emergency stop function and cross-circuit detection. The LED indicators support commissioning and fault diagnosis.

Advantages in Operation
The safety relay offers high reliability through redundant safety functions and clear status indication. The adjustable time delay enables tailored shutdown, increasing operational safety. Cross-circuit detection prevents false alarms and ensures the integrity of the control circuit. The connection terminals are suitable for various wire cross-sections, increasing flexibility during installation. The certifications and markings guarantee compliance with international safety standards.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts, 3 NO contacts delayed
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5928
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts, 1 NC contact instantaneous, 3 NO contacts off delay
Nominal voltageAC/DC 24 V
Time range0,1 - 1 s
Approvals and MarkingsUL-listed C/US, TÜV, CCC
VariantWith adjustable time delay


Product data sheet
Datasheet for Dold 0050077, EAN: 4030641500771

Questions & answers

What is the delivery time of Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module ?

The article Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050077 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0050077 BH5928.92/61 AC/DC24V 0.1-1S emergency stop module we can offer you a price of 499,80 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
