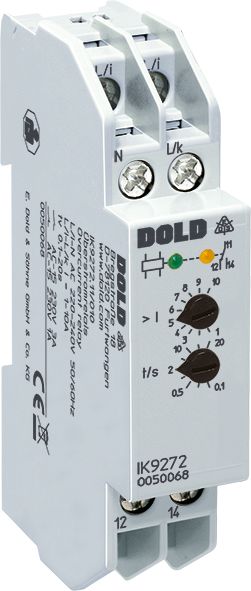

Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S

Your rating:
Average rating
product review for Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S
( 4.8 / 5 ) 8 ratings
Dold 0050068
This image may differ from the desired article.
108,63 EUR
( 129,27 EUR incl. VAT )
≈ £90.92  |  ≈ $119.38
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S
Datasheet:file_download Download
Lieske Part No.:1312750
Mfg Part No: 0050068
UPC/EAN: 4030641500689
Weight:0.123 kg
Type:IK9272.11/010 AC220-240V 1-10A
Graduated prices net
From piecesPrice per pieces
5104,56 EUR
10100,48 EUR
1596,41 EUR
2092,34 EUR

Product information for Dold 0050068:

The Dold overcurrent relay IK9272.11/010 AC220-240V 1-10A is a single-phase current relay for monitoring alternating and three-phase power networks. It is designed for continuous monitoring of load currents in the range of 1 to 10 A and responds to exceeding the set switching point with a time-delayed switching function. The device operates on the operating current principle, whereby the output relay is activated in the event of a fault, and is not designed to be latching. The auxiliary voltage is AC 220 to 240 V, with the operating voltage functioning stably within a range of 0.8 to 1.1 times the nominal voltage. The width of 17.5 mm allows for compact mounting in installation distributors according to DIN 43880.

Applications
This relay is intended for use in industrial and technical installations where precise current monitoring is required. Typical applications include monitoring motors, heaters, pumps, or other electrical consumers, where a sudden increase in current may indicate a fault or overload. The adjustable switching delay of 0.1 to 20 seconds allows for consideration of short-term current peaks that should not be interpreted as faults. The device type IK 9272 is designed for installation distributors, with connection terminals located at the bottom and a depth of 59 mm.

Functions and Equipment in Detail
The relay features an adjustable switching point within the measurement range of 1 to 10 A, which can be continuously adjusted. The hysteresis is fixed at approximately 4%, ensuring stable switching behavior without unwanted oscillations. The output contacts consist of a changeover contact (1 C/O contact), designed for switching operations with an electrical life of up to 300,000 switching cycles at 1 A and AC 230 V. The mechanical life exceeds 100 million switching cycles. Operational readiness is indicated by a green LED, while a yellow LED signals the switching state of the output relay.

Technology Explained Simply
Monitoring is performed via the measured current, supplied through the input terminals. When the set switching point is exceeded, the contact is switched after the set delay time has elapsed. The delay is intended to ignore short-term current peaks, such as those occurring during motor start-ups. The auxiliary voltage is supplied via the network and provides the necessary energy for controlling the output relay. The switching delay is adjustable via a rotary control on the device and can be varied between 0.1 and 20 seconds depending on the application.

Compatibility and Accessories
The device is specified according to IEC/EN 60255 and complies with standards for electrical equipment in monitoring technology. It is designed for continuous operation and can be operated in environments with temperatures from -20 to +60 °C. The terminals are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3/-4). Mounting is done via a DIN rail according to IEC/EN 60715. The enclosure protection rating is IP 40, and the terminals are rated IP 40. Maximum short-circuit withstand is ensured by a maximum fuse rating of 4 A gG/gL.

Mounting and Installation
Mounting is performed in standard installation distributors with DIN rail. The connection terminals are located at the bottom of the device, enabling easy integration into existing control systems. Fixing is done using flat clamps with self-lifting connection washers, with a tightening torque of 0.8 Nm. The device dimensions are 17.5 mm (width) x 90 mm (height) x 59 mm (depth). Installation requires no special tools, as the terminals are mounted directly onto the DIN rail.

Advantages in Operation
The adjustable switching delay allows flexible adaptation to different load profiles. The LED indicators provide quick visual control of the operating status. The high mechanical life and robust construction ensure reliable operation over a long period. Compliance with the IEC/EN 60255 standard ensures compatibility with other devices in the network. The device is designed for use in industrial environments where high reliability and longevity are required.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9272
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Measuring range1 - 10 A
Switching delay0,1 - 20 s
Variant1-phasiges Stromrelais. Arbeitsstromprinzip. Nicht speichernd


Product data sheet
Datasheet for Dold 0050068, EAN: 4030641500689

Questions & answers

What is the delivery time of Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S ?

The article Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0050068 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0050068 IK9272.11/010 AC220-240V 1-10A overcurrent relay 0.1-20S we can offer you a price of 104,56 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
