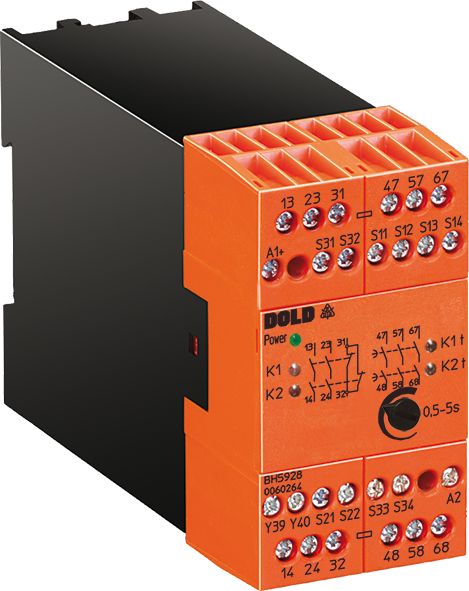

Dold 0049449 BH5928.92/61 AC/DC24V 1-10S emergency stop module

Your rating:
Average rating
product review for Dold 0049449 BH5928.92/61 AC/DC24V 1-10S emergency stop module
( 4.8 / 5 ) 5 ratings
Dold 0049449
This image may differ from the desired article.
507,41 EUR
( 603,82 EUR incl. VAT )
≈ £424.70  |  ≈ $557.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049449 BH5928.92/61 AC/DC24V 1-10S emergency stop module
Datasheet:file_download Download
Lieske Part No.:1312819
Mfg Part No: 0049449
UPC/EAN: 4030641494490
Weight:0.428 kg
Type:BH5928.92 AC/DC24V 50/60HZ 1-10S
Graduated prices net
From piecesPrice per pieces
3499,80 EUR
6492,19 EUR
9484,58 EUR
12476,97 EUR

Product information for Dold 0049449:

The Dold safety relay BH5928.92 AC/DC24V 50/60HZ 1-10S is an emergency stop module for use in industrial safety systems. It serves the protective function for personnel and machinery, particularly in systems with emergency stop circuits that must meet Stop Category 1 requirements. The device is also suitable for monitoring sliding safety guards and is used in safety-critical applications where reliable response to faults or emergency situations is required.

Applications
This safety relay is designed for use in industrial environments where compliance with safety standards and avoidance of hazards for operators and machinery are paramount. It is commonly used in machine building, manufacturing systems, and installations with moving parts, where an immediate and controlled shutdown is necessary. The function as a safety door monitor enables monitoring of access areas to ensure that machines are only operated when safety doors are closed.

Functions and Equipment in Detail
The device features contact configuration with 2 NO contacts, 1 NC contact immediately, and 3 NO contacts with delayed reset. The delayed reset contacts enable controlled shutdowns that can last up to 10 seconds, which is useful for safely decelerating machines or switching off drives. The time delay is adjustable and can be set within a range of 1 to 10 seconds. Connection technology uses removable screw terminals, enabling flexible and secure connections. The wire connections support up to 2 x 1.5 mm² stranded wire with ferrule and plastic collar DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with ferrule DIN 46 228-1/-2/-3.

Technology Explained Simply
The safety relay operates with a nominal voltage of AC/DC 24 V and is designed for use in 1- or 2-channel circuits. Cross-connection detection at the start button (when connected to terminals S33–S34) enables detection of faults in the control circuit to avoid false alarms or unintended activations. Status indicators for the delayed reset timing circuit, as well as LED indicators for power, channel 1/2, and time delay, support diagnosis and maintenance. Activation occurs either via the start button at S33–S34 or via an automatic start function with a bridge at S13–S14.

Compatibility and Accessories
The device is designed for use in safety-relevant systems and meets the requirements for safety functions. It is certified with UL-listed C/US, TÜV, and CCC approvals. Technical specifications comply with standards EN ISO 13849-1 (Performance Level PL e, Category 4) and IEC/EN 62061 (SIL CL 3, SIL 3). The maximum thermal current rating is 5 A. The width of 45 mm allows for compact mounting in standard enclosures.

Mounting and Installation
Mounting is performed in standard enclosures with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. Connections are clearly labeled, and functions such as cross-connection detection and time delay are configurable via the terminals. The LED indicators support commissioning and fault diagnosis.

Operational Advantages
The safety relay offers high reliability through integrated cross-connection detection and adjustable time delay. The LED indicators enable quick status monitoring. Compatibility with standards EN ISO 13849-1 and IEC/EN 62061 makes it suitable for applications in industrial automation where high safety requirements apply. The width of 45 mm and removable terminals simplify integration into existing control systems.

Approvals and Standards
The device complies with the requirements of standards EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL CL 3, SIL 3). Approvals UL-listed C/US, TÜV, and CCC confirm suitability for use in various markets. Compliance with these standards ensures reliability and safety in safety-critical applications.

Operational Safety and Diagnosis
The LED indicators for power, channel 1/2, and time delay support operational safety. The status indicator for the delayed reset timing circuit enables monitoring of the delay behavior. Cross-connection detection at the start button prevents false alarms and ensures the integrity of the control circuit. Maintenance is performed via removable terminals and clear labeling of connections.

Application Scenarios
The safety relay is used in systems requiring safe shutdown in emergencies. Examples include machines with moving parts, conveyor systems, presses, or systems with safety doors. The function as a safety door monitor enables integration into systems that monitor access to hazardous areas. The adjustable time delay is particularly useful for controlled machine shutdowns, avoiding sudden stops.

Approvals and Standards
The device complies with the requirements of standards EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL CL 3, SIL 3). Approvals UL-listed C/US, TÜV, and CCC confirm suitability for use in various markets. Compliance with these standards ensures reliability and safety in safety-critical applications.

Operational Safety and Diagnosis
The LED indicators for power, channel 1/2, and time delay support operational safety. The status indicator for the delayed reset timing circuit enables monitoring of the delay behavior. Cross-connection detection at the start button prevents false alarms and ensures the integrity of the control circuit. Maintenance is performed via removable terminals and clear labeling of connections.

Application Scenarios
The safety relay is used in systems requiring safe shutdown in emergencies. Examples include machines with moving parts, conveyor systems, presses, or systems with safety doors. The function as a safety door monitor enables integration into systems that monitor access to hazardous areas. The adjustable time delay is particularly useful for controlled machine shutdowns, avoiding sudden stops.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts, 3 NO contacts delayed
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5928
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts, 1 NC contact instantaneous, 3 NO contacts off delay
Nominal voltageAC/DC 24 V
Time range1 - 10 s
Approvals and MarkingsUL-listed C/US, TÜV, CCC
VariantWith adjustable time delay


Product data sheet
Datasheet for Dold 0049449, EAN: 4030641494490
