Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S
( 4.3 / 5 ) 6 ratings

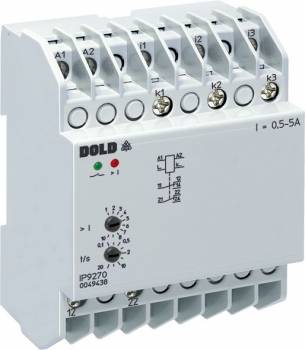

Dold 0049438
This image may differ from the desired article.
408,55 EUR
( 486,17 EUR incl. VAT )
≈ £341.96  |  ≈ $449.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:644844
Mfg Part No: 0049438
UPC/EAN: 4030641494384
Weight:0.224 kg
Type:IP9270.12/010AC220-240V0,5-5A
Graduated prices net
From piecesPrice per pieces
4405,49 EUR
8402,42 EUR
12399,36 EUR
16396,29 EUR

Product information for Dold 0049438:

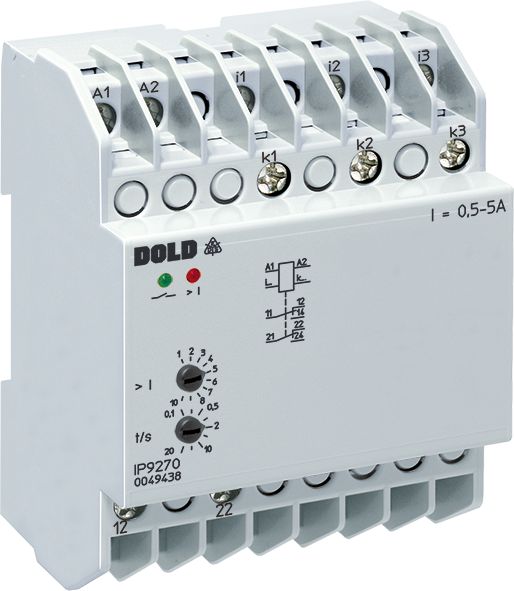

The Dold overcurrent relay type IP9270.12/010AC220-240V0,5-5A is an industrial-grade measuring and protection device for monitoring currents in alternating and three-phase power systems. It is designed for continuous monitoring of current flow in electrical installations and responds to exceeding a set switching threshold with a time-delayed switching function. The device is designed for use in three-phase networks and operates on the operating current principle, whereby the output relay is activated in the event of a fault. The auxiliary voltage is AC 220–240 V, making it suitable for use in standard industrial distribution systems with corresponding supply voltage.

Applications
This relay is intended for use in industrial and commercial electrical installations, particularly in systems with three-phase power supply, where precise current monitoring is required. Typical applications include monitoring motors, transformer installations, pumps, or other electrical loads, where an unexpected current increase may indicate a fault or overload. The adjustable switching delay allows short-term current surges, such as those occurring during motor start-ups, to be ignored, triggering a response only in the case of sustained overcurrents.

Functions and Features in Detail
The device features two changeover contacts as output contacts, which switch after an adjustable delay of 0.1 to 20 seconds when the set threshold value is exceeded. The threshold value is adjustable within the measuring range of 0.5 to 5 A, allowing flexible adaptation to different loads. The hysteresis is fixed at approximately 4 %, ensuring secure reset of the relay after the current has dropped. Operational readiness is indicated by a green LED, while exceeding the switching threshold triggers a red LED (I max). This visual feedback facilitates diagnosis during operation.

Technology Explained Simply
The relay operates on the operating current principle, meaning the output relay is activated in the event of a fault to trigger, for example, a contactor or fuse. Measurement is performed via a separate current measurement circuit, which is galvanically isolated from the auxiliary circuit to ensure safe and interference-free measurement. The time delay is designed to filter out short-term current surges that are not harmful, triggering a switching function only in the case of sustained overcurrents. The width is 70 mm, making it suitable for installation in standard installation distributors according to DIN 43880.

Compatibility and Accessories
The device is designed for use in three-phase networks and complies with the standard IEC/EN 60255-1. It is manufactured in I-form, intended for installation and industrial distributors, with a depth of 61 mm and connection terminals located at the bottom. Terminal markings follow the scheme A1/A2 for auxiliary voltage, i/k for the current measurement circuit, and Z1/Z2, Z3/Z4 for selecting the measuring range. The connection terminals are designed for mounting in distributors according to DIN 43880.

Mounting and Installation
Mounting is carried out in installation distributor enclosures according to DIN 43880. The width of 70 mm allows installation in standard distributors, with connection terminals located at the bottom. The auxiliary voltage is connected via terminals A1/A2, and the current measurement circuit via i/k. The measuring range selection is performed via bridges between terminals 11, 12, and 14. The connection terminals are designed for connection with cables that meet the respective requirements of the installation.

Operational Advantages
The relay provides precise and reliable current monitoring with adjustable parameters, allowing adaptation to different applications. The LED indicators enable quick visual control of the operational status. The galvanic isolation between the measurement and auxiliary circuits increases safety and prevents interference. The adjustable time delay reduces false tripping caused by short-term current surges. The design for installation distributors according to DIN 43880 ensures easy integration into existing systems.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Output contacts2 C/O contacts
Width70 mm
TypeIP 9270
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
Measuring range0,5 - 5 A
Time delay0,1 - 20 s
Variant3-phase current relay. Energized on trip


Product data sheet
Datasheet for Dold 0049438, EAN: 4030641494384

Questions & answers

What is the delivery time of Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S ?

The article Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049438 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0049438 IP9270.12/010 AC220-240V 0.5-5A overcurrent relay Tv=0.1-20S we can offer you a price of 405,49 EUR per piece. The more you buy, the cheaper the article will be.
