Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph.

Your rating:
Average rating
product review for Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph.
( 4.6 / 5 ) 12 ratings

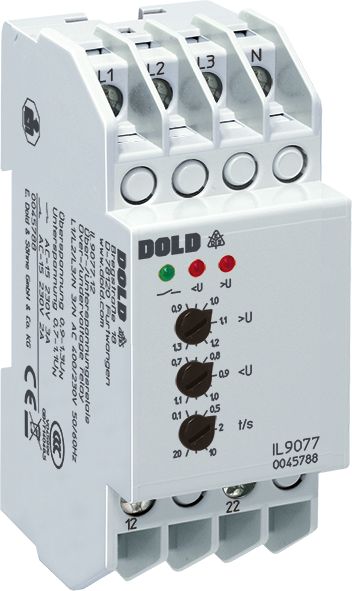

Dold 0049322
This image may differ from the desired article.
276,25 EUR
( 328,74 EUR incl. VAT )
≈ £231.22  |  ≈ $303.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph.
Datasheet:file_download Download
Lieske Part No.:1312739
Mfg Part No: 0049322
UPC/EAN: 4030641493226
Weight:0.123 kg
Type:IL9077.12/011 3AC400V 0,1-20S
Graduated prices net
From piecesPrice per pieces
4265,89 EUR
8255,53 EUR
12245,17 EUR
16234,81 EUR

Product information for Dold 0049322:

The Dold IL9077.12/011 3AC400V 0,1-20S is an under-/overvoltage relay for monitoring AC and three-phase power networks. It is used, for example, for monitoring self-generation systems in accordance with VDE 0100. The device operates on the standby current principle, meaning that the output relay is energized in the normal state and de-energizes in case of a fault. It is designed for use in installation distributors and has a width of 35 mm. The rated voltage is 3AC 400 V, and the device is also suitable for single-phase applications. The time delay is adjustable between 0.1 and 20 seconds, enabling controlled response to short-term voltage fluctuations.

Applications
This relay is used in industrial and commercial installations where reliable network monitoring is required. It is particularly suitable for systems connected to the public power grid, as well as for self-generation systems such as photovoltaic installations or generators. Monitoring is based on overvoltage, undervoltage, and phase failure. The function is independent of phase sequence, simplifying installation. The variant without neutral conductor connection measures phase voltages L1 and L2 against L3, making it suitable for systems without an N connection.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which de-energize in case of a fault. The pickup values for overvoltage (0.9 to 1.3 times rated voltage) and undervoltage (0.7 to 1.1 times rated voltage) are independently adjustable, allowing flexible adaptation to different network conditions. Network fault diagnosis is indicated by multiple LEDs: a green LED indicates normal operation, while two red LEDs indicate the fault cause („<U“ for undervoltage, „>U“ for overvoltage). Upon returning to normal operation, a hysteresis of approximately 4 % of the set value prevents unnecessary switching operations.

Technology Explained Simply
The relay monitors voltage in a three-phase network and reacts if at least one phase exceeds the set threshold for overvoltage or undervoltage. The time delay of 0.1 to 20 seconds prevents reactions to short-term disturbances. Asymmetry detection is activated in this variant: if voltage asymmetry in the network exceeds approximately 5 to 10 %, even though all phases are within the permissible range, the relay de-energizes and the LED changes from green to red. This enables detection of disturbances caused by back-feeding or other network faults.

Compatibility and Accessories
The device is designed for single- and three-phase networks and can operate without auxiliary voltage. It is available in I-form, featuring a depth of 59 mm and bottom-mounted connection terminals for installation and industrial distributors in accordance with DIN 43880. The width is 35 mm. The measurement range limit is 500 V, with the standard measurement range being 3/N AC 400/230 V. CCC certification is included, and the device complies with the standard IEC/EN 60255-1.

Mounting and Installation
Mounting is carried out in installation distributors in accordance with DIN 43880. The connection terminals are located at the bottom, enabling easy integration into existing switchgear. The width of 35 mm fits standard modular constructions. Adjustment of pickup values and time delay is performed using rotary controls on the device.

Operational Advantages
The independent adjustability of pickup values for overvoltage and undervoltage, as well as the adjustable time delay, allows precise adaptation to specific requirements. The LED display provides quick visual fault diagnosis. The standby current principle ensures that the relay de-energizes in case of a fault, which is the desired response in many applications. Asymmetry detection extends functionality to also recognize voltage imbalances not caused by overvoltage or undervoltage alone.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Measuring range max.500 V
Output contacts2 C/O contacts
Standard measuring range3/N AC 400/230 V
Width35 mm
TypeIL 9077
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Time delay0,1 - 20 s
Approvals and MarkingsCCC
VariantWithout neutral connection. De-energized on trip. With asymmetry detection


Product data sheet
Datasheet for Dold 0049322, EAN: 4030641493226

Questions & answers

What is the delivery time of Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph. ?

The article Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph. is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049322 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph. always at the best possible price. We can give you a discount of 2% on Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0049322 IL9077.12/011 3AC400V 0.1-20S undervoltage-overvoltage relay 3ph. we can offer you a price of 265,89 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
