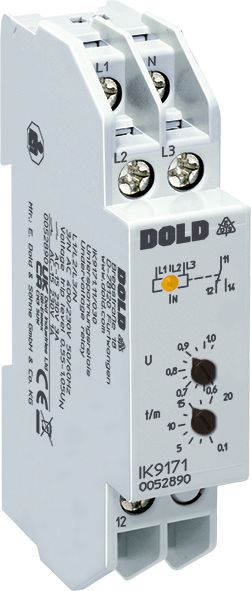

Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay

Your rating:
Average rating
product review for Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay
( 4.6 / 5 ) 74 ratings
Dold 0049292
This image may differ from the desired article.
Dold 0049292Dold 0049292
106,00 EUR
( 126,14 EUR incl. VAT )
≈ £88.72  |  ≈ $116.49
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay
Datasheet:file_download Download
Lieske Part No.:311094
Mfg Part No: 0049292
UPC/EAN: 4030641492922
Weight:0.073 kg
Type:IK9171.11/200
Graduated prices net
From piecesPrice per pieces
5102,03 EUR
1098,05 EUR
1594,07 EUR
2090,10 EUR

Product information for Dold 0049292:

The undervoltage relay from manufacturer Dold, type IK9171.11/200, is an electrical monitoring device for detecting undervoltages in three-phase networks. It serves for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the standby current principle, whereby the output relay is not activated in the event of a fault, ensuring safe and reliable signal transmission. The width is 17.5 mm, making it suitable for installation in installation distributors according to DIN 43 880. The housing design is intended for use in distributors, with connection terminals located at the bottom.

Applications
This relay is used in industrial and commercial installations where continuous power supply is critical. It monitors three-phase networks with neutral conductor connection (3/N AC 400/230 V) and can also be connected single-phase by connecting terminals L1, L2, and L3. Applications include monitoring power supplies in production plants, lighting systems, emergency power supplies, and other critical consumers that must be switched off during voltage dips. Compliance with the standard IEC/EN 60255-1 ensures electrical safety and reliability.

Functions and Equipment in Detail
The device detects undervoltages below 0.85 Un (rated voltage) and responds with a 1-changeover contact. The response delay is activated, meaning the device does not react immediately to short-term voltage dips but includes a brief stabilization period. The LED indicator signals the state of the output relay – illuminated yellow when contact 11-14 is closed. Phase sequence is arbitrary, allowing flexible installation. The device operates without auxiliary voltage, simplifying installation and ensuring independence from additional power sources.

Technology Explained Simply
Measurement is performed via the arithmetic mean of the three phases against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171). The rated voltage is 3/N AC 400/230 V, with a maximum rated voltage up to 3/N AC 500/290 V. The frequency range is between 45 and 65 Hz. The device is designed for continuous overload capacity of 1.15 Un. The hysteresis is approximately 4 %, preventing the relay from switching uncontrollably during slight voltage fluctuations.

Compatibility and Accessories
The relay is designed for use in installation distributors and can be combined with other devices from the series IK 9171, SK 9171, IL 9171, and SL 9171. Various variants are available with different response thresholds, time delays, and contact configurations; the variant described here is without time delay and features a fixed response threshold. The width of 17.5 mm allows mounting in standard distributor modules.

Mounting and Installation
Mounting is performed in installation distributors with terminals located at the bottom. The depth is 59 mm. The terminals are designed for direct connection to cables. In single-phase applications, terminals L1, L2, and L3 must be connected together. Installation is done without auxiliary voltage, simplifying wiring.

Operational Advantages
The relay provides reliable network monitoring without additional power supply. The LED indicator allows for quick status checking. Compliance with standards DIN VDE 0100-710 and DIN VDE 0108 ensures conformity with safety requirements. The housing design is compact and fits standard distributors, facilitating integration into existing installations. The standby current principle technology ensures safe signal transmission in the event of a fault, without activating the relay.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,85 Un
Time delaywithout
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Without time delay. Fixed response value


Product data sheet
Datasheet for Dold 0049292, EAN: 4030641492922

Questions & answers

What is the delivery time of Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay ?

The article Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0049292 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0049292 IK9171.11/200 3/N AC400/230V 0.85UN undervoltage relay we can offer you a price of 102,03 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
