Dold 0049270 IK9171.11/200 3AC400/230V 7/0.74UN undervoltage relay

Your rating:
Average rating
product review for Dold 0049270 IK9171.11/200 3AC400/230V 7/0.74UN undervoltage relay
( 4.7 / 5 ) 9 ratings
Dold 0049270

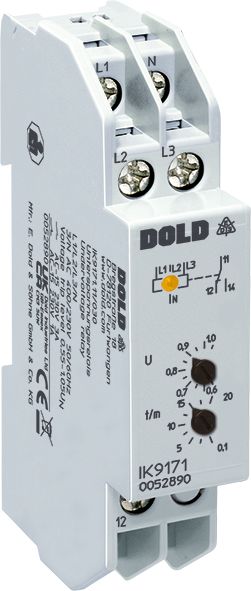

This image may differ from the desired article.
Dold 0049270Dold 0049270
106,00 EUR
( 126,14 EUR incl. VAT )
≈ £88.72  |  ≈ $116.49
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049270 IK9171.11/200 3AC400/230V 7/0.74UN undervoltage relay
Datasheet:file_download Download
Lieske Part No.:465010
Mfg Part No: 0049270
UPC/EAN: 4030641492700
Weight:0.073 kg
Type:IK9171.11/2003AC400/230V,7/0,74UN
Graduated prices net
From piecesPrice per pieces
5102,03 EUR
1098,05 EUR
1594,07 EUR
2090,10 EUR

Product information for Dold 0049270:

The Dold undervoltage relay IK9171.11/2003AC400/230V,7/0,74UN is designed for monitoring three-phase power networks for undervoltage and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 or DIN VDE 0108. It is designed for use in industrial and installation distributors and operates on the no-current principle, whereby the output relay is not activated in the event of a fault. The width is 17.5 mm, and the device is manufactured in I form, with connection terminals located at the bottom for installation and industrial distributors in accordance with DIN 43 880.

Applications
This relay is used for network monitoring in three-phase systems and can also be connected in single-phase mode. It is particularly suitable for applications where a secure power supply for emergency lighting or safety functions must be ensured in the event of undervoltage or phase failure. The version without time delay is suitable for systems where immediate contact switching is required upon detection of a fault.

Functions and equipment in detail
The device detects undervoltages in three-phase networks and responds at a pickup value of 0.7 to 0.74 times the nominal voltage (Un). The contact configuration includes a changeover contact, which opens the 11-14 contact when a fault is detected. An LED indicator signals the contact position – when the output relay is activated, the LED lights up yellow. Phase sequence is arbitrary, allowing flexible installation. The device operates without auxiliary voltage and is therefore independent of additional power supplies.

Technology explained simply
Measurement is performed via the arithmetic mean of the individual phases against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). In single-phase operation, terminals L1, L2, and L3 must be bridged. The hysteresis is approximately 4%, ensuring stable switching behavior during network voltage fluctuations. The nominal voltage is 3/N AC 400/230 V, with a maximum nominal voltage of 3/N AC 500/290 V. The frequency range is between 45 and 65 Hz.

Compatibility and accessories
The relay is suitable for 1- or 3-phase connections and can be integrated into installation distributors in accordance with DIN 43 880. It is part of the IK 9171 product family, which also includes variants with time delays t1 and t2 as well as phase sequence detection. The width of 17.5 mm allows for compact mounting in standard distributors. The devices are manufactured in accordance with IEC/EN 60255-1 and carry the UKCA mark.

Mounting and installation
Mounting is performed in installation distributors with terminals located at the bottom. The depth is 59 mm. The terminals are designed for direct connection to cables. In single-phase operation, terminals L1, L2, and L3 must be connected. Installation is performed without additional auxiliary voltage, simplifying wiring.

Advantages in operation
The relay provides reliable network monitoring without auxiliary voltage and with low power consumption (approx. 6 VA). The LED indicator allows for quick visual control of the operating status. The no-current principle ensures that the output relay is not unintentionally activated in the event of a fault. The compact design with a width of 17.5 mm enables flexible integration into existing distributor structures. Compliance with standards IEC/EN 60255-1 and DIN VDE 0100-710 ensures safety and reliability in operation.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,7 / 0,74 Un
Time delaywithout
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Without time delay. Fixed response value


Product data sheet
Datasheet for Dold 0049270, EAN: 4030641492700
