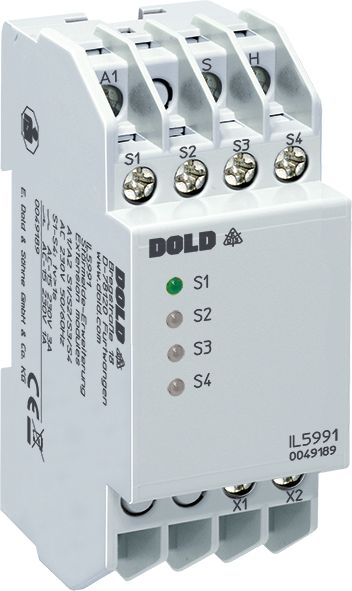

Dold 0049189 IL5991 AC 50/60 Hz 230 V 1S storm detector extension

Your rating:
Average rating
product review for Dold 0049189 IL5991 AC 50/60 Hz 230 V 1S storm detector extension
( 4.6 / 5 ) 5 ratings
Dold 0049189
This image may differ from the desired article.
Dold 0049189Dold 0049189
163,26 EUR
( 194,28 EUR incl. VAT )
≈ £136.65  |  ≈ $179.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0049189 IL5991 AC 50/60 Hz 230 V 1S storm detector extension
Datasheet:file_download Download
Lieske Part No.:1583556
Mfg Part No: 0049189
UPC/EAN: 4030641491895
Weight:0.132 kg
Type:IL5991 AC50/60HZ 230V 1S
Graduated prices net
From piecesPrice per pieces
5157,14 EUR
10151,02 EUR
15144,89 EUR
20138,77 EUR

Product information for Dold 0049189:

The Dold IL5991 AC50/60HZ 230V 1S is a fault alarm monitor for monitoring industrial plants and buildings. As an expansion device for the fault alarm system IL 5990/SL 5990, it enables the integration of additional fault alarm inputs into existing systems. The device is designed according to DIN 19235 and allows the number of fault alarm inputs to be expanded from 4 to up to 160, making it suitable for flexible use in larger monitoring systems. The width is 35 mm, enabling installation in standard installation distributors according to DIN 43880. The housing design is intended for installation distributors, with connection terminals located at the bottom (I-type). The rated voltage is AC 230 V, and the device is designed for continuous operation.

Applications include monitoring of machines, plants, buildings, and technical systems where central alarm reporting is required in case of faults. The device is particularly suitable for industrial environments requiring a reliable and expandable fault alarm system. The response delay is 1 second, which suppresses short-term disturbances or impulses to avoid false alarms. The delay is adjustable and can be set to 3 or 10 seconds depending on the application.

Functions and equipment in detail include four fault alarm inputs, which can be switched between active current principle (output relay is activated in case of fault) and rest current principle (output relay is not activated in case of fault) via bridges X1-X2. This allows flexible adaptation to different monitoring scenarios. Each input features an LED for optical indication, displaying the status of the respective fault. The alarm is transmitted via two normally open contacts (2 x 1 NO), each designated for collective alarm and horn. Acknowledgement is performed via a front-mounted acknowledgement button QH, which can also be used for external alarm devices.

Technology explained simply shows that the device operates at a rated voltage of AC 230 V and has a rated consumption of 8 VA. Inputs S1 to S4 and the supply voltage A1-A2 must be connected to the same phase to ensure correct operation. Bus lines H and S carry low voltage and must not be subjected to foreign voltages. For inductive or capacitive interference from high-current lines, the use of shielded cables is recommended, with the shield connected to PE. The contact rating is designed for a thermal current of 5 A, and the switching capacity is 1 A / AC 230 V according to AC 15. The electrical life expectancy is at least 150,000 switching operations at 1 A and AC 230 V.

Compatibility and accessories include use as an expansion device for fault alarm relays IL 5990 and SL 5990. It is compatible with the accessory alarm device IK/SK 8832, which can be connected via the acknowledgement button QH. Expansion is achieved via bus lines H and S, enabling central control and display of faults. The devices are designed for mounting on DIN rail (DIN 60715), allowing quick and secure installation in enclosures.

Mounting and installation is carried out in standard installation distributors with a mounting depth of 61 mm. The connection terminals are located at the bottom, enabling easy wiring. Conductor cross-sections are 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded with ferrules according to DIN 46228. The tightening torque is 0.8 Nm. The devices are designed for operating temperatures from -20 °C to +60 °C and can be used up to an operating altitude of 2000 m. The housing protection rating is IP 40, and the terminals are IP 40.

Operational advantages include high expandability, clear optical indication via LEDs, flexible adjustment of response delay, and easy integration into existing fault alarm systems. The use of two normally open contacts enables clear separation between collective alarm and horn signal. The mechanical life expectancy is at least 30 million switching operations, ensuring high reliability over a long period. The EMC requirements according to IEC/EN 61000-4-2 to -4-5 are met, ensuring immunity to electromagnetic interference. Radio frequency interference suppression complies with emission limit class B according to EN 55011.

Technical data
Alarm inputs4
Alarm inputs extendable up to160
Enclosure designDistribution board
Operating principleDe-energized on trip, Energized on trip
Optical signalLED
Width35 mm
TypeIL 5991
Optional buzzerYes
Variant
Contact equipping2 x 1 NO contact
Nominal voltageAC 230 V
Operate delay1 s


Product data sheet
Datasheet for Dold 0049189, EAN: 4030641491895
