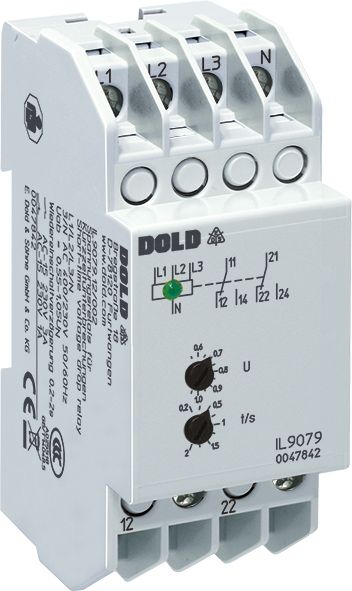

Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S

Your rating:
Average rating
product review for Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S
( 4.4 / 5 ) 29 ratings
Dold 0047842
This image may differ from the desired article.
276,25 EUR
( 328,74 EUR incl. VAT )
≈ £231.22  |  ≈ $303.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S
Datasheet:file_download Download
Lieske Part No.:547965
Mfg Part No: 0047842
UPC/EAN: 4030641478421
Weight:0.123 kg
Type:IL9079.12/002 3AC230/400V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
4263,82 EUR
8251,39 EUR
12238,96 EUR
16226,53 EUR

Product information for Dold 0047842:

The Dold undervoltage relay IL9079.12/002 is a trennschaltgerät for monitoring three-phase networks with rated voltage 3AC 230/400 V. It is designed to detect short-term voltage interruptions, such as those occurring during lightning strikes or network switching operations. The device is intended for use in contactor, PLC, and other control systems to prevent uncontrolled states caused by partially de-energized contactors. By means of an adjustable re-energizing delay, short voltage interruptions are converted into an extended reset pulse, which returns control systems to a defined initial state and prevents faulty restarts.

Applications
This relay is suitable for monitoring 1- and 3-phase networks and can also be connected single-phase, in which case terminals L1, L2, and L3 must be bridged. It is specifically designed for networks with a neutral conductor and detects voltage interruptions lasting at least 20 ms at a drop value of 0.8 Un. Applications include installation and industrial distribution systems, particularly in industrial automation technology, where reliable network monitoring is essential for process safety.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which are closed when the network is fault-free. The green LED indicator signals the normal operating condition. In the event of a fault, i.e., when at least one phase falls below the adjustable drop value (0.55 to 1.05 Un), the output relay drops out and the LED turns off. The re-energizing delay is adjustable between 0.2 and 2 seconds to generate a defined reset pulse. The device operates on the standby current principle, meaning the output relay is not activated in the event of a fault. Phase sequence is irrelevant, and the device operates independently of the phase arrangement in the network.

Technology Explained Simply
Voltage measurement is performed against the neutral conductor (N) for each phase. For devices without an N connection, L1 and L2 are measured against L3. The adjustable drop value allows flexible adaptation to different network conditions. The hysteresis is 4 %, ensuring stable switching behavior during voltage fluctuations. The response time for a phase failure is approximately 40 ms at a drop value of 0.8 Un. The rated frequency is 50/60 Hz, and the rated consumption is approximately 8 VA. The input resistances are approximately 150 kΩ.

Compatibility and Accessories
The relay is designed for use in installation distributors according to DIN 43880 and has a mounting width of 35 mm. It is available in the IL 9079 form factor, which features a depth of 59 mm and terminals located at the bottom. The devices are manufactured in accordance with IEC/EN 60255-1 and carry the CCC certification. The contact configuration consists of two changeover contacts with contact material made of AgNi. The thermal current rating is 4 A, and the measured rated voltage is AC 250 V.

Mounting and Installation
Mounting is carried out in standard installation distributors with a 35 mm mounting width. The terminals are located at the bottom, facilitating integration into existing control systems. The devices are designed for continuous overload capacity up to 1.1 Un. Terminal designations are clearly defined: L1, L2, L3, and N for voltage supply/measurement inputs, and 11, 12, 14, and 21, 22, 24 for the changeover contacts.

Operational Advantages
The adjustable re-energizing delay and rapid detection of short-term interruptions increase the reliability of control systems. The device enables preventive maintenance, as it detects and documents network disturbances early. Configuration as a fault memory (re-energizing lockout) is possible to prevent unwanted restarts. The green LED indicator provides visual feedback on the operating status, simplifying diagnosis in case of faults. The IL 9079 form factor is optimized for use in installation and industrial distributors, offering a compact, robust solution for industrial applications.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 400 / 230 V
Output contacts2 C/O contacts
Width35 mm
TypeIL 9079
Variant
Contact equipping2 changeover contacts
Nominal voltage3AC 230 / 400 V
Operate delay0,2 - 2 s
Reset value0,55 - 1,05 Un
Approvals and MarkingsCCC
VariantFür Netze mit Neutralleiter. Einstellbarer Rückfallwert


Product data sheet
Datasheet for Dold 0047842, EAN: 4030641478421

Questions & answers

What is the delivery time of Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S ?

The article Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0047842 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S always at the best possible price. We can give you a discount of 2% on Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0047842 IL9079.12/002 3AC230/400V,55-1,05UN undervoltage relay 0.2-2S we can offer you a price of 263,82 EUR per piece. The more you buy, the cheaper the article will be.
