Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring

Your rating:
Average rating
product review for Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring
( 4.5 / 5 ) 8 ratings

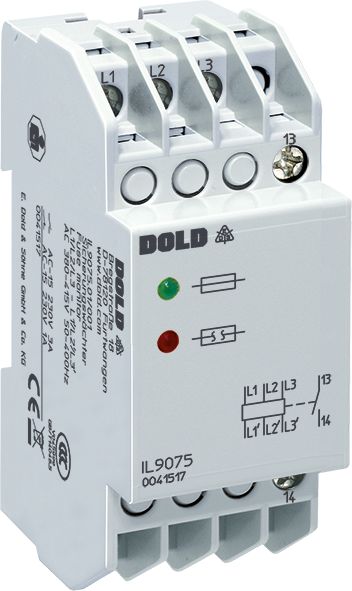

Dold 0046593
This image may differ from the desired article.
128,73 EUR
( 153,19 EUR incl. VAT )
≈ £107.75  |  ≈ $141.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1312825
Mfg Part No: 0046593
UPC/EAN: 4030641465933
Weight:0.142 kg
Type:IL9075.01/001 AC50...400HZ 220-240V
Graduated prices net
From piecesPrice per pieces
5127,76 EUR
10126,80 EUR
15125,83 EUR
20124,87 EUR

Product information for Dold 0046593:

The fuse monitor IL9075.01/001 AC50...400HZ 220-240V from Dold is a device for monitoring up to three fuses in three-phase networks. It enables early detection of blown fuses, even when the connected loads are switched off, thus preventing costly damage caused by undetected fault conditions. The device is designed for use in installation and industrial distribution systems and complies with the standard IEC/EN 60255-1. Monitoring is performed using the zero-current principle, in which the output relay is not activated in the event of a fault, and without memory function, meaning that the fault condition is not retained after resetting the device.

Applications

The fuse monitor is designed for monitoring fuses in three-phase networks up to 3 AC 690 V. It is suitable for all common fuse types and sizes and can be used regardless of the network's rotation direction. Typical applications include automatic disconnection and lockout of three-phase motors in the event of failure of one or more phase fuses, ensuring operational safety and system availability.

Functions and Features in Detail

The device features an output contact in the form of a normally open (1 NO) contact, which can be used to control auxiliary functions such as alarm systems or disconnection mechanisms. The operating voltage is AC 220–240 V at a frequency of 50–400 Hz. The measurement ranges are set for 3 AC 380–415 V (standard range) and up to 440 V maximum. Indication is provided via two LEDs: a green LED indicates intact fuses, while a red LED signals a fuse failure. Programming is done via terminals X1–X2 (for memory function and remote reset) and X3–X5 (for load current or zero-current principle). The cable length for programming terminals X3–X5 must not exceed 3 m.

Technology Explained Simply

The fuse monitor monitors the power supply before and after the fuses. In the event of a fuse failure, the device detects the absence of current flow and triggers the appropriate response. The internal resistance of the measurement paths is in the megohm range (over 2000 Ohm/V), ensuring compliance with touch voltage regulations, even if a fuse is defective or missing. Detection is also possible in unbalanced networks, under harmonic load, or with regenerative motors, increasing reliability in complex installations.

Compatibility and Accessories

The device is designed for use in installation distribution systems and conforms to form factor I with a depth of 59 mm and terminals located at the bottom. The width is 35 mm, allowing mounting in standard distribution boxes according to DIN 43880. It is compatible with various fuse types and sizes and can be used in three-phase networks up to 3 AC 690 V.

Mounting and Installation

Mounting is carried out in installation or industrial distribution boxes according to DIN 43880. The terminals are located at the bottom of the device, enabling easy integration into existing control systems. Cable connections are made via terminals L1, L2, L3 (before the fuses) and L1', L2', L3' (after the fuses). Programming of functions (memory function, remote reset, load current/zero-current principle) is done via terminals X1–X5. The maximum cable length for programming terminals is 3 m.

Operational Advantages

Early detection of fuse failures, even when loads are switched off, increases system availability. Reliable detection even in unbalanced or harmonically loaded networks, as well as with regenerative motors, ensures stable operation. The shorter response time compared to motor protection switches allows for faster reaction to fault conditions. The clear LED indication simplifies diagnosis and maintenance, enabling more efficient preventive measures.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.440 V
Output contacts1 NO contact, 2 C/O contacts
Standard measuring range3 AC 380 - 415 V
Width35 mm
TypeIL 9075
Variant
Contact equipping1 NO contact
Nominal voltageAC 220 - 240 V 50 - 400 Hz
Approvals and MarkingsCCC
VariantDe-energized on trip. Automatic reset


Product data sheet
Datasheet for Dold 0046593, EAN: 4030641465933

Questions & answers

What is the delivery time of Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring ?

The article Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0046593 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring always at the best possible price. We can give you a discount of 2% on Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0046593 IL9075.01/001 AC50...400Hz 220-240V fuse monitoring we can offer you a price of 127,76 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
