Dold 0045456 BD5935.48 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0045456 BD5935.48 DC24V emergency stop module
( 4.5 / 5 ) 22 ratings
Dold 0045456

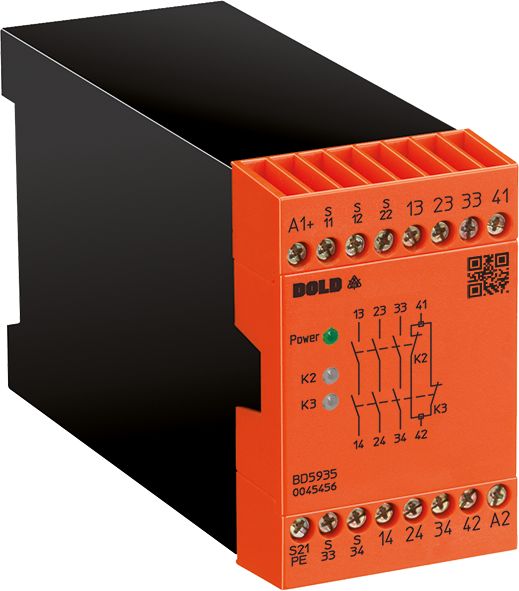

This image may differ from the desired article.
Dold 0045456Dold 0045456
390,32 EUR
( 464,48 EUR incl. VAT )
≈ £326.70  |  ≈ $428.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045456 BD5935.48 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:593144
Mfg Part No: 0045456
UPC/EAN: 4030641454562
Weight:0.475 kg
Type:BD5935.48DC24V
Graduated prices net
From piecesPrice per pieces
4375,68 EUR
8361,05 EUR
12346,41 EUR
16331,77 EUR

Product information for Dold 0045456:

The Dold BD5935.48DC24V is a not-out module of the SAFEMASTER series, designed for the safe interruption of safety circuits in industrial applications. It is particularly used for protecting personnel and machinery in systems with emergency stop buttons and safety doors. The device is designed for use in safety-oriented installations and meets the requirements for high safety integrity. The nominal voltage is DC 24 V, and the width of 45 mm allows for compact mounting in standard enclosures.

Applications
The module is used in installations where a safe and reliable interruption of the circuit is required in an emergency. Typical applications include machines with safety doors, where opening the door automatically stops operation, or emergency stop functions activated via a button. The function as a safety door monitor is explicitly intended, enabling the device to be used in safety-critical machine installations. The cross-short detection ensures that a short circuit between channels is detected and the safety state is maintained.

Functions and equipment in detail
The device features contact configuration with 3 closers and 1 opener, enabling flexible wiring in safety circuits. The contacts are gold-plated, ensuring reliable switching even under low loads, such as signals for PLC systems. The connection technology uses removable screw terminals, allowing for quick replacement of the device without complete rewiring. The connection cross-sections support up to 2 x 2.5 mm² stranded wire with ferrules according to DIN 46228-1/-2/-3/-4, providing broad compatibility with common cables. An operating status indicator with LEDs for channel 1 and 2 shows the current status of the module.

Technology explained clearly
The module is designed for single- or dual-channel wiring, making it suitable for use in both simple and redundant safety systems. The safety functions are certified according to international standards: it complies with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, representing the highest requirement for safety functions in mechanical installations. Additionally, it meets the requirements for SIL 3 according to IEC/EN 62061 and SIL 3 according to IEC/EN 61508, ensuring high safety integrity. The maximum thermal current is 10 A, defining the contact load capacity. An integrated overvoltage and short-circuit protection protects the device and connected components from damage.

Compatibility and accessories
The module is designed for use in safety-oriented installations and can be combined with other components of the SAFEMASTER program. The certifications TÜV, UKCA, CCC and recognition by UL-Recognized ensure usability in various markets. The connection technology with removable terminals allows for easy integration into existing control systems. It is designed for use in enclosures with a standard width of 45 mm.

Mounting and installation
Mounting is performed in standard enclosures with a width of 45 mm. The removable screw terminals simplify installation and maintenance, as the device can be replaced without removing the wiring. Wiring is carried out according to the circuit diagrams in the datasheet, supporting connection cross-sections up to 2.5 mm² stranded wire with ferrules. Device programming is done via the specified settings described in the datasheet.

Advantages in operation
The combination of high safety integrity, flexible contact configuration, and quick replacement via removable terminals makes the module a reliable solution in safety-critical installations. The integrated cross-short detection and operating status indicator enhance diagnostic capability during operation. Certifications according to international standards enable use in various regions and industries. The use in emergency stop and safety door applications is supported by the specific design of the device.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width45 mm
TypeBD 5935
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageDC 24 V
Approvals and MarkingsTÜV, UKCA, CCC


Product data sheet
Datasheet for Dold 0045456, EAN: 4030641454562

Questions & answers

What is the delivery time of Dold 0045456 BD5935.48 DC24V emergency stop module ?

The article Dold 0045456 BD5935.48 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0045456 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0045456 BD5935.48 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0045456 BD5935.48 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0045456 BD5935.48 DC24V emergency stop module we can offer you a price of 375,68 EUR per piece. The more you buy, the cheaper the article will be.
