Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor

Your rating:
Average rating
product review for Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor
( 4.3 / 5 ) 12 ratings

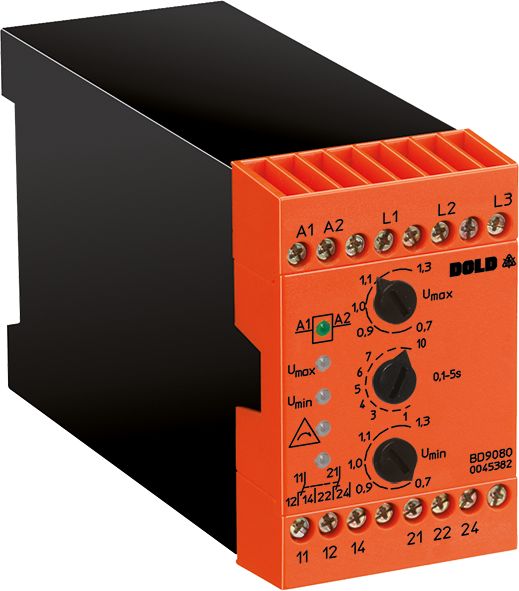

Dold 0045382
This image may differ from the desired article.
Dold 0045382Dold 0045382
399,56 EUR
( 475,48 EUR incl. VAT )
≈ £334.43  |  ≈ $439.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor
Datasheet:file_download Download
Lieske Part No.:857378
Mfg Part No: 0045382
UPC/EAN: 4030641453824
Weight:0.35 kg
Type:BD9080.123AC400VUHAC230V
Graduated prices net
From piecesPrice per pieces
4384,58 EUR
8369,59 EUR
12354,61 EUR
16339,63 EUR

Product information for Dold 0045382:

The phase monitor BD9080.123AC400VUHAC230V from Dold is an industrial monitoring switch for three-phase AC power networks. It is designed for continuous monitoring of voltage values, phase sequence, asymmetry, and power failure, enabling early response to disturbances in the power supply network. The device is intended for use in enclosures and complies with the standard IEC/EN 60255-1. It monitors a network with a nominal voltage of 3AC 400 V and can measure voltages up to 750 V. The auxiliary voltage is AC 230 V, with voltage ranges for the auxiliary voltage between 0.8 and 1.1 times the nominal voltage. The device operates on the standby current principle, where the output relay is not activated in the event of a fault. The response delay is adjustable between 0.1 and 5 seconds, allowing flexible adaptation to various applications.

Applications
The phase monitor is suitable for use in industrial plants, such as machine controls, pumps, fans, or production systems, where reliable power supply is critical. It is mounted in enclosures and monitors three-phase networks for under- and overvoltage, asymmetry, phase failure, and incorrect phase sequence. Early detection of disturbances enables preventive maintenance and prevents damage to connected devices. The application is in systems requiring continuous operational readiness, such as in manufacturing industry or energy supply sectors.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, used for signaling disturbances. The contact position is indicated by an LED, as well as the auxiliary voltage (A1/A2), overvoltage (U max.), undervoltage (U min.), and fault conditions such as asymmetry, incorrect phase sequence, or power failure. The LED indicators allow for quick visual diagnosis of the operating status. The response delay is adjustable via a rotary control, allowing the device's reaction time to be adapted to the specific requirements of the installation. The reset delay is also 0.1 to 5 seconds, ensuring stable signaling even during short-term voltage fluctuations.

Technology Explained Simply
The phase monitor measures the voltage values of the three phases (L1, L2, L3) and compares them with the set threshold values. The adjustment ranges lie between 0.7 and 1.3 times the nominal voltage, with the range limited to 0.8 to 1.1 times when using auxiliary voltage from the monitored network. Monitoring is performed via arithmetic mean calculation from multiple half-waves of the rectified phase voltages. Asymmetry detection occurs at deviations of ±8 to ±20 % from the response value, with the fault angle at approximately 120° ± 15°. The current consumption is approximately 0.5 mA per phase L1 and L2, and 0.8 mA for L3 at nominal voltage. The hysteresis is up to 5 % of the response value, preventing the device from switching uncontrollably due to minor fluctuations around the threshold.

Compatibility and Accessories
The device is designed for three-phase networks and can be operated with or without a neutral conductor. The auxiliary voltage can be drawn from the monitored network, simplifying installation. The switching capacity is rated for AC 15, with 2 A / AC 230 V for closing contacts and 1 A / AC 230 V for opening contacts. For direct current (DC 13), the switching capacity is 1 A / DC 24 V. The maximum short-circuit withstand requires a fuse with 4 A gG / gL. The device is designed for continuous operation and can be used at operating temperatures from -20 to +60 °C. The creepage and clearance distances correspond to pollution degree 2 with a rated impulse withstand voltage of 6 kV.

Mounting and Installation
The phase monitor is mounted in enclosures and requires a mounting width of 45 mm. The connection terminals are provided for phase voltages L1, L2, L3, as well as for auxiliary voltage A1/A2. The output contacts (11, 12, 14 and 21, 22, 24) are designed for connection to external signaling or switching devices. Mounting is done in an enclosure, with ambient temperature during operation allowed between -20 and +60 °C. The maximum operating altitude is 2000 m above sea level.

Advantages in Operation
By detecting voltage fluctuations, phase failure, or incorrect phase sequence early, the phase monitor enables preventive maintenance and prevents damage to connected devices. The LED indicators provide quick visual fault diagnosis. The adjustable response delay reduces false alarms during short-term disturbances. The device is designed for continuous operation and offers high operational reliability in industrial plants. The mechanical life is at least 50 million switching operations, and the electrical life at 1 A / AC 230 V is 250,000 switching operations. The switching frequency can reach up to 20 switching operations per second. The CCC certification is relevant for use in certain markets.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC 230 V
Contact equipping2 changeover contacts
Nominal voltage3AC 400 V
Release delay0,1 - 5 s
Approvals and MarkingsCCC
VariantDe-Energized on trip


Product data sheet
Datasheet for Dold 0045382, EAN: 4030641453824

Questions & answers

What is the delivery time of Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor ?

The article Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0045382 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor always at the best possible price. We can give you a discount of 2% on Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0045382 BD9080.12 3AC400V UH AC230V 0.1-5s phase monitor we can offer you a price of 384,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
