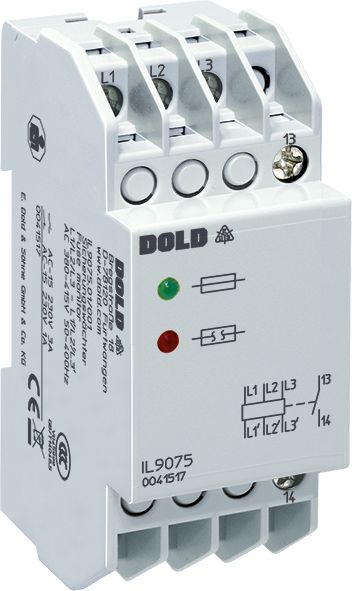

Dold 0045019 IL9075.01/001 AC50...400Hz 400-440V fuse monitoring

Your rating:
Average rating
product review for Dold 0045019 IL9075.01/001 AC50...400Hz 400-440V fuse monitoring
( 4.6 / 5 ) 8 ratings
Dold 0045019
This image may differ from the desired article.
128,73 EUR
( 153,19 EUR incl. VAT )
≈ £107.75  |  ≈ $141.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0045019 IL9075.01/001 AC50...400Hz 400-440V fuse monitoring
Datasheet:file_download Download
Lieske Part No.:1262559
Mfg Part No: 0045019
UPC/EAN: 4030641450199
Weight:0.142 kg
Type:IL9075.01/001 AC50...400HZ 400-440V
Graduated prices net
From piecesPrice per pieces
5127,76 EUR
10126,80 EUR
15125,83 EUR
20124,87 EUR

Product information for Dold 0045019:

The fuse monitor IL9075.01/001 AC50...400HZ 400-440V from Dold is a device for monitoring load fuses in three-phase networks. It is designed for the early detection of blown fuses, even when the connected loads are switched off, in order to avoid operational interruptions and damage to installations. The device is designed for use in industrial and installation distributors and complies with the standard IEC/EN 60255-1.

Applications

The fuse monitor is designed for monitoring up to three load fuses in three-phase networks. It is typically used in installations where availability and operational safety are of high importance, such as in the automatic switching off and switching lockout of three-phase motors. The application is in networks with a voltage up to 3 AC 690 V, with the device designed for the standard measurement range of 3 AC 380–415 V. The rated voltage is AC 400–440 V at a frequency of 50–400 Hz.

Functions and equipment in detail

The device operates on the residual current principle, in which the output relay is not activated in the event of a fault. It features a closing contact (1 NO) as the output contact. Monitoring is independent of the network rotation direction and is reliable even in asymmetric or harmonic-loaded networks, as well as with regenerative motors. The response time is shorter than that of motor protection switches. Indication is provided by two LEDs: a green LED indicates intact fuses, while a red LED indicates a fuse failure.

Technology explained simply

The fuse monitor monitors the voltage before and after the load fuses. In the event of a fuse failure, the voltage after the fuse is no longer transmitted, which is detected by the device. The internal resistance of the measurement paths is in the MOhm range (over 2000 Ohm/V), thus meeting the requirements for touch voltage. Programming of the operating current or residual current principle is done via terminals X3–X5. The cable length for this programming input must not exceed 3 m.

Compatibility and accessories

The device is suitable for all common fuse types and sizes. It is designed in the I form factor, with a mounting width of 35 mm and a mounting depth of 59 mm. The connection terminals are located at the bottom and are intended for installation and industrial distributors according to DIN 43880. The CCC certification is available.

Mounting and installation

Mounting is done in installation or industrial distributors. The terminals are located at the bottom, which facilitates integration into standard distributor constructions. De-energizing requires switching off the upstream main switch.

Advantages in operation

Early detection of fuse failures enables preventive maintenance and prevents costly damage. The operational safety and availability of the installation are increased. The reliability of monitoring even under difficult network conditions provides a stable foundation for operation. The device is rotation-direction independent and suitable for a wide range of application scenarios in industrial electrotechnics.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.440 V
Output contacts1 NO contact, 2 C/O contacts
Standard measuring range3 AC 380 - 415 V
Width35 mm
TypeIL 9075
Variant
Contact equipping1 NO contact
Nominal voltageAC 400 - 440 V 50 - 400 Hz
Approvals and MarkingsCCC
VariantDe-energized on trip. Automatic reset


Product data sheet
Datasheet for Dold 0045019, EAN: 4030641450199
