Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay

Your rating:
Average rating
product review for Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay
( 4.4 / 5 ) 10 ratings

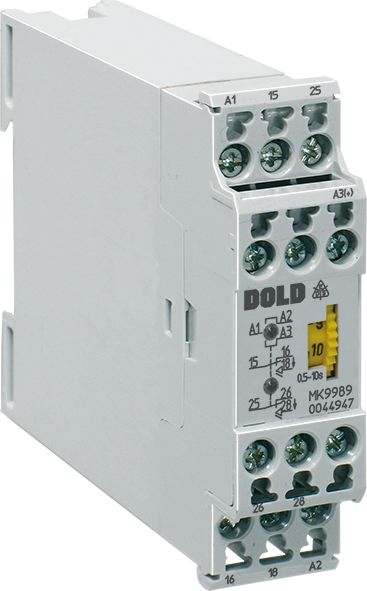

Dold 0044947
This image may differ from the desired article.
114,72 EUR
( 136,52 EUR incl. VAT )
≈ £96.02  |  ≈ $126.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay
Datasheet:file_download Download
Lieske Part No.:985154
Mfg Part No: 0044947
UPC/EAN: 4030641449476
Weight:0.16 kg
Type:MK9989AC/DC24V+AC220-240V0,5-10S
Graduated prices net
From piecesPrice per pieces
5113,86 EUR
10113,00 EUR
15112,14 EUR
20111,28 EUR

Product information for Dold 0044947:

The Dold wipe relay MK9989AC/DC24V+AC220-240V0,5-10S is an industrially usable on-delay wipe relay with a width of 22.5 mm, specifically designed for use in enclosures. It is used for time-controlled switching of electrical loads, where the switching function occurs after an adjustable delay time. The device features a dual-voltage design, enabling operation with a nominal voltage of AC/DC 24 V as well as AC 220–240 V. The time function is continuously adjustable within a range of 0.5 to 10 seconds, with adjustment performed on an absolute scale, ensuring precise and reproducible time control. The repeatability accuracy is less than ±0.5 % of the scale end value, making it suitable for applications requiring high precision.

Applications include the control of drives, lighting systems, pumps, or other electrical consumers where a time-delayed switching function is required. The relay is designed for use in industrial environments demanding high operational safety and reliability. The operating temperature ranges from -20 °C to +60 °C, allowing use even in climatically demanding installations. Storage is possible within a range of -25 °C to +70 °C.

Functions and equipment in detail include two on-delay wipers (changeover contacts) as output contacts, each providing one normally open and one normally closed contact. The contacts are made of AgSnO₂, a material known for its high switching durability and low wear. The rated operating voltage is AC 250 V, and the thermal current Ith is 5 A. The relay is designed for continuous operation and features a mechanical life of over 30 million switching operations. The electrical life is at least 500,000 switching operations at 3 A and AC 230 V. The permissible switching frequency is 6000 switching operations per hour.

Technology explained simply shows that the relay maintains a delay time after the operating voltage is switched on, before the contacts switch. The time delay is achieved by a mechanical wiper moving along a scale. Adjustment is done manually on the absolute scale, ensuring precise reproducibility. The drop-out voltage is 15 % of the nominal voltage, meaning the relay remains stable even with slight voltage fluctuations. Voltage influence values are ≤1 %, and temperature influence is ±0.1 % per Kelvin, ensuring high stability under varying operating conditions.

Compatibility and accessories include control via two-wire initiators, facilitating integration into existing control systems. The terminal clamps are designed for secure connections, and terminal markings follow the standard A1, A3(+), A2 for the operating voltage, and 15–18 and 21–24 for the output contacts. The enclosure protection rating is IP 40, and the terminals are IP 40, providing protection against touch and dust, but not against water or splashing water. The enclosure is made of a thermoplastic with V0 behavior according to UL Subject 94, indicating a high flame retardancy class.

Mounting and installation is carried out in standard enclosures with a width of 22.5 mm. Mounting is done via screw fastening, with vibration resistance according to IEC/EN 60068-2-6, with an amplitude of 0.35 mm and a frequency of 10 to 55 Hz. Climate resistance is specified as 20/060/0, highlighting suitability for industrial environments.

Operational advantages include high repeatability accuracy, robust construction, and simple adjustability. Integrated LED indicators signal operational readiness (upper LED) and activated contact position (lower LED), facilitating diagnostics during operation. Compliance with the standard IEC/EN 61812-1 ensures conformity with international standards for time relays. The overvoltage category III and insulation test voltage of 2.5 kV guarantee high electrical safety. EMC requirements according to IEC/EN 61000-4-2 to -4-6 are met, ensuring immunity against electromagnetic interference. Radio frequency interference suppression complies with limit class B according to EN 55011, which is relevant for use in industrial installations.

The device is designed for use in enclosures and meets requirements for reliability, safety, and ease of maintenance in industrial control systems. The combination of mechanical robustness, high accuracy, and simple handling makes it a suitable component for time-controlled applications in automation technology.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Fleeting on make
Width22,5 mm
TypeMK 9989
Variant
Contact equipping2 contacts fleeting on make (changeover),
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range0,5 - 10 s
Variant2 fleeting make


Product data sheet
Datasheet for Dold 0044947, EAN: 4030641449476

Questions & answers

What is the delivery time of Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay ?

The article Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0044947 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay always at the best possible price. We can give you a discount of 2% on Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0044947 MK9989 AC/DC24V+AC220-240V 0.5-10S wipe relay we can offer you a price of 113,86 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
