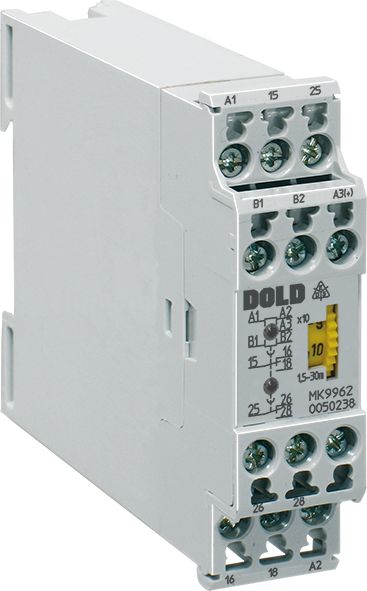

Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return

Your rating:
Average rating
product review for Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return
( 4.2 / 5 ) 45 ratings
Dold 0044933
This image may differ from the desired article.
126,23 EUR
( 150,21 EUR incl. VAT )
≈ £105.65  |  ≈ $138.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:821791
Mfg Part No: 0044933
UPC/EAN: 4030641449339
Weight:0.2 kg
Type:MK9962 AC/DC24V+AC220-240V 0,15-3S
Graduated prices net
From piecesPrice per pieces
5121,50 EUR
10116,76 EUR
15112,03 EUR
20107,30 EUR

Product information for Dold 0044933:

The Dold MK9962 is a delayed-release time relay of the MINITIMER series, designed for industrial control applications. It features a dual-voltage configuration with nominal voltages AC/DC 24 V and AC 220–240 V, enabling flexible use in various systems. The time function is delayed-release with control signal, meaning the relay energizes and closes the output contacts upon activation of the control signal. Once the control signal is removed, a time-controlled release behavior begins, during which the contacts return to their resting position after the set delay time has elapsed. The delay time is continuously adjustable via a rotary switch in the range of 0.15 to 3 seconds, with adjustment indicated on an absolute scale. The repeatability is ≤ ±1 %, ensuring high precision in repeated switching operations.

Applications
This time relay is suitable for time-dependent controls in industrial systems, for example, to delay switching operations for pumps, motors, or lighting systems. It is frequently used in enclosures where a compact design and clear signal indication are required. The device is intended for continuous operation, with an operating temperature range from -20 °C to +60 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Functions and Equipment in Detail
The device features two changeover contacts as output contacts, sufficient for controlling multiple loads. The contact operation is delayed, meaning the contact change occurs only after the set time has elapsed. The contacts are made of AgSnO₂, a material suitable for high switching life and low contact resistance. The rated operating voltage is AC 250 V, and the thermal current Ith is specified as 5 A. The electrical life at 5 A and AC 230 V is 500,000 switching operations, while the mechanical life is 30 million switching operations. The permissible switching frequency is 6000 switching operations per hour.

Technology Explained Simply
Control is performed via potential-free terminals B1 and B2. These are electrically connected to the voltage terminals A1–A3 and therefore require galvanic isolation if voltage is applied to A1–A3. The control signal is supplied via a potential-free contact, for example, from a pushbutton or another relay. The operating voltage is connected to terminals A1–A2 (AC 220–240 V) and A3–A2 (AC/DC 24 V). The minimum switching-on time is 20 ms, and the rearm time is approximately 5 ms. The voltage influence is ≤ ±0.5 %, and the temperature influence is < ±0.1 %/K, indicating high stability under varying operating conditions.

Compatibility and Accessories
The relay is designed for use in enclosures and complies with standard EN 61812-1. The housing design is intended for enclosure mounting, with a width of 22.5 mm. The connection terminals are clearly labeled: A1–A3 for operating voltage, B1–B2 for control input, and 15–18 and 25–26/28 for the two changeover contacts. Indication is provided by two LEDs: the upper LED lights up when the control contact is connected, and the lower LED indicates activation of the output relay. This enables easy fault diagnosis.

Mounting and Installation
Mounting is performed in standard enclosures with a width of 22.5 mm. The terminals are designed for secure connections, with control inputs B1–B2 to be operated potential-free. The connection terminals are clearly labeled to prevent incorrect connections. The operating voltage is connected to A1–A2 (AC 220–240 V) and A3–A2 (AC/DC 24 V). The delay time is adjusted via the continuous rotary switch, which is read on an absolute scale.

Operational Advantages
The MK9962 offers simple operation and clear signal indication via the two LEDs. The high repeatability and long contact life ensure reliable operation. The dual-voltage configuration increases flexibility when integrating into existing systems. Galvanic isolation of the control inputs is not provided; therefore, control must be potential-free, which must be considered during planning. EMC requirements are met, including immunity to electrostatic discharge, high-frequency radiation, and fast transients, ensuring reliability in industrial environments.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeMK 9962
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 V + AC 220 - 240 V
Time range0,15 - 3 s
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0044933, EAN: 4030641449339

Questions & answers

What is the delivery time of Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return ?

The article Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0044933 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0044933 MK9962 AC/DC24V+AC220-240V 0.15-3S time relay delayed return we can offer you a price of 121,50 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
