Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay

Your rating:
Average rating
product review for Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay
( 4.6 / 5 ) 26 ratings

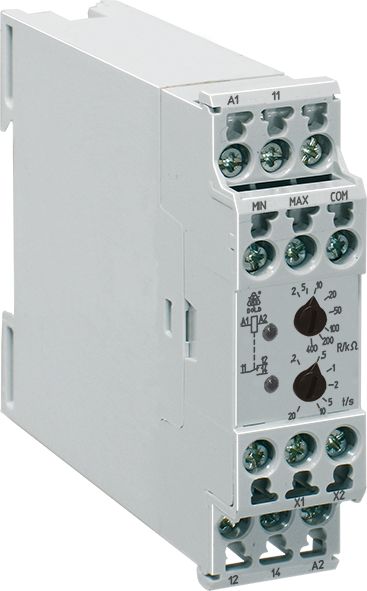

Dold 0044506
This image may differ from the desired article.
Dold 0044506Dold 0044506
169,19 EUR
( 201,34 EUR incl. VAT )
≈ £141.61  |  ≈ $185.94
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay
Datasheet:file_download Download
Lieske Part No.:1312554
Mfg Part No: 0044506
UPC/EAN: 4030641445065
Weight:0.175 kg
Type:MK9151.11 2-450K-OHM DC24V
Graduated prices net
From piecesPrice per pieces
5162,85 EUR
10156,50 EUR
15150,16 EUR
20143,81 EUR

Product information for Dold 0044506:

The Dold level relay MK9151.11 2-450K-OHM DC24V is an industrial device for monitoring the fill level of conductive liquids and powders. It is used for continuous measurement and control of liquid levels, for example to prevent overfilling or dry running in tanks. The device operates with a measurement range of 2 to 450 kΩ and is designed for an auxiliary voltage of DC 24 V. It features a changeover contact as output contact and is designed for installation in enclosures, with a width of 22.5 mm.

Level monitoring is the primary application of this relay. It enables monitoring of maximum and minimum fill levels, with the setpoint adjusted via a logarithmically scaled dial. The distinction between liquid and foam is possible due to the wide adjustment range. Applications range from simple 1-point control, where only one limit level (e.g. maximum level) is monitored, to 2-point control, where the level is maintained between a minimum and maximum value. In both cases, the reference electrode is connected at the lowest point of the tank and connected to terminal COM.

Functions and equipment in detail include the ability to program the device for either the operating current principle (without bridge) or the resting current principle (with bridge X1-X2 or X1-COM). The response and reset delay are adjustable from 0.2 to 20 seconds, allowing precise adaptation to the specific application. Galvanic isolation of the measurement circuit from the mains ensures high immunity to interference. Two LEDs indicate the operating status: a green LED lights up when the operating voltage is applied, and a yellow LED indicates activation of the output relay.

Technology explained simply is based on measuring the electrical resistance between the electrodes in the tank. The maximum cable length to the electrodes is 3000 meters, with the actual length depending on the set resistance range. For a measurement range of 2 to 450 kΩ, the maximum cable length is 3000 meters at a resistance of 5 kΩ. The measurement voltage is generated internally (approx. AC 10 V) and the measurement current is approximately AC 1.5 mA. The output power is approximately 1 W at DC 24 V. The device is specified according to IEC/EN 60255-1 and meets the requirements for electrical equipment for measurement and monitoring tasks.

Compatibility and accessories include use with all commercially available electrodes. The terminal blocks are designed for connecting the reference electrode (COM), the MIN and MAX electrodes, as well as the control input (X1) and output (X2). The changeover contacts (11, 12, 14) allow integration into existing control systems. Devices are also available in variants with tamper-proof transparent cover or secure isolation according to IEC/EN 61140 and IEC/EN 60947-1, meeting additional safety requirements.

Mounting and installation is carried out in enclosures. The width of 22.5 mm allows compact mounting in standard control panels. The electrodes are installed at the appropriate points in the tank according to the application, with the reference electrode positioned at the lowest point. Cable connections are made via the designated terminal blocks. The setpoint and delay times are adjusted directly on the device using the scale.

Advantages in operation include high immunity to interference, galvanic isolation, and flexible programmability. The adjustable delay prevents false alarms caused by short-term level fluctuations. Clear indication via LEDs simplifies diagnosis during operation. The device is designed for use in industrial environments and is suitable for applications such as monitoring mixing ratios of conductive liquids or detecting limit temperatures with PTC resistors.

Technical data
ClassificationFüllstandsüberwachung
Enclosure designSwitch cabinet
Measuring range max.450 kΩ
Output contacts1 C/O contact
Width22,5 mm
TypeMK 9151
Operate delayYes
Variant
Auxiliary voltageDC 24 V
Contact equipping1 changeover contact
Response value2 - 450 kOhm
VariantTime delay, when level rises over and drops under setting value


Product data sheet
Datasheet for Dold 0044506, EAN: 4030641445065

Questions & answers

What is the delivery time of Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay ?

The article Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0044506 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay always at the best possible price. We can give you a discount of 2% on Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0044506 MK9151.11 2-450 kOhm DC24V level relay we can offer you a price of 162,85 EUR per piece. The more you buy, the cheaper the article will be.
