Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module

Your rating:
Average rating
product review for Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module
( 4.6 / 5 ) 12 ratings

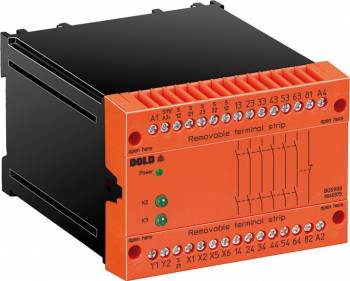

Dold 0043265
This image may differ from the desired article.
Dold 0043265Dold 0043265
628,79 EUR
( 748,26 EUR incl. VAT )
≈ £526.30  |  ≈ $691.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module
Datasheet:file_download Download
Lieske Part No.:437417
Mfg Part No: 0043265
UPC/EAN: 4030641432652
Weight:0.89 kg
Type:BO5988.61/324DC24V+AC230V
Graduated prices net
From piecesPrice per pieces
3605,21 EUR
6581,63 EUR
9558,05 EUR
12534,47 EUR

Product information for Dold 0043265:

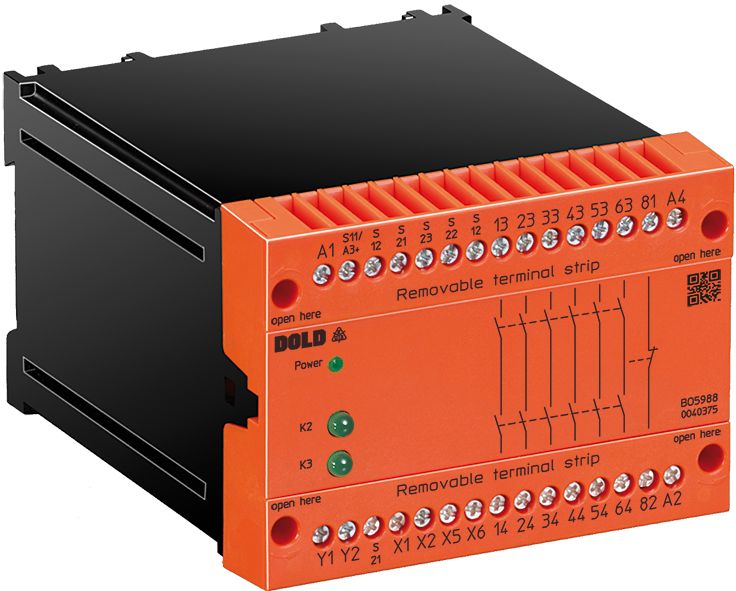

The Dold BO5988.61/324DC24V+AC230V is a safety relay from the BO 5988 series, specifically designed for use in emergency stop and safety circuits in industrial automation. It enables the safe shutdown of machines and systems in the event of an emergency stop actuation or hazardous situation, with functions designed in accordance with international safety standards. The device is configured as a dual-voltage version, with nominal voltages of DC 24 V and AC 230 V. The response delay for automatic restart is 0.5 seconds, enabling controlled reactivation. The width is 100 mm, allowing installation in standard control panels.

Applications
This safety relay is used in systems where protection of personnel and machinery is paramount. This includes emergency stop circuits, which safely shut down the machine upon activation of an emergency stop lever or button. It is also suitable for monitoring interlock guards, which deactivate the machine when opened. Applications are in industrial environments requiring high safety integrity, such as in manufacturing, packaging, or machinery with moving parts.

Functions and Features in Detail
The device features a contact configuration with 6 NO contacts and 1 NC contact, with the NC contact serving as a signaling contact. The output contacts are thermally rated for a maximum load of 10 A. Switching functions can be configured in single- or dual-channel wiring, enabling redundant safety monitoring. The integrated cross-circuit detection recognizes faults in the emergency stop control circuit, for example, a short circuit at a single-button switch. A feedback circuit (X1-X2) allows monitoring of external contactors to ensure they function correctly. Indication is provided via LED indicators for Channel 1, Channel 2, and power supply, visually signaling the operating status.

Technology Explained Simply
The safety relay operates according to principles of functional safety. It monitors input signals from emergency stop buttons and other safety components, and accordingly switches the outputs. The 0.5-second response delay during automatic restart prevents unintended immediate reactivation after a shutdown, which is required in certain applications. The integrated protection against short circuit and overvoltage safeguards the device and connected components. Removable screw terminals allow flexible and secure wiring. Connections can be made with stranded wires up to 2.5 mm² and ferrules according to DIN 46 228-1/-2/-3/-4.

Compatibility and Accessories
The device is designed for use in safety control systems designed in accordance with EN ISO 13849-1 and IEC/EN 62061. It is compatible with other safety components such as emergency stop buttons, interlock guards, and contactors. Certifications TÜV, UKCA, and UL-Recognized confirm compliance with European and international safety requirements. Applications are in systems requiring Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL) 3 according to IEC/EN 62061.

Mounting and Installation
Mounting is in standard control panels with a width of 100 mm. Removable screw terminals facilitate installation and maintenance. Wiring is carried out according to the circuit diagrams in the datasheet, with clearly labeled terminals. LED indicators support commissioning and troubleshooting.

Operational Advantages
The safety relay offers high reliability through redundant switching functions and integrated fault detection. Visual indication of operating states simplifies diagnosis. The dual-voltage configuration enables use in systems with different supply voltages. The integrated protection against short circuit and overvoltage increases the device’s lifespan and safety. Compliance with international standards ensures usability in various markets.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 6 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width100 mm
TypeBO 5988
Cross fault detectionYes
Variant
Contact equipping6 NO contacts, 1 NC contact as signal contact
Nominal voltageDC 24 V + AC 230 V
Time rangewithout
Approvals and MarkingsTÜV, UKCA
VariantDual voltage model 0.5 s operate delay with automatic restart


Product data sheet
Datasheet for Dold 0043265, EAN: 4030641432652

Questions & answers

What is the delivery time of Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module ?

The article Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0043265 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0043265 BO5988.61/324 DC24V+AC230V emergency stop module we can offer you a price of 605,21 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
