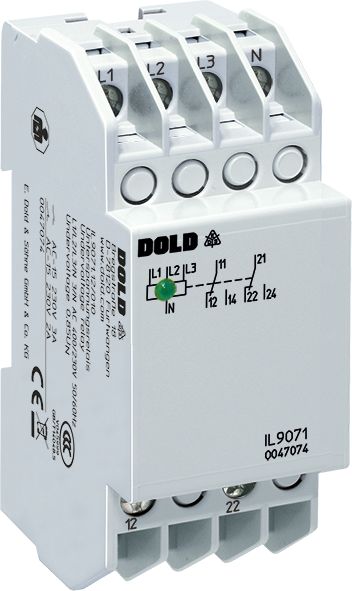

Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay
|
253,15 EUR |
|||||||||||
|
( 301,25 EUR incl. VAT ) ≈ £211.89 | ≈ $278.21 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 798298 | ||||||||||
| Mfg Part No: | 0042021 | ||||||||||
| UPC/EAN: | 4030641420215 | ||||||||||
| Weight: | 0.134 kg | ||||||||||
| Type: | IL9071.12 3/N AC400/230V 0,7UN4% | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0042021:
Applications
This relay is suitable for monitoring three-phase networks in industrial plants, buildings, and installation distributor enclosures. It serves for early detection of network disturbances such as undervoltage, phase failure, or neutral conductor break, to prevent damage to connected devices. Monitoring is particularly important in installations where single-phase consumers are connected to the neutral conductor, as a neutral conductor break can cause dangerous voltage imbalances. Applications also include switching on safety lighting in accordance with DIN VDE 0108. The device is available for use in rooms according to DIN VDE 0100-710 (medically used rooms), which is an optional variant.
Functions and Equipment in Detail
The IL9071.12 features two changeover contacts (2 C/O contacts) with a contact material of AgNi. The switching voltage is AC 250 V. The switching capacity according to AC 15 (IEC/EN 60947-5-1) is 3 A / AC 230 V for closing contacts and 2 A / AC 230 V for opening contacts. The electrical life expectancy is approximately 500,000 switching cycles at 1 A and AC 230 V. The output contacts are designed such that they are not activated in the event of a fault (standby current principle), providing higher safety. The LED indicator lights green when the network is fault-free (contacts 11-14 and 21-24 closed). The indicator serves as a visual confirmation of the operating status. The device design is intended for installation distributors, with a width of 35 mm and a depth of 61 mm. The connection terminals are located at the bottom, enabling installation in distributor enclosures according to DIN 43880. The devices are equipped with safe separation between the measuring circuit and contacts in accordance with IEC/EN 61140 and IEC/EN 60947-1.
Technology Explained Simply
The relay measures voltage in a three-phase network with neutral conductor and detects deviations from nominal voltage. If undervoltage occurs below 0.7 times nominal voltage (with 4 % hysteresis), the output relay is not activated, meaning the contacts remain open in the event of a fault. The LED indicator visually signals the operating status. Phase sequence is arbitrary, allowing adaptation to various network configurations. The devices are suitable for use in both single-phase and three-phase networks, with terminals L1, L2, and L3 to be bridged in single-phase connection. Overload capability is AC 440 V at all measuring inputs for at least one hour.
Compatibility and Accessories
The IL9071.12 is designed for use in installation and industrial distributor enclosures. It is compatible with network voltages of 3/N AC 400/230 V and can also be used at other voltages in the range of 3/N AC 100/58 V to 500/290 V. The devices are available in two designs: IL 9071 (61 mm depth, terminals at bottom) and SL 9071 (98 mm depth, terminals at top). The SL variant is intended for enclosures with mounting plate and cable duct. The devices are available according to DIN VDE 0100-710 for medically used rooms, which is an optional variant. The devices are equipped with an LED indicator that visually signals the operating status.
Mounting and Installation
Mounting is carried out in installation or industrial distributor enclosures according to DIN 43880. The width is 35 mm, the depth is 61 mm. The connection terminals are located at the bottom. In single-phase connection, terminals L1, L2, and L3 must be bridged. Phase sequence is arbitrary, enabling flexible installation. The devices are designed for use in distributor enclosures, with the SL variant intended for enclosures with mounting plate and cable duct.
Advantages in Operation
The IL9071.12 enables early detection of network disturbances, allowing preventive maintenance and preventing damage to connected devices. Operational safety is increased, as the device does not activate the output relay in the event of faults (standby current principle). The LED indicator visually signals the operating status. Phase sequence is arbitrary, enabling flexible installation. The devices are suitable for use in both single-phase and three-phase networks, with terminals L1, L2, and L3 to be bridged in single-phase connection. Overload capability is AC 440 V at all measuring inputs for at least one hour.
| Technical data | |
| 1- / 3-phase | 1, 3 |
| Auxiliary voltage | Without |
| Enclosure design | Distribution board |
| Nominal voltage max. | 3/N AC 500 / 290 V |
| Output contacts | 2 C/O contacts |
| Width | 35 mm |
| Type | IL 9071 |
| Operate delay | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | 3/N AC 400 / 230 V |
| Response value | 0,7 Un 4% |
| Time delay | without |
| Approvals and Markings | CCC |
| Variant | With neutral connection. Without asymmetry detection. Without neutral conductor monitoring. Without time delay |
Questions & answers
What is the delivery time of Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay ?
The article Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0042021 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0042021 IL9071.12 3/N AC400/230V 0,7UN4% undervoltage relay we can offer you a price of 243,66 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
