Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module

Your rating:
Average rating
product review for Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module
( 4.6 / 5 ) 5 ratings

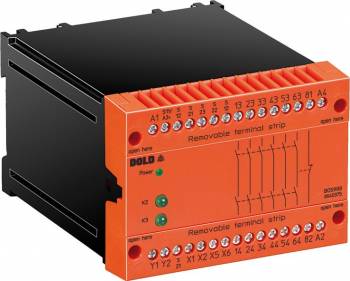

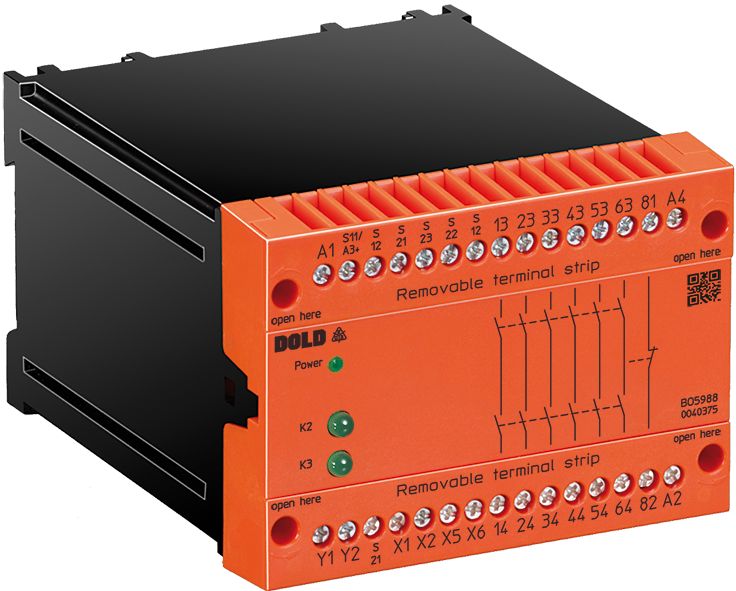

Dold 0041510
This image may differ from the desired article.
Dold 0041510Dold 0041510
607,40 EUR
( 722,81 EUR incl. VAT )
≈ £508.39  |  ≈ $667.53
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module
Datasheet:file_download Download
Lieske Part No.:1312984
Mfg Part No: 0041510
UPC/EAN: 4030641415105
Weight:0.89 kg
Type:BO5988.47/124 DC24V+AC230V 0,3-3S
Graduated prices net
From piecesPrice per pieces
3602,84 EUR
6598,29 EUR
9593,73 EUR
12589,18 EUR

Product information for Dold 0041510:

The Dold safety relay BO5988.47/124 DC24V+AC230V 0,3-3S is an emergency stop module for use in industrial safety systems. It serves the protective function for personnel and machinery, particularly in emergency stop circuits and for monitoring sliding safety grilles. The device is designed as a safety relay and complies with the requirements of standards EN ISO 13849-1 and IEC/EN 62061. It is designed for use in safety-critical applications where high reliability and fault detection are required.

Applications
This module is used in industrial automation, where it monitors the functions of emergency stop switches and controls safety-relevant switching operations. It is particularly suitable for installations where machine shutdown in hazardous situations is critical, such as in manufacturing, packaging technology, or machine building. The integrated cross-connection detection at the single-button enables detection of incorrect connections in the control circuit, increasing safety.

Functions and equipment in detail
The device features contact configuration with 3 normally closed contacts, one delayed-closing normally closed contact, and one normally open contact as a signaling contact. The delayed closing function enables controlled shutdown, with the time adjustable in the range of 0.3 to 3 seconds. The maximum number of output contacts is 6 normally closed and 1 normally open, with a voltage specification of AC 250 V. The connection technology uses removable screw terminals, suitable for wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46 228-1/-2/-3). The width is 100 mm, making it suitable for standard control panels.

Technology explained simply
The safety relay operates with a dual-voltage design, supporting both DC 24 V and AC 230 V. During the time delay phase, no external power supply is required, increasing the device’s independence from external power sources. The integrated cross-connection detection checks the control circuit for incorrect connections to prevent unwanted switching operations. LED indicators for channel 1, channel 2, and power status enable visual monitoring of the operating state. An integrated short-circuit and overvoltage protection safeguards the device against damage from electrical disturbances.

Compatibility and accessories
The module is designed for 1- or 2-channel wiring, with the 2-channel variant offering a higher safety level. It is equipped with a feedback circuit X1-X2 for monitoring external contactors. The connection terminals are removable, facilitating installation and maintenance. The devices are designed for industrial environments and comply with certifications TÜV, UKCA, and UL-Recognized.

Mounting and installation
Mounting is done in standard control panels with a width of 100 mm. The removable screw terminals allow for flexible and secure wiring. The connection terminals are designed for the specified wire cross-sections, with the use of ferrules and plastic sleeves DIN 46 228-1/-2/-3/-4 recommended. Installation is carried out according to the technical data and instructions in the operating manual.

Advantages in operation
The safety relay offers high reliability by meeting safety standards PL e and Category 4 according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061. The integrated cross-connection detection and feedback circuit increase the safety of the system. The LED indicators enable quick diagnosis of the operating state. The dual-voltage design and delayed closing function provide flexibility in application. The device is designed for use in safety-critical systems, where flawless operation is essential.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 6 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width100 mm
TypeBO 5988
Cross fault detectionYes
Variant
Contact equipping3 NO contacts, 1 NO contact delayed, 1 NC contact as signal contact
Nominal voltageDC 24 V + AC 230 V
Time range0,3 - 3 s
Approvals and MarkingsTÜV, UKCA
VariantAuxiliary supply is not nesseary during elapse of time: tv adjustable. Dual voltage model


Product data sheet
Datasheet for Dold 0041510, EAN: 4030641415105

Questions & answers

What is the delivery time of Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module ?

The article Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0041510 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0041510 BO5988.47/124 DC24V+AC230V 0.3-3S emergency stop module we can offer you a price of 602,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
