Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module

Your rating:
Average rating
product review for Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module
( 4.6 / 5 ) 10 ratings

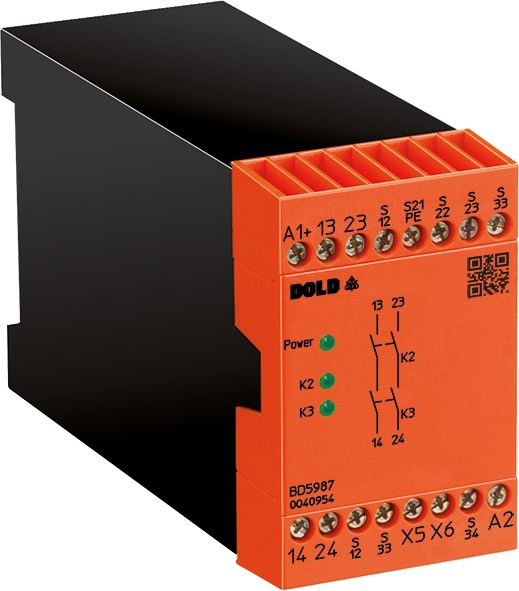

Dold 0041172
This image may differ from the desired article.
Dold 0041172Dold 0041172
388,69 EUR
( 462,54 EUR incl. VAT )
≈ £325.33  |  ≈ $427.17
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module
Datasheet:file_download Download
Lieske Part No.:1312552
Mfg Part No: 0041172
UPC/EAN: 4030641411725
Weight:0.475 kg
Type:BD5987.03/001 AC50/60HZ 230V
Graduated prices net
From piecesPrice per pieces
4374,11 EUR
8359,54 EUR
12344,96 EUR
16330,39 EUR

Product information for Dold 0041172:

The Dold safety relay BD5987.03/001 AC50/60HZ 230V is an emergency stop module for use in safety-oriented systems. It is designed for the safe interruption of circuits, particularly in applications with emergency stop buttons and safety doors. The device is designed for use in industrial environments where the safety of personnel and machinery is paramount. It complies with the requirements of standards EN ISO 13849-1 and IEC/EN 62061 and is therefore suitable for use in safety-critical systems.

Applications

The BD5987.03/001 is used in systems requiring safe shutdown in hazardous situations. This includes, for example, machines with safety doors, where the relay functions as a safety door monitor, or systems with emergency stop functions. It can also be used in elevator installations in accordance with EN 81-20/-50, where it meets the requirements of Directive 2014/33/EU. The 1- or 2-channel wiring allows for flexible integration into existing safety architectures.

Functions and Features in Detail

The device features 2 NO contacts and 1 alarm contact, which are used to control safety functions. The contacts are gold-plated, ensuring reliable switching even under light loads, for example for signals to a PLC. The cross-short detection in the emergency stop control circuit enables detection of short circuits to avoid false alarms or hazardous conditions. The integrated LED indicator for channel 1/2 and power status supports diagnosis and maintenance. The device also offers overvoltage and short-circuit protection to enhance reliability.

Technology Explained Simply

The BD5987.03/001 operates at a rated voltage of AC 230 V 50/60 Hz and is designed for a maximum thermal current load of 10 A. The width is 45 mm, enabling compact mounting in standard control panels. The connection technology uses screw terminals, suitable for stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm² with ferrules and plastic collars according to DIN 46 228-1/-2/-3/-4. The safety functions are certified according to Category 4 / PL e per EN ISO 13849-1 and SIL 3 per IEC/EN 62061, ensuring high safety performance. The automatic enable function or activation via an enable button can be selected depending on the application.

Compatibility and Accessories

The device is suitable for use in 1- or 2-channel safety systems. It can be used as an electronic safety circuit to replace a safety switch according to EN 81-20, section 5.11.2.2. The certifications TÜV and UL-Recognized confirm compliance with international safety standards. Use as a safety door monitor is explicitly intended.

Mounting and Installation

Mounting is carried out in standard control panels with a width of 45 mm. The screw terminals allow for secure and reliable connection of the wires. The terminals are designed for the specified wire cross-sections. Installation is carried out according to the technical specifications in the datasheet, with correct wiring of the safety functions being crucial.

Operational Advantages

The BD5987.03/001 offers high safety performance through certification to Category 4 / PL e and SIL 3. The integrated cross-short detection and LED indicators facilitate diagnosis and maintenance. The gold-plated contacts ensure reliable switching even under low loads. The flexible 1- or 2-channel wiring allows adaptation to different requirements. Compliance with standards EN ISO 13849-1 and IEC/EN 62061 ensures suitability for use in safety-critical applications.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionScrew terminals
Output contacts max.2 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width45 mm
TypeBD 5987
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts, 1 signal contact
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV
VariantWith 2 NO contacts, 1 signalling contact AC/DC 0,1 ... 1 A / 10 ...120 V


Product data sheet
Datasheet for Dold 0041172, EAN: 4030641411725

Questions & answers

What is the delivery time of Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module ?

The article Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0041172 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module always at the best possible price. We can give you a discount of 2% on Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0041172 BD5987.03/001 AC 50/60 Hz 230 V NOT-AUS-Module we can offer you a price of 374,11 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
