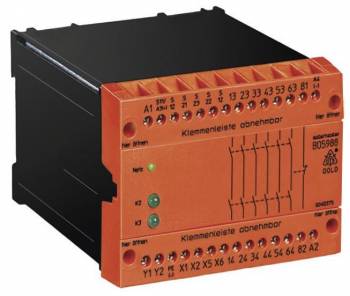

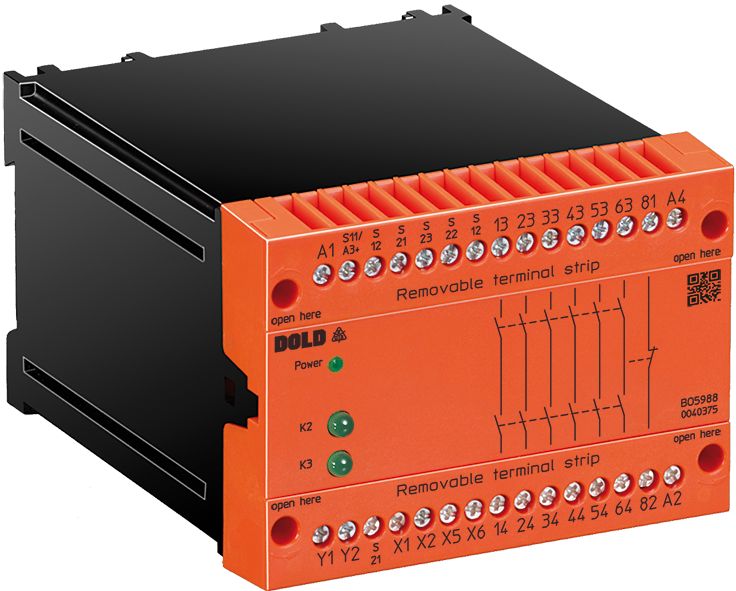

Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module
|
628,79 EUR |
|||||||||||
|
( 748,26 EUR incl. VAT ) ≈ £526.30 | ≈ $691.04 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312982 | ||||||||||
| Mfg Part No: | 0040375 | ||||||||||
| UPC/EAN: | 4030641403751 | ||||||||||
| Weight: | 0.89 kg | ||||||||||
| Type: | BO5988.61/024 DC24V+AC230V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0040375:
Applications
This safety relay is used in systems where personnel and machine safety are paramount. Typical applications include monitoring sliding safety guards, emergency stop functions, and safeguarding motion sequences in production systems. The integrated cross-connection detection enables recognition of incorrect connections in the control circuit, increasing the reliability of the circuit. The feedback circuits X1-X2 are used to monitor external contactors to ensure they are operating correctly.
Functions and Equipment in Detail
The device features contact configuration with up to 6 normally open (NO) contacts and 1 normally closed (NC) contact as a signaling contact. The output contacts are rated for a maximum thermal current load of 10 A. Connections are made via removable screw terminals, enabling flexible and secure connections. The terminals are suitable for stranded wires with a cross-section up to 2.5 mm², and also allow the use of ferrules and plastic insulators according to DIN 46 228-1/-2/-3/-4. Integrated LED indicators show the operating status of channels 1 and 2 as well as the power supply.
Technology Explained Simply
The safety relay BO5988.61/024 is designed for 1- or 2-channel wiring, allowing flexible use in different safety concepts. The integrated cross-connection detection monitors the control circuit for unauthorized connections to prevent malfunctions. The integrated short-circuit and overvoltage protection safeguards the device against damage from electrical disturbances. The operating voltage can be selected between 24 V DC and 230 V AC depending on application requirements, facilitating integration into existing systems.
Compatibility and Accessories
The device is designed for use in safety systems according to standards EN ISO 13849-1 and IEC/EN 62061. It complies with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL) 3 according to IEC/EN 62061. TÜV and UKCA certifications confirm compliance with European safety requirements. The device is UL-Recognized, enabling recognition in the USA and other markets. It can be combined with other components of the BO 5988 series, particularly variants featuring delayed reset function or automatic start function.
Mounting and Installation
Mounting is done in standard control panels with a width of 100 mm. The removable screw terminals facilitate wiring and maintenance. The connection terminals are designed for stranded wires up to 2.5 mm², and also allow the use of ferrules and plastic insulators according to DIN 46 228-1/-2/-3/-4. The LED indicators support commissioning and troubleshooting by visually indicating the operating status.
Advantages in Operation
The safety relay offers high reliability through integrated protection functions such as cross-connection detection, short-circuit and overvoltage protection. The dual-voltage variant enables flexible integration into existing systems. The LED indicators simplify diagnostics and maintenance. Compliance with international safety standards ensures suitability for various markets. The width of 100 mm allows compact mounting in control panels.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL-Recognized |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 1 NC contact, 6 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 10 A |
| Width | 100 mm |
| Type | BO 5988 |
| Cross fault detection | |
| Variant | |
| Contact equipping | 6 NO contacts, 1 NC contact as signal contact |
| Nominal voltage | DC 24 V + AC 230 V |
| Time range | without |
| Approvals and Markings | TÜV, UKCA |
| Variant | Without time delay. Dual voltage model |
Questions & answers
What is the delivery time of Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module ?
The article Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0040375 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0040375 BO5988.61/024 DC24V+AC230V emergency stop module we can offer you a price of 605,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
