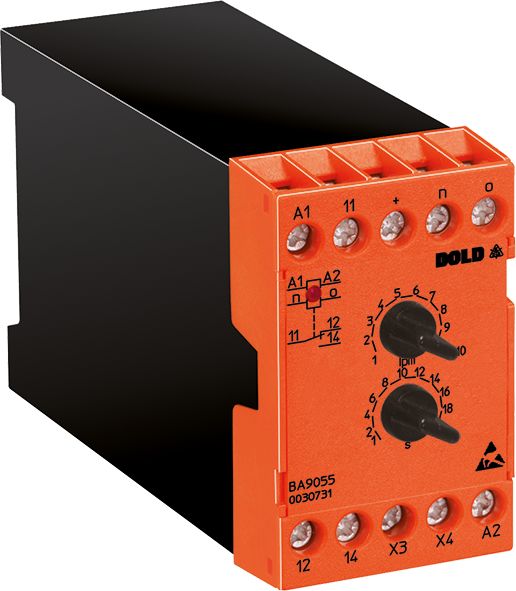

Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor

Your rating:
Average rating
product review for Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor
( 4.3 / 5 ) 6 ratings
Dold 0039962
This image may differ from the desired article.
278,85 EUR
( 331,83 EUR incl. VAT )
≈ £233.40  |  ≈ $306.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor
Datasheet:file_download Download
Lieske Part No.:1313025
Mfg Part No: 0039962
UPC/EAN: 4030641399627
Weight:0.44 kg
Type:BA9055/110 AC230V 10-100IPM
Graduated prices net
From piecesPrice per pieces
4276,76 EUR
8274,67 EUR
12272,58 EUR
16270,48 EUR

Product information for Dold 0039962:

The Dold speed monitor BA9055/110 AC230V 10-100IPM is an industrial monitoring switch for continuous control of the speed of mechanical drives. It serves to protect machines and produced goods, as well as for speed-dependent switching in production processes. The device processes pulse signals from proximity switches and monitors standstill, under-speed, and over-speed conditions. The operating principle is based on frequency comparison: the speed is converted into a proportional frequency via a proximity switch and compared with a reference frequency generated within the device, which can be adjusted using a setting knob. The output contacts consist of a changeover contact, which is energized or de-energized depending on the type of monitoring (under-speed or over-speed). The auxiliary voltage is AC 230 V, and the device is designed for use in enclosures. The width is 45 mm, enabling compact mounting in standard control panels.

Applications

The speed monitor is used in systems where maintaining a specific speed is critical for functionality or safety. Typical applications include conveyor belts, conveyor systems, or production plants where multiple drives must operate at coordinated speeds. Monitoring prevents damage to machines or products that could result from unintended standstills, excessively low, or excessively high speeds. The device is designed for industrial environments where reliable and low-maintenance monitoring is required.

Functions and Equipment in Detail

The device detects standstill, under-speed, and over-speed conditions. The adjustable range is between 10 and 100 pulses per minute (IPM), with a maximum measurement range up to 10,000 IPM. The response delay is activated, meaning the device incorporates a short delay when responding to filter out brief disturbances. Over-speed monitoring operates on the no-load current principle, while standstill and under-speed monitoring operate on the load current principle. The hysteresis is 2% of the set response value, ensuring stable switching behavior. The start-up bypass is not available in this variant, so the device becomes active immediately after power supply is applied. The power supply for the proximity switch is integrated within the device and provides DC 24 V with a maximum current of 40 mA. The input is designed for pnp sensors.

Technology Explained Simply

The technology of the speed monitor is based on the principle of frequency comparison. A proximity switch generates pulses proportional to the speed. These pulses are compared within the device with an internal, adjustable reference frequency. In under-speed monitoring, the output relay is energized when the measured frequency falls below the reference frequency. In over-speed monitoring, the relay is energized when the measured frequency exceeds the reference frequency. The switching delay is very short, as the device does not operate in an integrated mode. The response time can be calculated using the formula tv = 60 / (n × z), where n is the speed in rpm and z is the number of teeth or cams on the measuring wheel. LEDs indicate the status of the auxiliary voltage and output contacts.

Compatibility and Accessories

The speed monitor is compatible with proximity switches featuring a pnp output. The integrated power supply for the sensor (DC 24 V, max. 40 mA) allows direct connection without requiring an additional power source. The device is specified according to IEC/EN 60255-1 and carries the UKCA mark. It is designed for use in enclosures and fits standard 35-mm rails. Terminal markings include power supply (A1, A2), input (n), programming terminals (X3, X4), and output contacts (11, 12, 14). The terminals are designed for secure and reliable connections.

Mounting and Installation

Mounting is done in an enclosure on a 35-mm rail. The width of 45 mm allows for compact placement. The terminals are clearly labeled: A1 and A2 for auxiliary voltage (AC 230 V), n for the input from the proximity switch, X3 and X4 as programming terminals, and 11, 12, 14 for the output contacts (changeover). The power supply for the proximity switch is integrated, so no additional supply is required. The response value is adjusted using a rotary knob on the device. The start-up bypass is not available in this variant, so no bridge connection between terminals X3 and X4 is required.

Advantages in Operation

The speed monitor provides reliable and simple speed monitoring in industrial systems. The adjustable response frequency allows application-specific adaptation. The integrated power supply for the proximity switch reduces the number of required external components. Clear indication via LEDs simplifies diagnostics during operation. The device is designed for use in enclosures and complies with IEC/EN 60255-1 and the UKCA mark. The compact design (45 mm width) allows flexible installation in existing control systems. Monitoring of standstill, under-speed, and over-speed protects machines and products from damage caused by unwanted operating conditions.

Technical data
ClassificationDrehzahlüberwachung
Enclosure designSwitch cabinet
Measuring range max.10000 IPM
Output contacts1 C/O contact
Width45 mm
TypeBA 9055
Operate delayYes
Variant
Auxiliary voltageAC 230 V
Contact equipping1 changeover contact
Setting range10 - 100 IPM
Start up delayWithout
Approvals and MarkingsUKCA
VariantWithout start up delay time. Standstill and underspeed monitoring in open circuit operation. Overspeed monitoring in closed circuit operation


Product data sheet
Datasheet for Dold 0039962, EAN: 4030641399627

Questions & answers

What is the delivery time of Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor ?

The article Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0039962 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor always at the best possible price. We can give you a discount of 2% on Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0039962 BA9055/110 AC230V 10-100IPM speed monitor we can offer you a price of 276,76 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
