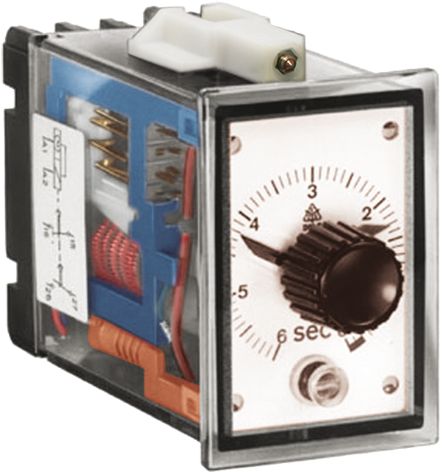

Dold 0033930 EC7610.22 AC 50/60 Hz 230 V 2–60 M time relay delayed operation

Your rating:
Average rating
product review for Dold 0033930 EC7610.22 AC 50/60 Hz 230 V 2–60 M time relay delayed operation
( 4.5 / 5 ) 11 ratings
Dold 0033930
This image may differ from the desired article.
344,85 EUR
( 410,37 EUR incl. VAT )
≈ £288.64  |  ≈ $378.99
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0033930 EC7610.22 AC 50/60 Hz 230 V 2–60 M time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1583542
Mfg Part No: 0033930
UPC/EAN: 4030641339302
Weight:0.405 kg
Type:EC7610.22 AC50/60HZ 230V 2-60M
Graduated prices net
From piecesPrice per pieces
4339,68 EUR
8334,50 EUR
12329,33 EUR
16324,16 EUR

Product information for Dold 0033930:

The Dold time relay EC7610.22 is an on-delay industrial time relay for front panel mounting, designed for a rated voltage of AC 230 V and a frequency of 50/60 Hz. It is used for time-delayed control of electrical devices and system components, for example, to account for motor start-up behavior or for sequential activation of switching operations. The delay time can be continuously adjusted within a range of 2 to 60 minutes, with adjustment performed via a black pointer on an absolute scale. The time progression is indicated by a red pointer on the device scale, visually displaying the progress of the delay time.

Applications
This device is designed for industrial control tasks requiring precise, time-controlled activation of loads. Typical applications include control of pumps, fans, lighting systems, or other electrical consumers where immediate switching is not desired. The on-delay function ensures that the output contacts only switch after the set delay time has elapsed, enabling controlled commissioning of system components.

Functions and Features in Detail
The time relay features contact configuration with one delayed-closer, one delayed-opener, and one instantaneous closer. The instantaneous contacts switch immediately when input voltage is applied, while the delayed contacts switch only after the set time has elapsed. Repeatability is ≤ ± 0.5 % of the scale end value, with an accuracy of ≤ ± 1 % applicable for the range up to 6 seconds. The reset time is < 150 ms, enabling rapid reset after power-off.

Technical Explanation
The time control is purely mechanical, ensuring high reliability and low maintenance requirements. The delay time is adjusted via a continuously variable rotary switch mounted directly on the front panel. The red pointer time indication allows visual monitoring of the switching process. The contacts are made of AgNi with a gold plating of 0.2 μm, ensuring high contact stability and corrosion resistance. The rated operating voltage of the contacts is AC 250 V, and the device is designed for continuous operation.

Compatibility and Accessories
The device is designed for use in enclosures and control systems supporting front panel mounting with a width of 48 mm. It is compatible with other devices from the MINTIMER series by Dold, such as models AA 7610 and EF 7610, which feature different widths and contact configurations. The rated power consumption is 5 VA, and the voltage range coverage is 0.8 to 1.1 times the rated voltage. The frequency range coverage is ± 5 % of the rated frequency.

Mounting and Installation
Mounting is performed via front panel installation in standard control panels. The front surface measures 48 mm in width and 72 mm in height. Electrical connections are made via terminals A1-A2 for input voltage and contact pairs 15-16, 27-28, and 31-32 for output contacts. The switching capacity according to AC 15 is 3 A at AC 230 V, with an electrical life of at least 100,000 switching cycles at 3 A and AC 230 V. The mechanical life exceeds 30 million switching cycles or 15,000 operating hours.

Operational Advantages
The time relay offers a wide adjustment range of 2 to 60 minutes, simple and precise adjustment via the rotary control, and high repeatability. The purely mechanical time control ensures robust and low-maintenance operation. The time progression indicator enables visual monitoring of the switching process. The device is designed for industrial environments, with an operating temperature range of -20 °C to +55 °C and a storage temperature range of -20 °C to +65 °C. The operating altitude is limited to a maximum of 2000 m above sea level. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge, high-frequency radiation, and fast transients. Radio frequency interference suppression complies with Class B limits according to EN 55011.

Technical data
Enclosure designFront panel mounting
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width48 mm
TypeEC 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact
Nominal voltageAC 230 V
Time range2 - 60 min


Product data sheet
Datasheet for Dold 0033930, EAN: 4030641339302
