Dold 0033897 IK8701.12 DC24V switching relay

Your rating:
Average rating
product review for Dold 0033897 IK8701.12 DC24V switching relay
( 4.3 / 5 ) 12 ratings
Dold 0033897

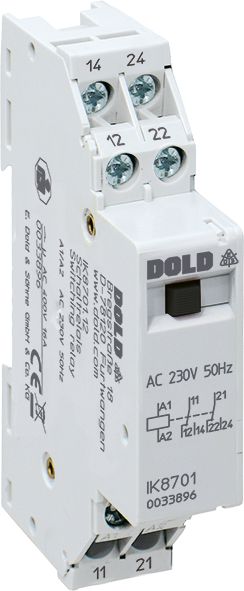

This image may differ from the desired article.
Dold 0033897Dold 0033897
59,04 EUR
( 70,26 EUR incl. VAT )
≈ £49.42  |  ≈ $64.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0033897 IK8701.12 DC24V switching relay
Datasheet:file_download Download
Lieske Part No.:906670
Mfg Part No: 0033897
UPC/EAN: 4030641338978
Weight:0.11 kg
Type:IK8701.12 DC24V
Graduated prices net
From piecesPrice per pieces
656,83 EUR
1254,61 EUR
2452,40 EUR
3650,18 EUR

Product information for Dold 0033897:

The Dold switching relay IK8701.12 DC24V is an installation distributor for industrial control applications, specifically designed for use in systems operating with direct current. It serves as an input or output coupling relay, for example, for controlling PLC systems or for switching loads controlled via a PLC. The device features a contact configuration with 2 changeover contacts and is rated for a nominal voltage of DC 24 V. The width is 17.5 mm, making it suitable for use in standard installation distributor boxes. The construction complies with standard EN 60947-5-1, which defines requirements for switching devices used in control systems and switchgear.

Applications
This relay is designed for use in industrial control systems, particularly in installations where lamp loads need to be switched. It can be used as an input coupling relay to forward signals from sensors or other devices to a PLC, or as an output coupling relay to switch PLC-controlled loads. The contact configuration with 2 changeover contacts allows for flexible switching configurations, for example, for controlling motors, heaters, or lighting units. Use in systems operating with direct current, especially at DC 24 V, is typical for industrial automation systems.

Functions and equipment in detail
The device features a manual operation button on the front, which serves both for manual activation of the contacts and for visual indication of the switching position. When the relay is energized, the button is pushed in; when de-energized, it is flush with the front edge of the housing. This function allows for easy checking of the operating status without additional measuring instruments. The contacts are actuated via a toggle armature with a plunger; when the excitation voltage drops, the armature is returned to its resting position by a spring. The maximum thermal current rating (Ith) is 16 A, ensuring high load capacity under continuous operation.

Technology explained simply
The relay coil is connected to DC 24 V via terminals A1+ and A2+. The protective circuit at the coil input protects the device against reverse polarity and acts as a freewheeling diode to suppress switching surges when switching inductive loads. The contacts are designed for switching operations and can handle loads up to 16 A thermally. The standard contact gap is 3 mm, ensuring reliable switching performance even under high switching cycles. The contact configuration with 2 changeover contacts allows for parallel control of multiple loads or the implementation of switching circuits with feedback.

Compatibility and accessories
The relay is designed for use in standard installation distributor boxes and fits into widths of 17.5 mm. It is compatible with 2-wire initiators, with an allowable residual current of ≤ 3 mA. Control is achieved via terminals A1+ and A2+, where polarity is fixed for DC devices. The use of parallel compensation, for example for HQ lamps, is possible, with a maximum compensation capacitance of 100 μF. The contact configuration may include up to 4 changeover contacts depending on the variant, with the variant described here featuring 2 changeover contacts.

Mounting and installation
The device is installed into an installation distributor, with the width of 17.5 mm enabling mounting in standard distributor boxes. The terminals are clearly labeled (A1+, A2+ for the coil, 11, 12, 14, etc. for contacts), allowing for unambiguous assignment. Mounting is done by snapping into the corresponding rail of the distributor. The manual operation button allows for easy testing of the switching function before and after commissioning.

Advantages in operation
The relay offers high reliability for industrial switching operations, supported by the protective circuit at the coil input and the high thermal current rating. The integrated switching position indicator and the manual operation button facilitate maintenance and troubleshooting. Compatibility with 2-wire initiators and the possibility of parallel compensation extend the range of applications. The construction in accordance with EN 60947-5-1 ensures compliance with the required safety and functional requirements for control technology.

Technical data
Enclosure designDistribution board
Output contacts max.2 C/O contacts
Thermal current Ith max.16 A
Width17,5 mm
TypeIK 8701
Initiator triggeringYes
Suppressor circuit on the coil inputYes
Variant
Contact equipping2 changeover contacts
Nominal voltageDC 24 V


Product data sheet
Datasheet for Dold 0033897, EAN: 4030641338978

Questions & answers

What is the delivery time of Dold 0033897 IK8701.12 DC24V switching relay ?

The article Dold 0033897 IK8701.12 DC24V switching relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0033897 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0033897 IK8701.12 DC24V switching relay always at the best possible price. We can give you a discount of 2% on Dold 0033897 IK8701.12 DC24V switching relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0033897 IK8701.12 DC24V switching relay we can offer you a price of 56,83 EUR per piece. The more you buy, the cheaper the article will be.
