Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay

Your rating:
Average rating
product review for Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay
( 4.9 / 5 ) 8 ratings

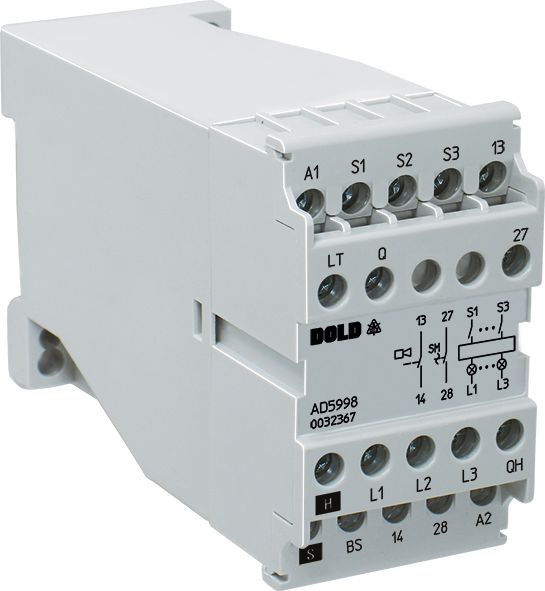

Dold 0032367
This image may differ from the desired article.
Dold 0032367Dold 0032367
351,58 EUR
( 418,38 EUR incl. VAT )
≈ £294.27  |  ≈ $386.39
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay
Datasheet:file_download Download
Lieske Part No.:885738
Mfg Part No: 0032367
UPC/EAN: 4030641323677
Weight:0.405 kg
Type:AD5998AC50/60HZ230V
Graduated prices net
From piecesPrice per pieces
4338,40 EUR
8325,21 EUR
12312,03 EUR
16298,84 EUR

Product information for Dold 0032367:

The Dold fault indicator relay AD5998AC50/60HZ230V is an industrial control device for the display and processing of fault messages in plants and buildings. It serves as a base unit for an expandable fault monitoring system designed as a new value indicator according to DIN 19235. The device is mounted in enclosures and has a width of 45 mm, making it suitable for standard control panels. The rated voltage is AC 230 V at a rated frequency of 50/60 Hz, with the operating principle based on the current flow principle – meaning the device responds to current flow during operation, not to interruptions.

Applications

The AD5998 is used in industrial monitoring technology to visually and acoustically indicate faults in machines, plants, or buildings. It is designed for continuous operation and is suitable for applications requiring rapid detection and acknowledgment of errors. Integration into larger systems is achieved via expansion units, enabling the number of fault input channels to be increased from 3 to up to 303.

Functions and Equipment in Detail

The device features three fault input channels (S1–S3), each monitoring a fault message. A light indicator can be connected for each message. Additionally, there are button terminals for acknowledging light indicators, for acknowledging horns, and for a lamp test. These functions enable targeted and controlled feedback to the operator. The device has two relay outputs: one for the collective alarm (terminals 27/28) and one for the sound alarm (terminals 13/14). The outputs are rated up to AC 230 V 3 A for the collective alarm and 2 A for the sound alarm. For higher switching capacities, a contactor must be inserted.

Technology Explained Simply

The current flow principle means the device activates when current is flowing – in contrast to relays that respond to current interruption. The fault input channels detect impulses with a minimum duration of 100 ms. Acknowledgment is triggered by an impulse lasting more than 200 ms. Power supply is via AC 230 V, with a rated consumption of 6 VA. The operating temperature range is from -20 °C to +60 °C, and storage is also possible within this range. The operating altitude is limited to a maximum of 2000 m above sea level.

Compatibility and Accessories

The AD5998 can be combined with the expansion unit AD5992, which provides six additional fault input channels. This allows system scaling to process up to 303 inputs. Expansion is achieved via a serial bus connection, with standardized terminal designations and connection options. The devices are designed for mounting on a DIN rail (DIN-EN 60715).

Mounting and Installation

Mounting is carried out in enclosures on a DIN rail. Connections are made via flat terminals with self-lifting connection washers, suitable for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule). The tightening torque is 0.8 Nm. Terminal labeling follows EN 50005. The devices are designed for use in industrial environments, with enclosure protection rating IP 40 and terminal protection rating IP 40 according to IEC/EN 60529.

Advantages in Operation

The system provides a clear, structured display of faults with the option for targeted acknowledgment. Expandability allows flexible adaptation to growing requirements. The integrated relay outputs for collective alarm and sound alarm reduce the need for additional components. Compliance with DIN 19235 ensures compatibility with existing monitoring systems. EMC requirements (e.g., ESD, HF radiation, fast transients) are met according to IEC/EN 61000-4-2 to -4-5, ensuring reliability in electromagnetically demanding environments.

Technical data
Alarm inputs3
Alarm inputs extendable up to303
Enclosure designSwitch cabinet
Operating principleEnergized on trip
Width45 mm
TypeAD 5998
Optional buzzerYes
Variant
Nominal voltageAC 230 V


Product data sheet
Datasheet for Dold 0032367, EAN: 4030641323677

Questions & answers

What is the delivery time of Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay ?

The article Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0032367 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay always at the best possible price. We can give you a discount of 2% on Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0032367 AD5998 AC 50/60 Hz 230 V surge relay we can offer you a price of 338,40 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
