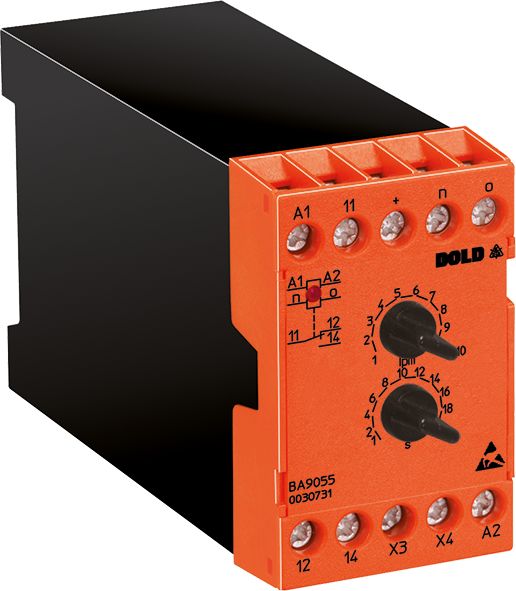

Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor

Your rating:
Average rating
product review for Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor
( 4.5 / 5 ) 8 ratings
Dold 0030731
This image may differ from the desired article.
309,70 EUR
( 368,54 EUR incl. VAT )
≈ £259.22  |  ≈ $340.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor
Datasheet:file_download Download
Lieske Part No.:1313026
Mfg Part No: 0030731
UPC/EAN: 4030641307318
Weight:0.44 kg
Type:BA9055 AC230V 10-100IPM 1-20S
Graduated prices net
From piecesPrice per pieces
4307,38 EUR
8305,05 EUR
12302,73 EUR
16300,41 EUR

Product information for Dold 0030731:

The Dold speed monitor BA9055 AC230V 10-100IPM 1-20S is an industrial monitoring switch for continuous control of the rotational speed of mechanical drives. It serves as a protective function for machines and produced goods, as well as for speed-dependent switching in production processes. The device processes pulse signals from proximity switches and monitors standstill, under-speed, and over-speed conditions. The operating principle is based on frequency comparison: the rotational speed is converted via a proximity switch into a proportional frequency and compared with a reference frequency generated within the device and adjustable via a setting knob. When deviations from the set speed occur, the output relay is accordingly energized or de-energized.

Applications

The speed monitor BA9055 is particularly suitable for installations with conveyor belts, conveyor systems, or in production environments with multiple interdependent drives. It is used where failure to maintain the specified speed could cause damage to machines or products. Monitoring is performed using the no-load current principle for standstill and under-speed, and the load current principle for over-speed, with functions activated according to application configuration.

Functions and Equipment in Detail

The device features an adjustable start-up bypass time of 1 to 20 seconds, which is activated by default. This function ensures that the output relay remains energized during the start-up phase for the set duration, preventing false alarms during machine start-up. The start-up bypass is implemented by default via a bridge between terminals X3 and X4, which can be removed if required. The adjustable range is between 10 and 100 pulses per minute (IPM), with a maximum measurement range up to 10,000 IPM. The hysteresis is 2 % of the set threshold value, ensuring stable switching behavior during minor speed fluctuations.

Technology Explained Simply

Speed monitors operate on the principle of frequency comparison. A proximity switch converts mechanical rotation into electrical pulses, which are then converted into a frequency. This frequency is compared with an internal reference signal. If the frequency falls below (under-speed) or exceeds (over-speed) the set value, the output relay is switched accordingly. The switching delay is very short, as the device does not have an integrated time delay. The power supply for the proximity switch is integrated within the device and provides a DC voltage of 24 V with a maximum current of 40 mA. The input is designed for pnp sensors.

Compatibility and Accessories

The speed monitor BA9055 is designed for use with proximity switches featuring a pnp output. The auxiliary voltage is AC 230 V, with a voltage tolerance between 0.8 and 1.1 times the nominal voltage. The output contacts consist of a changeover contact (1 C/O contact), suitable for controlling auxiliary relays, indicator lights, or other switching devices. The device class corresponds to the standard IEC/EN 60255-1, applicable to electrical equipment in measurement and control technology. The UKCA approval is indicated, enabling use in the United Kingdom.

Mounting and Installation

The device is designed for enclosure mounting and has a width of 45 mm, making it suitable for standard control panels. The connection terminals are clearly labeled: A1 and A2 for auxiliary voltage, X3 and X4 for the start-up bypass programming terminals, and 11, 12, 14 for the output changeover contact. An LED indicates the status of the auxiliary voltage, while a second LED shows the switching state of the output relay. Adjustment is performed via a rotary knob on the device, allowing setting of the threshold value within the range of 10 to 100 IPM.

Operational Advantages

The simple and clear device adjustment enables quick commissioning. The integrated start-up bypass prevents false alarms during machine start-up. The robust construction and compliance with the IEC/EN 60255-1 standard ensure reliable performance in industrial environments. The combination of standstill, under-speed, and over-speed monitoring in a single device reduces the number of required components and simplifies circuit diagram planning. The output contacts are designed for use in industrial control systems and provide clear indication of the operating status.

Technical data
ClassificationDrehzahlüberwachung
Enclosure designSwitch cabinet
Measuring range max.10000 IPM
Output contacts1 C/O contact
Width45 mm
TypeBA 9055
Operate delayYes
Variant
Auxiliary voltageAC 230 V
Contact equipping1 changeover contact
Setting range10 - 100 IPM
Start up delay1 - 20 s
Approvals and MarkingsUKCA
VariantWith start up delay time. Standstill and underspeed monitoring in closed circuit operation. Overspeed monitoring in open circuit operation


Product data sheet
Datasheet for Dold 0030731, EAN: 4030641307318

Questions & answers

What is the delivery time of Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor ?

The article Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0030731 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor always at the best possible price. We can give you a discount of 2% on Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0030731 BA9055 AC230V 10-100IPM 1-20S speed monitor we can offer you a price of 307,38 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
