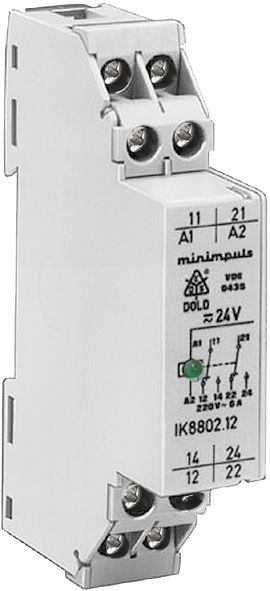

Dold 0012142 IK8802.12 AC/DC24V coupling relay
|
80,74 EUR |
|||||||||||
|
( 96,08 EUR incl. VAT ) ≈ £67.26 | ≈ $88.57 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 182052 | ||||||||||
| Mfg Part No: | 0012142 | ||||||||||
| UPC/EAN: | 4030641121426 | ||||||||||
| Weight: | 0.068 kg | ||||||||||
| Type: | IK8802.12AC/DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0012142:
Applications
The coupling relay IK8802.12AC/DC24V is used in systems where a control signal (e.g. from a PLC, sensor or switch) is to switch a load (e.g. motor, heater, light) via a galvanically isolated circuit. It is particularly suitable for applications in automation technology, building technology, machine construction and industrial controls. The function of potential isolation protects the control level from disturbances originating from the power level and enables the use of different voltage levels. The LED indicator (available only for AC/DC 24 V) signals the energized state of the relay, which is helpful during commissioning and maintenance.
Functions and equipment in detail
The relay features a contact configuration with 2 changeover contacts, each capable of functioning as a make and break contact. The operating and release time is less than 10 ms, enabling rapid response to control signals. The electrical life expectancy is 250,000 switching operations per changeover contact at 3 A and AC 230 V, and 50,000 switching operations for two changeover contacts. The mechanical life expectancy exceeds 50 million switching operations, indicating high robustness. The permissible switching frequency is 3000 switching operations per hour. The switching capacity is defined according to AC 15 (for alternating current) and DC 13 (for direct current), with maximum switching currents of 3 A at AC 230 V and 1 A at DC 24 V.
Technology explained simply
The relay operates with an electromagnetic drive: when the control voltage (AC/DC 24 V) is applied, the armature moves, causing the contacts to switch. The potential isolation is achieved through galvanic separation between the control and load circuits, preventing disturbances and voltage spikes from the power level from affecting the control. The LED indicator lights up when the relay is energized, allowing visual verification of the operating state. The DIN rail mounting enables quick and secure installation in standard enclosures. The terminals are designed for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule), with a tightening torque of 0.8 Nm.
Compatibility and accessories
The relay is suitable for use in systems with rated voltages of AC/DC 12 V, AC/DC 24 V and AC/DC 230 V. It complies with the standards IEC/EN 61810-1 and IEC/EN 60947-5-1, which define requirements for relays and switching devices. The switching function is available for low loads (0.1–60 V, 1–300 mA), although the variant IK8802.12AC/DC24V is not specifically designed for low loads. The maximum fuse rating is 6 A gG/gL, defining the short-circuit resistance. The enclosure protection rating is IP 40, and the terminals are rated IP 20, suitable for use in enclosed enclosures.
Mounting and installation
Mounting is done via a DIN rail (DIN 35 mm) in accordance with IEC/EN 60715. The terminals are equipped with self-lifting connection washers, enabling secure and quick connections. Wire connections are made via flat terminals, with tightening torques strictly adhered to (0.8 Nm). The operating temperature range is from -20 °C to +55 °C, and the storage temperature range is from -40 °C to +80 °C. The operating altitude is limited to 2000 m above sea level.
Advantages in operation
The coupling relay IK8802.12AC/DC24V offers high reliability due to its long service life and robust construction. Galvanic isolation increases safety and reduces interference. The LED indicator simplifies diagnostics. The compact design (17.5 mm width) allows dense mounting in enclosures. Compliance with standards IEC/EN 61810-1 and IEC/EN 60947-5-1 ensures suitability for professional installations. The switching function is suitable for a wide range of loads, with the maximum thermal current rating of 10 A (2 x 5 A) sufficient for most applications.
| Technical data | |
| Enclosure design | Distribution board |
| Output contacts max. | 2 C/O contacts |
| Thermal current Ith max. | 10 A |
| Width | 17,5 mm |
| Type | IK 8802 |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | AC/DC 24 V |
Questions & answers
What is the delivery time of Dold 0012142 IK8802.12 AC/DC24V coupling relay ?
The article Dold 0012142 IK8802.12 AC/DC24V coupling relay is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0012142 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0012142 IK8802.12 AC/DC24V coupling relay always at the best possible price. We can give you a discount of 2% on Dold 0012142 IK8802.12 AC/DC24V coupling relay if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0012142 IK8802.12 AC/DC24V coupling relay we can offer you a price of 77,71 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
