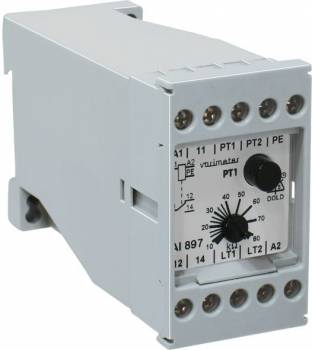

Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor
|
327,29 EUR |
|||||||||||
|
( 389,48 EUR incl. VAT ) ≈ £273.94 | ≈ $359.69 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 887807 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 0001039 | ||||||||||
| UPC/EAN: | 4030641010393 | ||||||||||
| Weight: | 0.245 kg | ||||||||||
| Type: | AI897.07AC45-400HZ230V50K-OHM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0001039:
Applications
The insulation monitor is used in electrical installations where high insulation integrity is required to avoid short circuits, sparking, or dangerous touch voltages. Typical applications include pump stations, heating systems, industrial machines, or installations in high-humidity environments, where insulation may be impaired by moisture or contamination. The device is suitable for operating frequencies between 45 and 400 Hz, making it usable in a wide range of installations, including those with frequency converters.
Functions and Equipment in Detail
The AI897.07AC45-400HZ230V50K-OHM monitors insulation resistance in an electrical network and compares it with a set threshold value. If this value is undershot, a signal is triggered, for example activating a warning light or alarm. The setting is adjusted via a potentiometer, which defines the threshold value for insulation resistance. The built-in resistance is 50 kOhm, which affects the measurement accuracy and reliability of the monitoring. The device is designed for operation at a voltage of 230 V, making it suitable for standard networks in Europe.
Technology Explained Simply
The insulation monitor operates on the principle of resistance measurement. It measures the electrical resistance between the conductors and the protective earth (PE) or grounding point. A high resistance indicates intact insulation, while a low resistance indicates insulation degradation or a fault. The measurement is continuous, allowing a warning to be triggered before a fault occurs. The frequency range of 45 to 400 Hz enables use in installations with variable frequency, such as those with frequency converters. The operating voltage of 230 V is standard in most industrial and commercial installations in Europe.
Compatibility and Accessories
The device is designed for use in alternating current installations and is compatible with standard network voltages of 230 V at 50 Hz. It can be integrated into existing control systems, provided the electrical parameters match. Exact mounting and integration must follow the technical specifications of the respective system manufacturer.
Mounting and Installation
Mounting is carried out in a suitable enclosure or distribution unit. The device is designed for mounting on a screw or terminal strip. The connection terminals are designed for connection with cables according to the rated voltage and current. Installation requires compliance with applicable VDE and EN standards, as well as safety regulations for electrical installations.
Advantages in Operation
Continuous monitoring of insulation quality enables early detection of insulation defects, increasing the safety of the installation and reducing the risk of fires or electrical accidents. The simple operation via a potentiometer for threshold setting facilitates adaptation to different requirements. The high frequency range of 45 to 400 Hz makes the device flexible for use, even in installations with frequency converters. The operating voltage of 230 V is widely used in industry, simplifying integration into existing systems.
| General | |
| Manufacturer | Dold |
| Product type | insulation monitor |
| Operating voltage | 230 V |
| Frequency range | 45-400 Hz |
| Insulation resistance | 50 kOhm |
Questions & answers
What is the delivery time of Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor ?
The article Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0001039 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor always at the best possible price. We can give you a discount of 2% on Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0001039 AI 897.07 AC 45-400Hz 230V 50kOhm insulation monitor we can offer you a price of 315,02 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
