Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay

Your rating:
Average rating
product review for Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay
( 5 / 5 ) 2 ratings

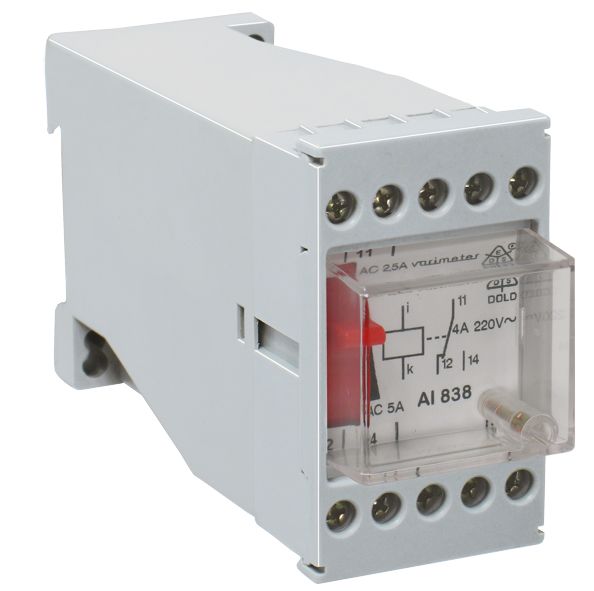

Dold 0000877
This image may differ from the desired article.
286,96 EUR
( 341,48 EUR incl. VAT )
≈ £240.19  |  ≈ $315.37
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay
Datasheet:file_download Download
Lieske Part No.:100226
Mfg Part No: 0000877
UPC/EAN: 4030641008772
Weight:0.625 kg
Type:AI 838 AC50/60HZ 8-16A
Graduated prices net
From piecesPrice per pieces
4274,05 EUR
8261,13 EUR
12248,22 EUR
16235,31 EUR

Product information for Dold 0000877:

The Dold overcurrent relay AI 838 AC50/60HZ 8-16A is a single-phase measuring relay for current monitoring in industrial enclosures. It is designed for continuous monitoring of alternating current circuits in the range of 8 to 16 A at 50/60 Hz and responds as soon as the set pickup value is exceeded. The relay scale is adjusted to the pickup value, so the device activates when this value is reached. It returns to its resting position as soon as the current falls below the drop-out value, which is calculated by multiplying the pickup value by the drop-out ratio (hysteresis). This function enables reliable and drop-out-stable signaling in case of overloads.

Applications
This relay is suitable for use in industrial systems such as machine controls, drive technology, or power distribution systems. It is mounted in enclosures and serves protective and monitoring functions, for example, in monitoring motors, transformers, or other electrical consumers. The direct measurement in the range of 8 to 16 A makes it particularly suitable for applications with medium current levels.

Functions and Equipment in Detail
The device features an adjustable pickup value screw that can be set continuously. Adjustment is performed from the inside, ensuring precise and secure calibration. The contact configuration includes one changeover contact (1 C/O contact), which is used for signal transmission to external devices such as alarm systems or controls. The switching delay is approximately 100 ms, which allows suppression of short current surges. The electrical life expectancy is up to 5 million switching operations, indicating high operational reliability.

Technology Explained Simply
The relay operates without auxiliary voltage, meaning it is directly powered from the monitored circuit. The measurement range shift due to different lead lengths is described in the datasheet, with values based on a lead having a resistance of approximately 0.5 mΩ. Internal resistances vary depending on the measurement range and are in the range of 0.00822 Ω for the 8–16 A range. Repeatability is ≤ ±2 % for alternating current and ≤15 % for direct current. Overload capability is defined for continuous operation up to 12 A at a factor of 1.0 x scale end value and for 16 A at 1.2 x scale end value. For short-term operation (1 second), the relay can be loaded up to 2.0 x scale end value.

Compatibility and Accessories
For currents above 16 A, the measurement range can be extended by inserting a current transformer. For example, a current transformer with a secondary rated current of 5 A (e.g., type KSW 73 from Ritz Instrument Transformers GmbH) can be used. For direct current applications, a parallel connection of a shunt resistor is required. The rated power consumption is below 18 VA for alternating current. Rated current values for shunts are listed in the datasheet, with specifications applying to a shunt of 150 mV.

Mounting and Installation
The device is designed for installation in enclosures and has a width of 45 mm. Mounting is done in standard switchboards with appropriate fastening options. The connection terminals are clearly labeled: i, k for the current measurement input and 11, 12, 14 for the changeover contact. Installation must follow the technical specifications in the datasheet, taking into account lead length and resistance.

Operational Advantages
The relay offers high operational reliability through the adjustable pickup value screw and stable hysteresis. Its ability to operate without auxiliary voltage reduces installation complexity. The long electrical life and high switching durability make it a reliable component in industrial applications. Compliance with the standard IEC/EN 60255-1 ensures adherence to international standards for measuring instruments.

Approvals and Markings
The device complies with the standard IEC/EN 60255-1. Approvals and markings are listed in the datasheet, with information based on the technical status at the time of publication. Technical improvements and modifications may be made at any time.

Functional Safety
Functional safety is ensured by the adjustable pickup value screw and stable hysteresis. The ability to operate without auxiliary voltage reduces installation complexity. The long electrical life and high switching durability make it a reliable component in industrial applications.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Width45 mm
TypeAI 838
Variant
Contact equipping1 changeover contact
Measuring rangeAC 50/60 Hz 8 - 16 A


Product data sheet
Datasheet for Dold 0000877, EAN: 4030641008772

Questions & answers

What is the delivery time of Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay?

The article Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0000877 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay always at the best possible price. We can give you a discount of 2% on Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0000877 AI 838 AC50/60Hz 8-16A overcurrent relay we can offer you a price of 274,05 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
