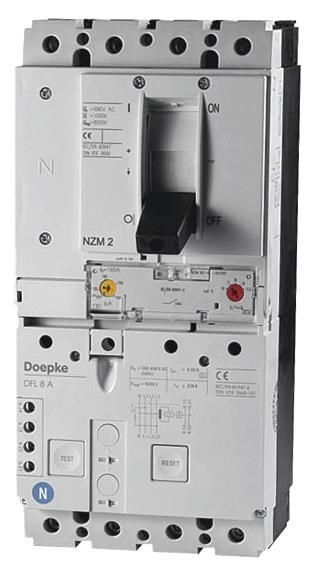

Circuit breakers with residual current protection (CBR) switch high currents, protect equipment, cables and lines from overcurrent and people from electric shock. DFL 8 are compact devices with an integrated auxiliary switch and connection terminals for large cable cross-sections. Type A switches are sensitive to pulse and alternating current. This function is independent of the mains voltage. Switches of this variant have a fixed rated residual current of 30 mA for personal protection. They therefore ensure fault and fire protection as well as additional protection (personal protection, protection against direct contact). Devices in the standard version are designed for monitoring circuits with a rated voltage of 400 V/690 V and a rated frequency of 50 Hz. Properties: fixed rated residual current of 0.03 A, rated currents from 100 A to 250 A, four-pole, rated voltage 400 / 690 V AC, residual current detection for alternating and pulsating direct residual currents, functional range of the residual current tripping 0 - 690 V, functional range of the residual current test device 280 - 690 V, mains and auxiliary voltage independent tripping in the event of overcurrent and residual current, high short-circuit switching capacity, connection terminals up to 185 mm2, high surge current strength, i.e. low tendency to false tripping due to transient fault currents, thresholds for instantaneous and delayed overcurrent tripping adjustable, auxiliary switch integrated, type of installation: attachment to mounting plate, installation position optional, feed direction optional, areas of application: power supplies in purpose-built buildings and industrial plants with TN-S, TT and TN-CS networks with high short-circuit power, in IT networks The residual current tripping of the CBR can be provided for shutdown in the event of a second earth fault. The use for residual current protection in TN-C networks is excluded. Note: In systems whose electronic equipment can cause smooth DC residual currents or residual currents with frequencies other than 50 Hz, the CBR Type A does not provide comprehensive protection. For such applications, we recommend our universal current sensitive CBR Type B.
Type: DFL8 100-4/0,03-A
Questions & answers
What is the delivery time of Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A ?
The article Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Doepke 09164781 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A always at the best possible price. We can give you a discount of 2% on
Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A we can offer you a price of 2.136,81 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
The following item has been put into your shopping cart by our system:
1x
Doepke DFL8 100-4/0,03-A - DOEP DFL8 100 4 / A 0 03 FI / performance scarf mA type A 09164781
Doepke 09164781 DOEP DFL8 100-4 / A 0.03-FI / performance scarf, mA type A
2.237,50 EUR
