DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors

Your rating:
Average rating
product review for DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors
( 4 / 5 ) 4 ratings

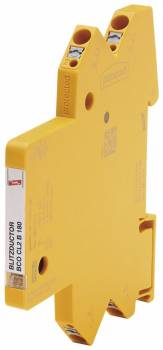

DEHN 927910
This image may differ from the desired article.
DEHN 927910DEHN 927910DEHN 927910
60,04 EUR 60,79 EUR
( 71,45 EUR incl. VAT )
≈ £50.25  |  ≈ $65.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors
Datasheet:file_download Download
Lieske Part No.:1780570
Mfg Part No: 927910
UPC/EAN: 4013364411739
Weight:0.033 kg
Type:BCO CL2 B 180
Graduated prices net
From piecesPrice per pieces
656,44 EUR
1252,84 EUR
2449,23 EUR
3645,63 EUR

Product information for DEHN 927910:

The DEHN BCO CL2 B 180 is a compact surge arrester for use in installation systems, specifically designed for the protection of two individual conductors. It serves in the field of lightning protection to achieve equipotential bonding and enables the implementation of indirect earthing for shielded cables. The device features a low width of 6 mm, making it particularly suitable for space-constrained installation situations. The connection technology uses push-in terminals, enabling quick and secure installation without additional tools. An integrated status indicator signals the operating condition of the arrester, allowing for visual verification of its functionality.

Lightning protection equipotential bonding is a central component of protective measures in electrical installations, designed to prevent voltage differences between different conductors or installation parts that may arise due to lightning strikes or other transient overvoltages. The BCO CL2 B 180 performs this function for two individual conductors, enabling efficient use in complex installations with multiple cables. The arrester’s function is to rapidly and safely divert overvoltages caused by lightning currents or inductive effects, thereby protecting connected devices and installations.

Push-in connection technology enables simple and reliable cable connections without the need for soldering or screwing. The cable is simply inserted into the terminal, creating a mechanically stable and electrically conductive connection. This technique reduces installation time and minimizes error sources during installation. The connection terminals are designed to ensure a secure connection even under vibration and temperature fluctuations.

Status indicator provides visual feedback on the operating condition of the arrester. It allows for quick identification during operation whether the arrester is still functional or if maintenance or replacement is required. This feature is particularly important in installations where continuous availability of the protective function is essential to prevent damage from overvoltages.

Indirect earthing of shielded cables is a method in which the cable shield is not directly connected to the earthing system, but instead connected via an arrester that diverts overvoltages. The BCO CL2 B 180 enables this type of earthing, thereby enhancing electrical safety without compromising the integrity of the shielding. This is particularly relevant in installations with sensitive electronic equipment, where direct earthing could cause interference.

Applications primarily include installation in buildings with lightning protection systems, especially in areas where multiple cables are run in parallel and a compact solution is required. The arrester is suitable for use in distribution boxes, enclosures, and other installation systems where space optimization and quick installation are prioritized. The combination of low width and push-in technology makes it an efficient solution for protecting two individual conductors.

Compatibility and accessories refer to use in existing lightning protection systems based on equipotential bonding and indirect earthing. The arrester is designed for use in systems that can be combined with similar DEHN products to ensure a consistent protection strategy.

Mounting and installation take place in standard distribution boxes or enclosures. The push-in technology allows for quick and tool-free cable connections. The width of 6 mm enables dense mounting of multiple arresters side by side, optimizing space utilization. The status indicator is directly visible on the device, allowing functional checks without additional measuring instruments.

Operational advantages lie in the combination of compact design, easy installation, and visual status indication. Quick installation reduces mounting time, while the status indicator enables continuous monitoring of the protective function. The ability to protect two individual conductors simultaneously increases installation efficiency and reduces the number of required components.

General
Mounting width6 mm
Connection systemPush-in
Protection functionSurge current diverter for 2 individual conductors
Application rangeLightning protection potential equalization, indirect grounding of shielded lines
Status indicatorYes
Extended technical data
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 700 V
Technical data
SPD classA
Impulse categoryD1, C2, C3
Nominal voltage (UN)180 V
Max. continuous operating voltage DC (UC)180 V
Max. continuous operating a.c. voltage (UC)127 V
Nominal current (IN)1.2 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 1100 V
Voltage protection level line-PG for In C2 (UP)≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 950 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 700 V
Series resistance per line0 Ohm
Cut-off frequency line-line at 100 ohms (fG)150 MHz
Capacitance line-line (C)≤ 10 pF
Capacitance line-PG (C)≤ 13 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protectionIP 20
For mounting on35 mm DIN rails acc. to EN 60715
Connection (input / output)push-in / push-in
Cross-sectional area, solid0.2-2.5 mm2
Cross-sectional area, flexible0.2-2.5 mm2
Earthing via35 mm DIN rails acc. to EN 60715
Enclosure materialpolyamide PA 6.6
Colouryellow
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsUL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvalsTÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvalsIECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory CertificationCCC no. 2021312304001192
Test values according to UL 497b
Type (SPD classification)BCO CL2 B 180
Strike voltage Line to Ground 100 V/s min.260 V
Strike voltage Line to Ground 100 V/s max.552 V
Strike voltage Line to Line 100 V/s min.184 V
Strike voltage Line to Line 100 V/s max.285 V


Product data sheet
Datasheet for DEHN 927910, EAN: 4013364411739

Questions & answers

What is the delivery time of DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors?

The article DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927910 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors always at the best possible price. We can give you a discount of 2% on DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 927910 BCO CL2 B 180 Compact BS arrester for 2 single conductors we can offer you a price of 56,44 EUR per piece. The more you buy, the cheaper the article will be.
