DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors

Your rating:
Average rating
product review for DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors
( 4.7 / 5 ) 3 ratings

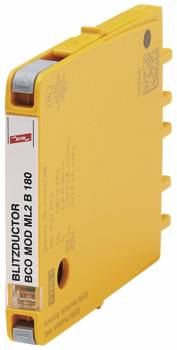

DEHN 927010
This image may differ from the desired article.
DEHN 927010DEHN 927010
77,04 EUR 77,91 EUR
( 91,68 EUR incl. VAT )
≈ £64.48  |  ≈ $84.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors
Datasheet:file_download Download
Lieske Part No.:1989360
Mfg Part No: 927010
UPC/EAN: 4013364410114
Weight:0.014 kg
Type:BCO MOD ML2 B 180
Graduated prices net
From piecesPrice per pieces
672,42 EUR
1267,80 EUR
2463,17 EUR
3658,55 EUR

Product information for DEHN 927010:

Lightning current arrester protection module in 6 mm width for BLITZDUCTORconnect with status display to protect 2 individual wires for lightning protection equipotential bonding as well as the implementation of indirect earthing of shielded cables.

Extended technical data
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 700 V
Technical data
SPD classA
Impulse categoryD1, C2, C3
Nominal voltage (UN)180 V
Max. continuous operating voltage DC (UC)180 V
Max. continuous operating a.c. voltage (UC)127 V
Nominal current (IN)1.2 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 1100 V
Voltage protection level line-PG for In C2 (UP)≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 950 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 700 V
Series resistance per line0 Ohm
Cut-off frequency line-line at 100 ohms (fG)150 MHz
Capacitance line-line (C)≤ 10 pF
Capacitance line-PG (C)≤ 13 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protection (with plugged-in protection module)IP 20
Pluggable intoBCO base part
Earthing viaBCO base part
Enclosure materialpolyamide PA 6.6
Colouryellow
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsUL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvalsTÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvalsIECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory CertificationCCC no. 2021312304001192


Product data sheet
Datasheet for DEHN 927010, EAN: 4013364410114

Questions & answers

What is the delivery time of DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors?

The article DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors always at the best possible price. We can give you a discount of 2% on DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 927010 BCO MOD ML2 B 180 BS surge arrester protection module for 2 single conductors we can offer you a price of 72,42 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
