DEHN 318033 KSFL30STTZN cross piece for Fl30/30

Your rating:
Average rating
product review for DEHN 318033 KSFL30STTZN cross piece for Fl30/30
( 4.3 / 5 ) 6 ratings

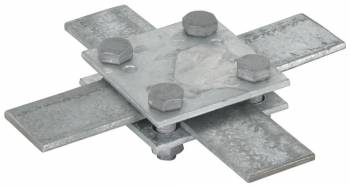

DEHN 318033
This image may differ from the desired article.
DEHN 318033DEHN 318033
9,03 EUR
( 10,75 EUR incl. VAT )
≈ £7.52  |  ≈ $9.91
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x DEHN 318033 KSFL30STTZN cross piece for Fl30/30
Datasheet:file_download Download
Lieske Part No.:943053
Mfg Part No: 318033
UPC/EAN: 4013364021471
Weight:0.281 kg
Type:KS FL30 STTZN
Graduated prices net
From piecesPrice per pieces
258,22 EUR
507,40 EUR
1006,59 EUR
2505,78 EUR

Product information for DEHN 318033:

The DEHN crosspiece type KS FL30 STTZN, manufacturer number 318033, is a connecting element for earthing and lightning protection systems. It is designed for the secure and permanent connection of two flat conductors with a cross-section of 30 mm², where the connection can be made both above and below ground. The product is manufactured in accordance with the standard DIN EN 62561-1, which defines requirements for lightning protection materials in earthing installations. The construction is without an intermediate plate, ensuring a direct mechanical and electrical connection between the conductors. The fastening is done using M8 screws, which provide a firm and corrosion-resistant connection.

Lightning protection material such as the DEHN crosspiece is used in electrical installations to ensure a reliable earthing circuit. Particularly in buildings with lightning protection systems or in industrial facilities where high electrical currents must be diverted, a stable connection between the conductors is essential. The crosspiece enables the branching or crossing of flat conductors without impairing electrical conductivity or mechanical strength. Use in underground installations requires high corrosion resistance, which is supported by the material selection and the design without an intermediate plate.

Functions and equipment in detail include the use of M8 screws for securing the flat conductors. These screws are designed for a secure mechanical connection and ensure low transition resistance values, which are crucial for the effectiveness of the earthing system. The design without an intermediate plate reduces the number of contact points and thus minimizes the risk of corrosion or contact degradation over time. The connection is made directly between the two flat conductors, achieving high electrical conductivity and mechanical stability.

Technology explained simply shows that the crosspiece serves as a mechanical and electrical transition. The standard DIN EN 62561-1 specifies that such components must meet certain requirements for electrical conductivity, mechanical strength, and corrosion resistance. The use of M8 screws enables precise and durable fastening, which remains stable even under stress from earthing currents or mechanical loads. The direct connection without an intermediate plate reduces the number of contact surfaces, lowering the likelihood of oxidation or contact resistance.

Compatibility and accessories refers to use with flat conductors having a cross-section of 30 mm². The crosspiece is specifically designed for this dimension and ensures a precise fit. It is intended for use in earthing installations executed in accordance with DIN EN 62561-1. Use in combination with other DEHN products, such as earthing rails or connecting elements, is possible as long as dimensions and standards are compatible.

Installation and mounting is done by attaching the two flat conductors to the designated mounting points on the crosspiece. The M8 screws are tightened using appropriate tools, with the specified torque value being observed to ensure an optimal connection. Installation can be carried out both outdoors and underground, taking into account environmental conditions such as humidity or ground load. After installation, the connection must be checked for mechanical stability and electrical conductivity.

Operational advantages lie in the high reliability and longevity of the connection. The design without an intermediate plate reduces the number of contact points, thereby minimizing the risk of corrosion or contact degradation. The use of M8 screws ensures a secure fastening that remains stable even under high electrical and mechanical loads. Compliance with DIN EN 62561-1 guarantees adherence to required safety and performance standards for lightning protection systems. The crosspiece is thus a reliable component for earthing installations in buildings, industrial facilities, or other applications where secure earthing is required.

General
NormDIN EN 62561-1
Connection typeCross piece
Flat cable cross-section30 mm²
Screw sizeM8
ModelWithout intermediate plate
Application rangeabove- and below-ground
Material of clampSt/tZn
Clamping range Fl / Fl30 / 30 mm
Dimensions60 x 60 x 3 mm
StandardEN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)8.4 kA


Product data sheet
Datasheet for DEHN 318033, EAN: 4013364021471

Questions & answers

What is the delivery time of DEHN 318033 KSFL30STTZN cross piece for Fl30/30?

The article DEHN 318033 KSFL30STTZN cross piece for Fl30/30 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 318033 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 318033 KSFL30STTZN cross piece for Fl30/30 always at the best possible price. We can give you a discount of 2% on DEHN 318033 KSFL30STTZN cross piece for Fl30/30 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 318033 KSFL30STTZN cross piece for Fl30/30 we can offer you a price of 8,22 EUR per piece. The more you buy, the cheaper the article will be.
