DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation

Your rating:
Average rating
product review for DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation
( 4.5 / 5 ) 13 ratings

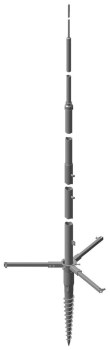

DEHN 103126
This image may differ from the desired article.
DEHN 103126DEHN 103126
2.867,10 EUR
( 3.411,85 EUR incl. VAT )
≈ £2,399.76  |  ≈ $3,150.94
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation
Datasheet:file_download Download
Lieske Part No.:1313822
Mfg Part No: 103126
UPC/EAN: 4013364112841
Weight:42.4 kg
Type:TBM 11M SCFU STTZN AL
Graduated prices net
From piecesPrice per pieces
22.695,07 EUR
42.523,05 EUR
62.351,02 EUR
82.179,00 EUR

Product information for DEHN 103126:

The DEHN Tele-Blitzschutzmast type TBM 11M SCFU STTZN AL is a lightning protection mast specifically designed for use in special installations, featuring an integrated screw foundation. It provides protection against direct lightning strikes and is particularly intended for installations such as biogas plants or photovoltaic plants on open areas. The mast reaches a height of 11,000 mm above floor level and is designed for outdoor use. It is tested in accordance with DIN EN 62561-(1+2), a standard that specifies requirements for lightning protection systems for buildings and installations.

Applications
This lightning protection mast is designed for use in installations that, due to their construction or location, are exposed to an increased risk of lightning strikes. These include open-area installations such as photovoltaic open-field plants or biogas plants, where conventional lightning protection installation would be complex or impossible. The construction allows for quick and easy installation without extensive earthworks.

Functions and Equipment in Detail
The mast is anchored in the ground via a screw foundation. This foundation is screwed directly into the natural ground without prior ground preparation. The anchoring is achieved through the screw foundation, which is additionally secured with deep earth electrodes to ensure stable anchoring. This eliminates excavation work and conventional foundation measures. The construction is designed to remain stable even under wind load.

Technology Explained Simply
The lightning protection mast is dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA), meaning it is designed for a maximum gust wind speed of 112 km/h. This standardization ensures that the mast fulfills its function even under extreme weather conditions. The height of 11,000 mm above floor level ensures that the mast provides sufficient lightning diversion area and that the protected installation lies within the protection zone. The use of a screw foundation enables quick and resource-efficient installation, as no concreting or deep foundations are required.

Compatibility and Accessories
The lightning protection mast is designed as a standalone system and does not require additional components for functionality. Connection to the earthing system is achieved via the deep earth electrodes, which are connected to the screw foundation.

Installation and Mounting
Installation is carried out by screwing the screw foundation into the natural ground. This requires no special ground preparation. After inserting the foundation, the mast is placed on top and connected to the deep earth electrodes to ensure secure anchoring. Installation is therefore quick and does not require special construction measures.

Operational Advantages
The use of the lightning protection mast reduces installation time and costs for earthworks. The construction is robust and designed for outdoor use. Testing in accordance with DIN EN 62561-(1+2) ensures the reliability of the system. The maximum gust wind speed of 112 km/h demonstrates that the mast remains stable even under extreme weather conditions. The simple installation without excavation work makes it particularly suitable for temporary or rapidly installed installations.

General
TestDIN EN 62561-(1+2)
SizingEurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Maximum gust wind speed112 km/h
Foundation typeScrew foundation
BracingDeep grounding electrode
MaterialSt/tZn / Al
Height above ground level (l1)11000 mm
Max. gust wind speed112 km/h
StandardEN 62561-(1+2)


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for DEHN 103126, EAN: 4013364112841

Questions & answers

What is the delivery time of DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation?

The article DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 103126 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation always at the best possible price. We can give you a discount of 2% on DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of DEHN 103126 TBM 11M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation we can offer you a price of 2.695,07 EUR per piece. The more you buy, the cheaper the article will be.
