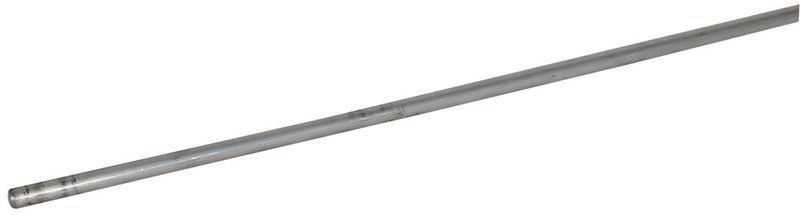

DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered
|
203,30 EUR |
|||||||||||
|
( 241,93 EUR incl. VAT ) ≈ £169.35 | ≈ $223.02 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 20 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 922662 | ||||||||||
| Mfg Part No: | 101000 | ||||||||||
| UPC/EAN: | 4013364094505 | ||||||||||
| Weight: | 4.24 kg | ||||||||||
| Type: | FS 10 1000 AL | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 101000:
Lightning protection systems are necessary to protect structural elements from direct lightning strikes. The lightning rod functions as a lightning rod – an element that captures the lightning current and diverts it into the earthing system. The bevelled ends on both sides allow for flexible installation and secure connection to other conductors or brackets. The use of aluminium as the material provides good conductivity and corrosion resistance, which is crucial for outdoor applications.
Applications include particularly roof structures, chimneys, flues, antenna masts, and other elevated structures that pose an increased risk of lightning strikes. The rod is designed for installation in concrete plinths, where a suitable plinth such as type 102075 BES8.5KGKT1016D240SET (concrete plinth C45/55 with wedge D240 mm) can be used. Alternatively, the rod can be secured using special rod holders or spacing brackets, enabling flexible adaptation to different mounting conditions.
Functions and equipment in detail include the bevelled ends on both sides, which ensure a secure mechanical connection to other conductors or brackets. The aluminium construction provides sufficient electrical conductivity and resistance to weather influences. The length of 1000 mm allows sufficient reach for most roof structures. The rod is not intended for use in concrete plinths with different dimensions or techniques, unless the mounting is done via special brackets.
Technology explained simply means that the lightning rod functions as part of a complete lightning protection system. In the event of a lightning strike, the high current is diverted through the lightning rod and conducted into the earth via the earthing system. The bevelled ends ensure that the rod can be securely connected to other conductors without requiring additional connection pieces. The use of aluminium offers a good combination of conductivity and corrosion resistance, which is important for long-term durability in outdoor environments.
Compatibility and accessories include use with concrete plinths such as type 102075 BES8.5KGKT1016D240SET, specifically designed for mounting lightning rods with wedge technology. Alternatively, rod holders or spacing brackets can be used to attach the rod to existing structures.
Installation and mounting is carried out either by installing the rod in a concrete plinth using wedge technology or by securing it with rod holders or spacing brackets. The bevelled ends on both sides facilitate mechanical connection to other components of the lightning protection system. It is important that the installation complies with applicable standards and regulations for lightning protection to ensure safe operation.
Operational advantages include easy installation, high corrosion resistance, and good electrical conductivity of the aluminium. The bevelled ends allow flexible integration into existing lightning protection systems. The rod is suitable for outdoor use and provides reliable protection for elevated structures. The use of concrete plinths or brackets enables adaptable installation at various locations.
The item price shown refers to 20 pieces DEHN 101000
| General | |
| Diameter | 10 mm |
| Mounting | Ambidextrous |
| Function | Interception rod |
| Application range | roof-mounted structures, chimneys, antenna masts |
| Mounting options | concrete base with wedge technology, rod holder, spacing holder |
| Total length (l1) | 1000 mm |
| Material | AlMgSi |
| Diameter Ø | 10 mm |
| Standard | EN 62561-2 |
Questions & answers
What is the delivery time of DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered ?
The article DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 101000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered always at the best possible price. We can give you a discount of 2% on DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered we can offer you a price of 191,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
DEHN 101000 FS 10 1000 AL lightning rod D10 mm L1000 mm both ends chamfered is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
