Switch 440 mm D-Link DGS-1510-52X/E 4×SFP+/48×GE retail
|
810,71 EUR |
|
|
( 964,74 EUR incl. VAT ) ≈ £678.56 | ≈ $903.94 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1971744 |
| Mfg Part No: | DGS-1510-52X/E |
| UPC/EAN: | 0790069467950 |
| Weight: | 4.24 kg |
| Type: | DGS-1510-52X/E |

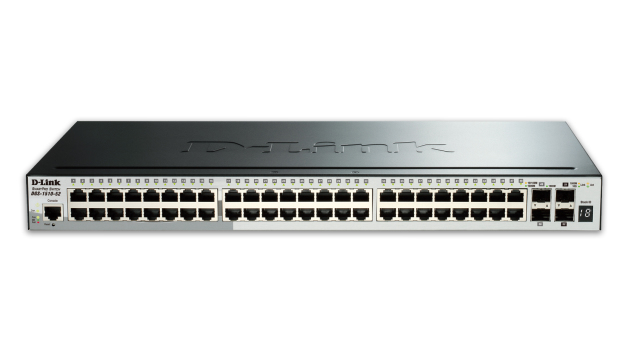

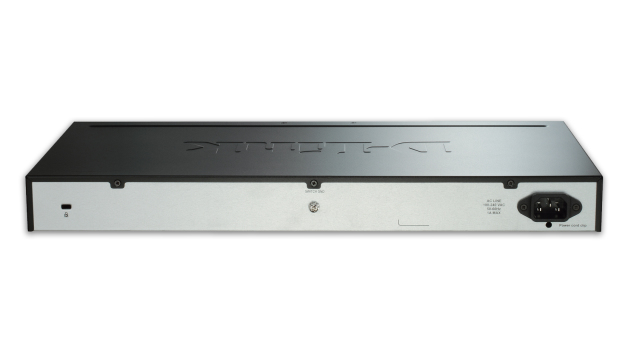

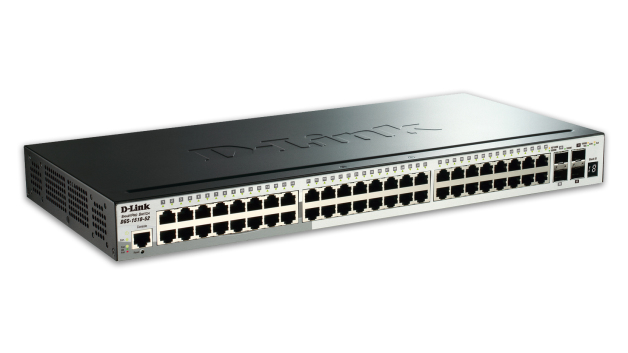

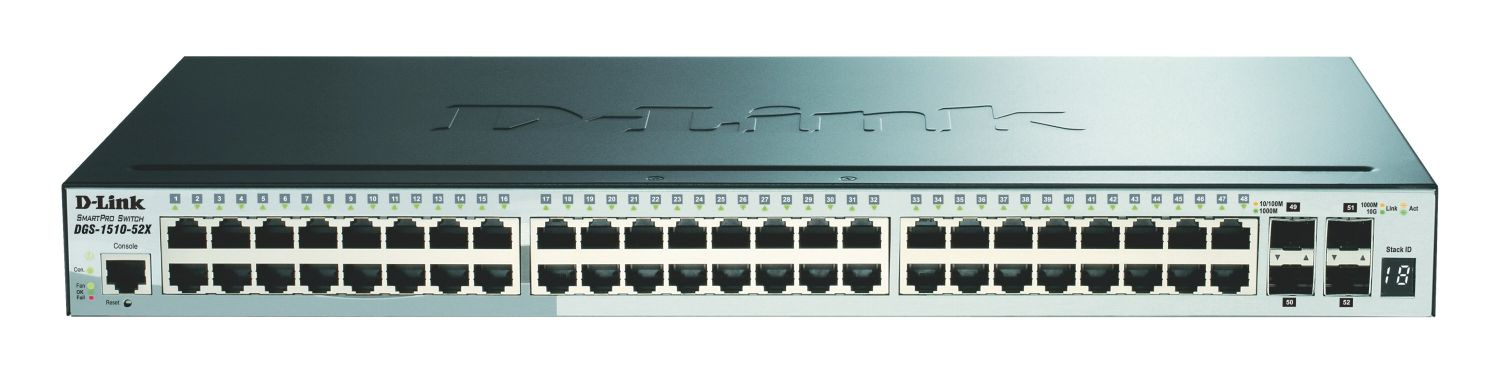

Product information for D-Link DGS-1510-52X/E:
D-Link's DGS-1510 series is the latest generation of smart managed switches and features 10G SFP+ fiber ports for physical stacking or uplinks. Combining high-bandwidth connections, an industry-standard CLI and PoE options, the DGS-1510 series is the ideal solution for small to medium-sized businesses.
Highlights
- 48 x Gigabit Ethernet port
- 4 x 10G SFP+ port
- Virtual stacking with up to 32 devices
- Physical stacking for up to six devices
- Switching capacity 176 Gbit/s
- Smart Fan technology
- Switch
- ear category ( ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C
- Integrated fan
- Switch type: Access
- WEEE: 10490255
- Number of copper ports total: 48
- total number of fiber optic ports: 4
- bandwidth: 10/100/1000 MBit/s
- console port
- main port type: copper
- number of RJ45 ports (1G): 48
- number of SFP+ ports (10G): 4
- switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mounting
- Stacking
- IGMP
- Power supply: integrated
- Color: silver, black
- Height: 44 mm
- Length/depth: 210 mm
- Width: 440 mm
- Weight: 2.4 kg
- D-Link DGS-1510-52X 52-Port Smart Managed Gigabit Stackable Switch
Product type
Specifications
Shipping
Connections
functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.95 Mpps |
| MAC address table | 16000 entries |
| Packet buffer memory | 3 MB |
| Store-and-forward | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Head-of-line (HOL) blocking | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 138.8 BTU/h |
| Packaging data | |
| Package width | 365 mm |
| Package depth | 555 mm |
| Package height | 101 mm |
| Package weight | 4.62 kg |
| Performance | |
| Noise level | 45.8 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Power connector | DC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 44.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Technical details | |
| Shipping (inner) case height | 39.8 cm |
| Shipping (inner) case width | 32.4 cm |
| Shipping (inner) case length | 57.3 cm |
| Shipping (inner) case net weight | 11.4 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 375.1 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 173 cm |
| Pallet gross weight (sea) | 375.1 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 173 cm |
| Shipping (inner) case gross weight | 14.9 kg |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 5.3 kg |
Questions & answers
What is the delivery time of Switch 440 mm D-Link DGS-1510-52X/E 4×SFP+/48×GE retail?
The article Switch 440 mm D-Link DGS-1510-52X/E 4×SFP+/48×GE retail is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1510-52X/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Switch 440 mm D-Link DGS-1510-52X/E 4×SFP+/48×GE retail always at the best possible price. We can give you a discount of 2% on Switch 440 mm D-Link DGS-1510-52X/E 4×SFP+/48×GE retail if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
