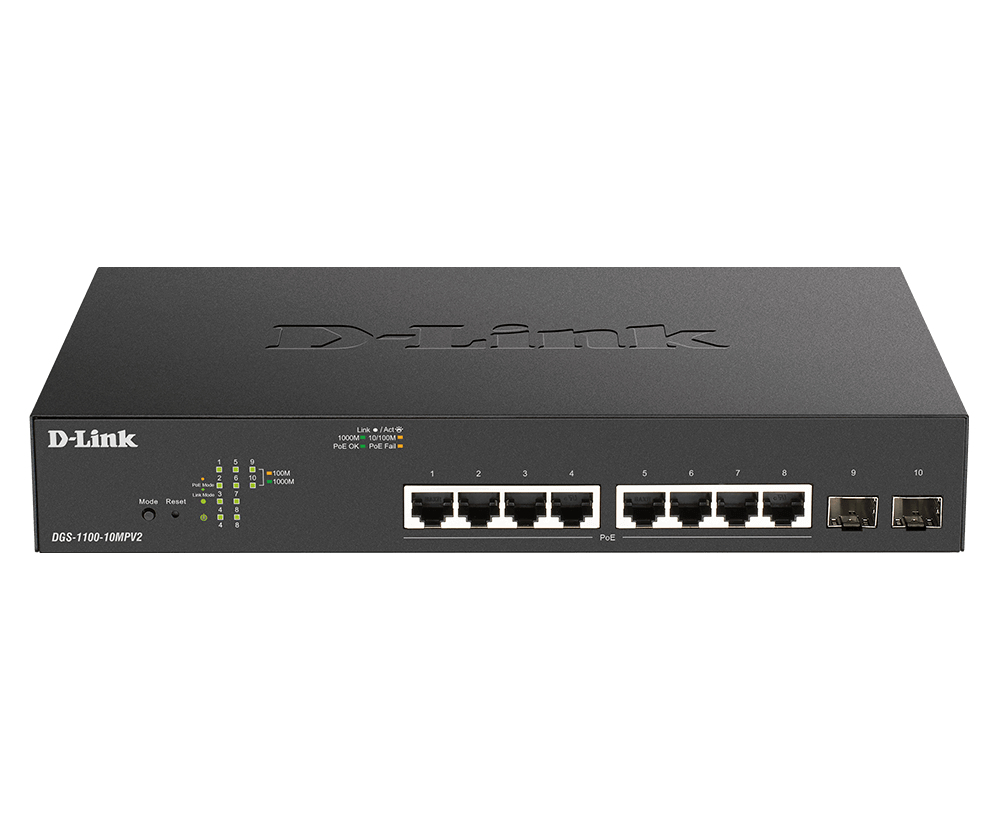

D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug
|
220,45 EUR |
|||||||||||
|
( 262,34 EUR incl. VAT ) ≈ £185.18 | ≈ $247.34 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1971317 | ||||||||||
| Mfg Part No: | DGS-1100-10MPV2/E | ||||||||||
| UPC/EAN: | 0790069467851 | ||||||||||
| Weight: | 2.356 kg | ||||||||||
| Type: | DGS-1100-10MPV2/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1100-10MPV2/E:
Highlights
- 8x Gigabit Ethernet port with PoE support
- 2x Gigabit SFP port
- Switch capacity: 20 Gbit/s
- PoE budget: 130 watts (up to 30 watts per port)
- Easy Layer 2 management
- Web-based user interface
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Integrated fan
- Switch type: Access
- Switching capacity: 20 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 8
- Total number of fiber optic ports: 2
- Total number of PoE ports: 8
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 130 W
- Main port type: copper
- Number of PoE+ (af/at) ports: 8
- Number of RJ45 ports (1G): 8
- Number of SFP ports (1G): 2
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- IGMP
- Power supply: integrated
- Color: silver, black
- Height: 44 mm
- Length/depth: 180 mm
- Width: 280 mm
- Weight: 1.83 kg
- D-Link DGS-1100-10MPV2 10-Port PoE+ Gigabit Smart Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Link aggregation | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Head-of-line (HOL) blocking | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 118.1 BTU/h |
| Performance | |
| Flash memory | 16 MB |
| Noise level | 37 dB |
| Mean time between failures (MTBF) | 406887 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 164.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | SSL/TLS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
Questions & answers
What is the delivery time of D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug?
The article D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1100-10MPV2/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug always at the best possible price. We can give you a discount of 2% on D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of D-Link DGS-1100-10MPV2/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE+ (130W) without UK plug we can offer you a price of 215,49 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
