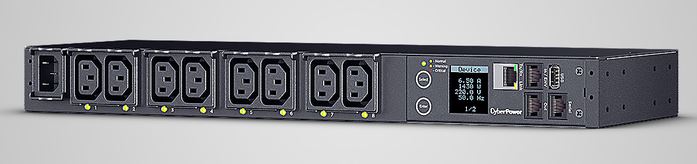

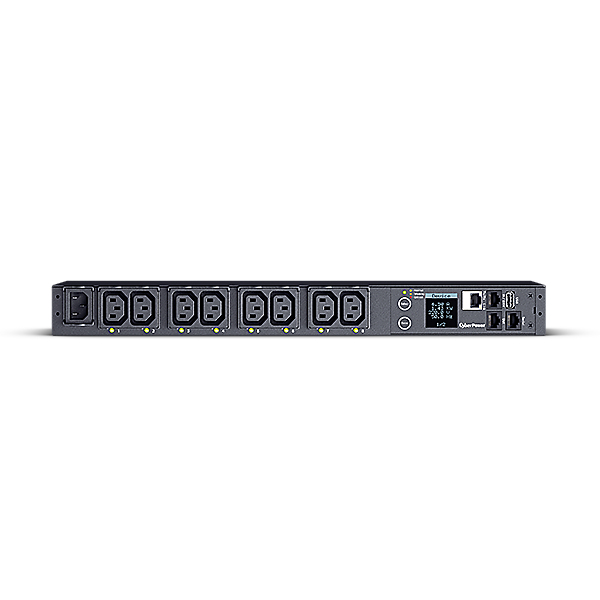

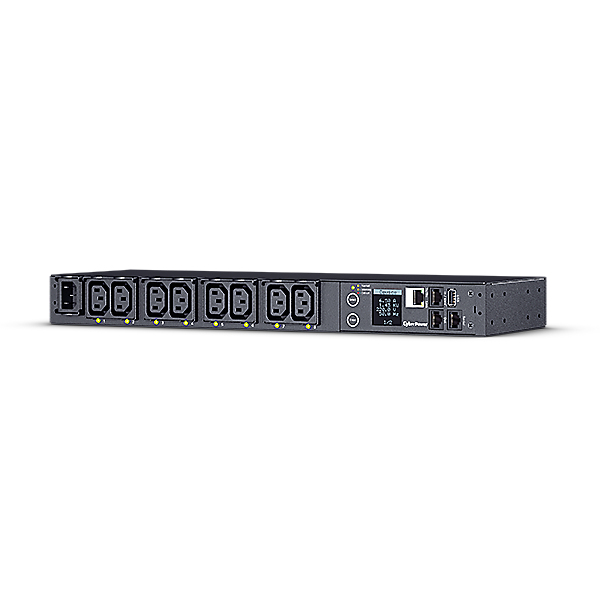

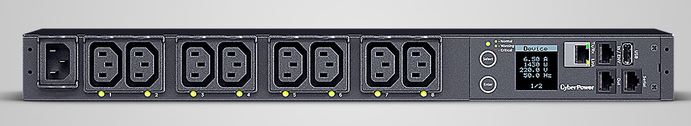

Cyberpower PDU MBO 8x IEC-320 outputs 230V/10A content_copy

Dimensions W433xH44xD112mm, integrated measurement technology (power measurement per output/input) Network connection (SNMP) Individually switchable outputs Fits perfectly in every server cabinet 48,3 cm ( 19 inch ) 1U The MBO models also offer an output power measurement per output. They provide information about the amount of current from each output , each circuit and the entire PDU Switched PDU
Compact network-capable power distribution with switchable outputs
The power distribution strips (PDUs) of the CyberPower Switched series are intelligent distributors that enable remote monitoring via an SNMP interface for local management individual sockets and enables shutdowns or restarts of connected devices. The digital measuring device provides information about load and voltage and prevents downtimes due to overload or other events in the power supply.
The PDUs of the Switched series have 8 unfiltered outputs and are ideal for installation in server cabinets.
The dedicated PowerPanel Business Edition software can be used to communicate with the PDU and integrate with our UPS devices. In addition, a web server is built into the PDU and is managed via the browser. The browser can be connected to the PDU via Secure Socket Layer (SSL) or via encrypted communication. A management framework for SNMP (Simple Network Management Protocol) integration is available. This makes it easy to link events to other data and carry out actions.

The item price shown refers to 10 pieces CyberPower PDU81004

Certificates
Compliance certificates	RoHS
Certification	FCC Class A, UL60950, UL62368, EN 55032 Class A
Design
PDU types	Managed, Metered-by-outlet, Monitored, Switched
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Housing material	Steel
Product colour	Black
Display	LCD
Features
Cable length	3.05 m
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Daisy chain
LED indicators
Management features
Supported network protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable via	USB
Firmware upgradeable
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3500 m
Non-operating altitude	0 - 15000 m
Packaging content
Bundled software	PowerPanel Business, PowerPanel Enterprise
Packaging content	PDU81004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Packaging data
Package weight	3.9 kg
Package width	500 mm
Package depth	250 mm
Package height	65 mm
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	4
USB ports quantity	1
Power
Nominal input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Maximum current	12 A
Nominal output voltage	100 - 240 V
Sustainability
Sustainability compliance
Weight & dimensions
Width	433 mm
Depth	112 mm
Height	44 mm
Weight	2.1 kg

---
