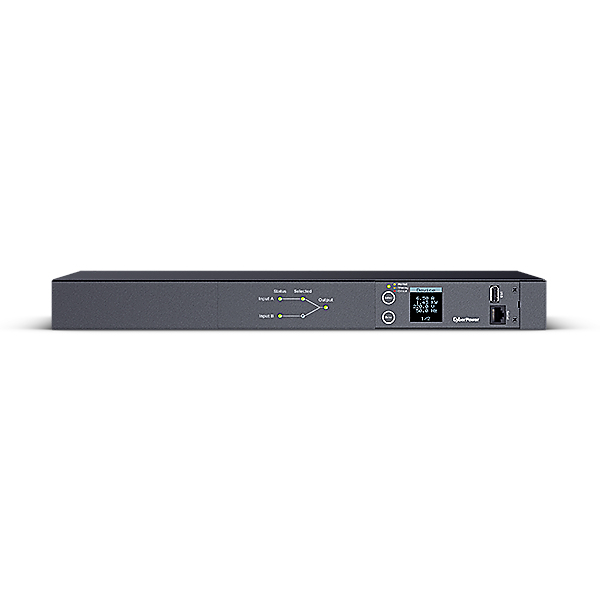

Cyberpower PDU ATS Switch 48,3 cm ( 19 inch ) 2xIEC-C19 8xIEC-C13 230V/16A content_copy

CyberPower PDU24005 The device supplies several connected devices in IT environments with power from a UPS system, a generator or the public power grid. Two power cables can be connected to separate power sources to provide redundancy for connected devices with only one power source. If the selected power source exceeds the desired thresholds or fails, the ATS PDU automatically switches to the other power source to ensure continuous operation.
The device is equipped with a hot-swappable multi-function display that shows real-time data such as current, input voltage and power consumption in amps and watts. The digital LCD display is also color configurable and allows for easy maintenance and monitoring of the ATS-PDU. Users can change the colors of the LCD display to easily categorize devices in server rooms and IT environments. The firmware can also be conveniently updated via the USB port, making the latest features and updates available to users. The product can be connected to a PC via the serial port to locally control the ATS PDU. Features Real-time local monitoring Industrial-grade metal housing User-configurable color LCD LED status indicator User-upgradable firmware Cable holder Dual input Real-time digital load indicator Hot-swappable LCD Firmware upgrade via USB Flexible rack mounting IEC power outlet

Certificates
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RoHS, UL
Certification	FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Design
PDU types	Metered
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Housing material	Steel
Product colour	Black
Display	LCD
Features
LED indicators	Link, Status
Cable length	3.05 m
Logistics data
Warranty period	2 year(s)
Management features
Firmware upgradeable
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 95 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 4000 m
Non-operating altitude	0 - 15000 m
Packaging content
Packaging content	PDU24005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Packaging data
Package weight	6 kg
Package width	550 mm
Package depth	398 mm
Package height	125 mm
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1
Power
Nominal input voltage	200 - 240 V
AC input frequency	50 / 60 Hz
Maximum current	12 A
Nominal output voltage	200 - 240 V
Power protection features	Overload
Circuit breaker
Sustainability
Sustainability compliance
Weight & dimensions
Width	433 mm
Depth	215 mm
Height	44 mm
Weight	3.2 kg

---
