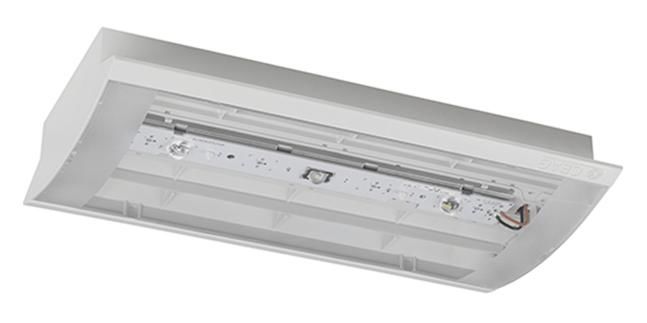

CEAG Style II 22011 LED CG-S LED rescue light with one-sided emission

Escape sign luminaire in accordance with DIN EN 60598-1, DIN EN 60598-2-22, DIN 4844-1 and DIN EN 1838. Modular luminaire with one-sided, rounded light emission surface, luminaire housing made of 850°C glow wire-resistant, halogen-free polycarbonate for tool-free assembly on the quick assembly kit. Escape sign illumination using special LED optics in accordance with DIN 4844-1: average luminance of the white contrast color Lm >= 500 cd/m². Long service life > 50,000 hours due to optimized LED operating conditions. Special LED converter with integrated monitoring module for individual luminaire monitoring with 20-digit address switches. Mixed operation of the switching types (standby light, permanent light or switched permanent light) within a circuit without additional data or switching lines to the luminaires in conjunction with suitable group or central battery systems with STAR technology is possible. Permissible temperature range: -20°C to + 40°C. The escape sign panel and quick assembly kit are not included in the scope of delivery and must be ordered separately. Installation type: wall-mounted Light source: LED Lamp power: 3 W Switching: other Housing material: plastic Housing color: gray Cover material: opal plastic Type of marking: one-sided only Suitable for type of marking: insert sheet/plate Monitoring device: monitoring module (centrally supplied system) Ball-proof: No Switching type: permanent circuit/standby circuit With remote switch connection (VDE 0100-718, VDE 0108-100): Yes Feed: central (central battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP41 With light source: Yes Length: 340 mm Width: 197 mm Height/depth: 60 mm Luminous flux in emergency operation: 100 % Viewing distance: 32 m
Type: Style II 22011 LED CG-S
