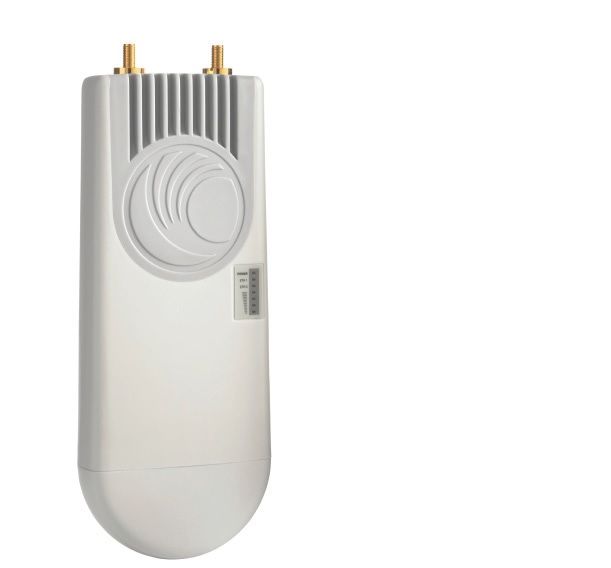

Cambium Networks EPMP 1000: 5 GHz Connectorized Radio (EU)

Cambium Networks EPMP 1000: 5 GHz Connectorized Radio (EU) EPMP 1000 Connectorized radio wireless service providers and enterprises need reliable, high-quality Broadband Connectivity That Can Be Rapidly deployed and expanded. The EPMP architecture Provides highly scalable Broadband Access solution thatwill allow you to build and expand your network with a faster return on investment. "159Cambium Networks2415,5 cm ( 951 inch ) radios deliver bandwidth-intensive services: such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability.Using the 5 GHz frequency spectrum, the new architecture is the EPMP Most Effective Connectivity Solution for Reaching the under- and unconnected around the world.MODEL NUMBER 5 GHz: C050900P023A / C050900A023A (EU), C058900P122A / C058900A122A (FCC), C050900P021A / C050900A021A (ROW) 2.4 GHz: C024900P021A / C024900A021ASpectrumCHANNEL SPACING Configurable on 5MHz incrementsFREQUENCY RANGE 5 GHz: 4910 - 5970 MHz (exact frequencies as allowed by local regulations) 2.4 GHz: 2402-2472 MHzCHANNEL WIDTH 5 | 10 | 20 | 40 MHzInterfaceMAC (Media Access Control) layer Cambium ProprietaryPHYSICAL LAYER 2x2 MIMO / OFDMETHERNET INTERFACE 100 BaseT, Cambium PoE (V + = pins 7 & 8, Return = pins 4 & 5) PROTOCOLS USED IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP SnoopingNETWORK MANAGEMENT HTTPs, SNMPv2c, SSHVLAN 802.1Q with 802.1p priorityPerformanceARQ: YesNOMINAL RECEIVE SENSITIVITY (W / FEC) @ 20MHZ CHANNEL = -93 dBm to MCS0 MCS15 = -69 dBm (per branch) NOMINAL SENSITIVITY ( W / FEC) @ 40MHZ CHANNEL MCS0 = -90 dBm to -66 dBm = MCS15 (per branch) MODULATION LEVELS (ADAPTIVE) MCS0 (BPSK) to MCS15 (64QAM 5/6) QUALITY OF SERVICE Three priority level (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority
