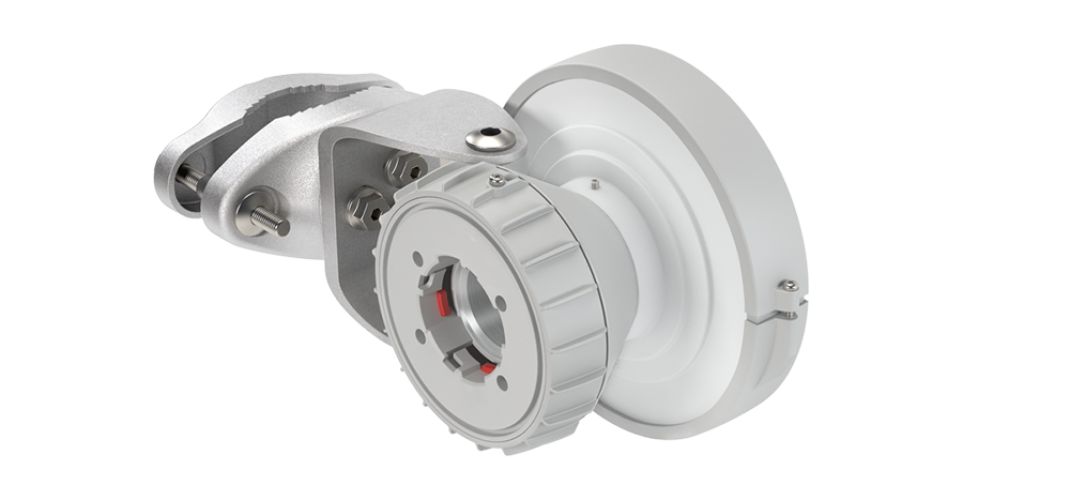

RF Elements SH-TP-5-80
Symmetrische Hornantenne 80° Sektor,
|
84,56 EUR 84,56 EUR |
|
|
( 100,63 EUR incl. VAT ) ≈ £70.69 | ≈ $93.44 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 25. Jan 2025 |
|---|---|
| Lieske Part No.: | 533525 |
| Mfg Part No: | SH-TP-5-80 |
| Weight: | 1.9 kg |
Product information for RF Elements SH-TP-5-80:
The RF Elements SH-TP-5-80 is a symmetrical horn antenna for wireless networks, specifically designed for use in wireless network applications. It features a TwistPort™ connector, enabling quick and secure connection to the network device. The antenna is designed for outdoor use and provides stable signal transmission within a sector of 80°. The construction from UV-resistant ABS plastic, polycarbonate, polypropylene, aluminium, and stainless steel ensures high mechanical strength and durability under various environmental conditions.
Applications
The antenna is suitable for use in wireless networks, particularly in scenarios requiring broad coverage within a sector of 80°. It is appropriate for Point-to-Multipoint connections, where multiple end devices are to be supplied from a central location. The antenna can be installed in various infrastructures such as industrial facilities, buildings, or public spaces, where reliable wireless communication is required.
Features and Equipment in Detail
The SH-TP-5-80 features a TwistPort™ connector, enabling quick and secure mounting. The mechanical tilt of the antenna can be adjusted by ±25° to ensure optimal alignment with the target device. The antenna provides a maximum gain of 10.4 dBi and a typical gain of 10.3 dBi, enabling efficient signal transmission over long distances. The horizontal and vertical radiation pattern is 60° at -3 dB and 81° at -6 dB, ensuring broad sector coverage. The front-to-back ratio is 29 dB, ensuring good directivity and minimal interference from behind.
Technology Explained Simply
The antenna uses a horn radiator geometry, ensuring uniform and focused signal radiation. The gain in dBi describes the antenna's ability to amplify the signal, with 10.3 to 10.4 dBi representing medium to high gain. The radiation pattern of 60° at -3 dB and 81° at -6 dB means the signal is radiated over a wide angle, with sufficient signal strength within this range to ensure a stable connection. The IP55 protection rating protects the antenna from dust and splashing water, making it suitable for outdoor use. The temperature resistance from -30°C to +55°C allows use in various climate zones.
Compatibility and Accessories
The antenna is equipped with a TwistPort™ connector, enabling quick and secure connection to compatible network devices. Mounting is done on masts with a diameter of 15 to 86 mm. The antenna is designed for use in wireless networks, particularly in scenarios requiring broad sector coverage.
Mounting and Installation
Mounting is done on a mast with a diameter of 15 to 86 mm. The antenna can be mechanically tilted by ±25° to ensure optimal alignment. Installation requires no special tools or additional components, as the antenna features a TwistPort™ connector enabling quick and secure connection. Mounting is done outdoors, with the IP55 protection rating and wind resistance of 160 km/h enabling safe installation under various weather conditions.
Operational Advantages
The SH-TP-5-80 provides stable and reliable signal transmission within a broad sector of 80°. The mechanical tilt allows precise alignment, while the IP55 protection rating and temperature resistance ensure long service life under various environmental conditions. The quick mounting via the TwistPort™ connector reduces installation time and increases efficiency during commissioning.
Applications
The antenna is suitable for use in wireless networks, particularly in scenarios requiring broad coverage within a sector of 80°. It is appropriate for Point-to-Multipoint connections, where multiple end devices are to be supplied from a central location. The antenna can be installed in various infrastructures such as industrial facilities, buildings, or public spaces, where reliable wireless communication is required.
Features and Equipment in Detail
The SH-TP-5-80 features a TwistPort™ connector, enabling quick and secure mounting. The mechanical tilt of the antenna can be adjusted by ±25° to ensure optimal alignment with the target device. The antenna provides a maximum gain of 10.4 dBi and a typical gain of 10.3 dBi, enabling efficient signal transmission over long distances. The horizontal and vertical radiation pattern is 60° at -3 dB and 81° at -6 dB, ensuring broad sector coverage. The front-to-back ratio is 29 dB, ensuring good directivity and minimal interference from behind.
Technology Explained Simply
The antenna uses a horn radiator geometry, ensuring uniform and focused signal radiation. The gain in dBi describes the antenna's ability to amplify the signal, with 10.3 to 10.4 dBi representing medium to high gain. The radiation pattern of 60° at -3 dB and 81° at -6 dB means the signal is radiated over a wide angle, with sufficient signal strength within this range to ensure a stable connection. The IP55 protection rating protects the antenna from dust and splashing water, making it suitable for outdoor use. The temperature resistance from -30°C to +55°C allows use in various climate zones.
Compatibility and Accessories
The antenna is equipped with a TwistPort™ connector, enabling quick and secure connection to compatible network devices. Mounting is done on masts with a diameter of 15 to 86 mm. The antenna is designed for use in wireless networks, particularly in scenarios requiring broad sector coverage.
Mounting and Installation
Mounting is done on a mast with a diameter of 15 to 86 mm. The antenna can be mechanically tilted by ±25° to ensure optimal alignment. Installation requires no special tools or additional components, as the antenna features a TwistPort™ connector enabling quick and secure connection. Mounting is done outdoors, with the IP55 protection rating and wind resistance of 160 km/h enabling safe installation under various weather conditions.
Operational Advantages
The SH-TP-5-80 provides stable and reliable signal transmission within a broad sector of 80°. The mechanical tilt allows precise alignment, while the IP55 protection rating and temperature resistance ensure long service life under various environmental conditions. The quick mounting via the TwistPort™ connector reduces installation time and increases efficiency during commissioning.
| General | |
| Connection | TwistPort™ |
| Degree of protection | IP55 |
| Temperature range | -30 °C |
| Wind resistance | 160 km/h |
| Mechanical tilt | ±25° |
| Maximum gain | 10,4 dBi |
| Typical gain | 10,3 dBi |
| Azimuth beamwidth -3 dB | 60° |
| Elevation beamwidth -3 dB | 60° |
| Azimuth beamwidth -6 dB | 81° |
| Elevation beamwidth -6 dB | 81° |
| Front-to-back ratio | 29 dB |
| Mounting diameter | 15-86 mm |
| Materials | UV-resistant ABS, polycarbonate, polypropylene, aluminium, stainless steel |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of RF Elements SH-TP-5-80 Symmetrische Hornantenne 80° Sektor, ?
The article RF Elements SH-TP-5-80 Symmetrische Hornantenne 80° Sektor, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RF Elements SH-TP-5-80 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RF Elements SH-TP-5-80 Symmetrische Hornantenne 80° Sektor, always at the best possible price. We can give you a discount of 2% on RF Elements SH-TP-5-80 Symmetrische Hornantenne 80° Sektor, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
