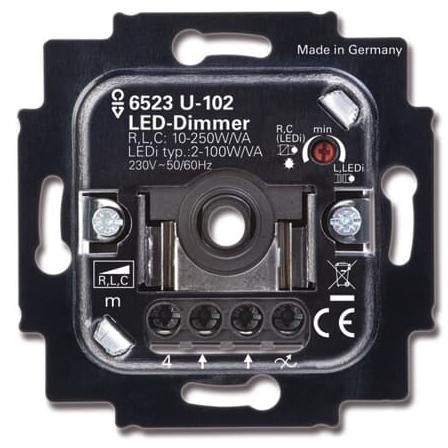

Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer
|
86,45 EUR 90,09 EUR |
|||||||||||
|
( 102,88 EUR incl. VAT ) ≈ £74.09 | ≈ $99.76 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 597548 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA006512A0334 | ||||||||||
| UPC/EAN: | 4011395212677 | ||||||||||
| Weight: | 0.106 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Modular devices, switches, buttons, etc. from Busch JaegerFurther products in category Modular devices, switches, buttons, etc.
All products of Busch Jaeger
Product information for Busch Jaeger 2CKA006512A0334:
With rotary operation, pressure sequence changeover switch and soft locking. 2-wire connection technology (neutral conductor not required). Optimized for dimming retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi) on conventional or electronic transformers For incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy-saving lamps. Mixed load operation of LEDi and conventional lamps possible. Can be switched between leading and trailing edge phase control using a selector switch. Low noise thanks to the use of MOSFET transistors. Short-circuit proof and overload proof (electronic fuse). With adjustable minimum brightness. Without central plate. Nominal voltage: 230 V~, + 10% / - 10% Nominal frequency: 50 Hz/60 Hz Nominal power: 2 - 100 W/VA (retrofit LED loads). Nominal power: 10 - 250 W/VA (non-LED loads). Can be illuminated using a glow lamp. Glow lamp included with the central plate. For conventional transformers, take into account ~20% transformer losses. For electronic transformers, take into account ~5% transformer losses.
Type: 6523 U-102
Type: 6523 U-102
Questions & answers
What is the delivery time of Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer?
The article Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Busch Jaeger 2CKA006512A0334 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer always at the best possible price. We can give you a discount of 2% on Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Busch Jaeger 2CKA006512A0334 BJ 6523 U-102 Busch dimmer insert, Busch dimmer UP Twistdimmer we can offer you a price of 85,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
