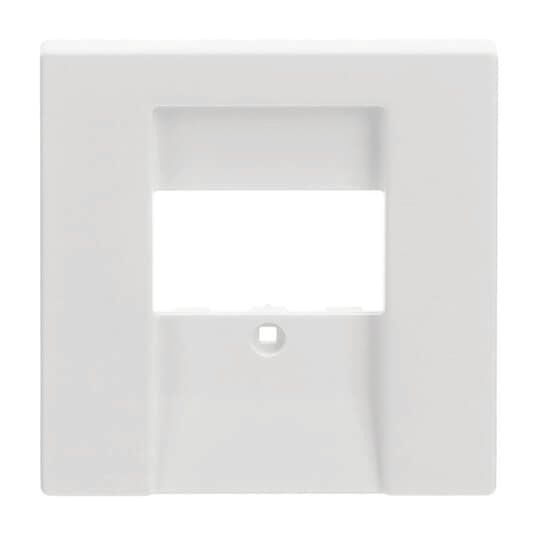

Busch Jaeger 2CKA001710A3926 1766-884 cover for TAE future linear studioweiß matt
|
12,34 EUR |
|||||||||||
|
( 14,68 EUR incl. VAT ) ≈ £10.28 | ≈ $13.54 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 105711 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA001710A3926 | ||||||||||
| UPC/EAN: | 4011395131626 | ||||||||||
| Weight: | 0.0155 kg | ||||||||||
| Type: | 1766-884 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Busch Jaeger 2CKA001710A3926:
Applications
The cover is used in electrical installations to integrate mounting inserts such as communication adapters, speaker socket outlets, or USB charging units visually. It is particularly suitable for applications where a clean, uniform surface in the building cabling area is required. The cover is intended for indoor use only, as the protection rating IP20 does not provide protection against contact or water ingress. The cover is not intended for outdoor use or damp environments.
Functions and Equipment in Detail
The cover is made of thermoplastic and is manufactured halogen-free, offering better fire behaviour properties compared to halogen-containing plastics. The surface is lacquered and finished in a matt appearance, ensuring a uniform, low-reflection look. The colour corresponds approximately to RAL number 9016. The cover is without a labelling field and without printing, allowing it to blend optically into existing installations without displaying additional markings. Fixing is done via screw, with no strain relief or lampholder clamp integrated. The cover is not shielded, neither the housing nor the sockets, and serves exclusively as a mechanical closure.
Technology Explained Simply
The cover is designed for straight outlet direction, meaning the cable or plug is led vertically out of the wall. Dimensions are 63 mm width, 63 mm height, and 8.4 mm depth, matching the standard size for platform 63. Impact resistance is IK03, providing minimal protection against mechanical impacts such as light touches or small objects. The cover is not intended for use with mounting rings and is without dust protection. It is used exclusively as a central plate for D-Sub 15-pin connectors, and the cover is not equipped with sockets or couplings.
Compatibility and Accessories
The cover is compatible with various mounting inserts, including TAE and UAE/TAE inserts, USB and VGA socket outlets, as well as speaker socket outlets. It fits products such as item number 0248/04-101 (speaker socket outlet) and 0219/13 (data module). For visual coordination, various frames and cover frames are available in the design lines future® linear, Busch-axcent®, and carat®, for example frames 1721-885K (1-way, black matt) or 1722-885K (2-way, black matt). The cover is also suitable for Keystone mounting adapters.
Installation and Mounting
Mounting is carried out in the flush-mounted area, with the cover being fixed to the wall plate using a screw. Installation requires an exact cutout in the plaster, matching the dimensions of 63 mm × 63 mm. Fixing is done without additional tools that are not part of the product.
Advantages in Operation
The cover provides a uniform, clean appearance in the installation, integrating seamlessly into existing wall designs. The use of halogen-free thermoplastic improves fire protection properties. The matt lacquered surface reduces reflections and ensures an even visual appearance. The cover is designed for indoor use and offers a robust, though not particularly impact-resistant, construction suitable for normal handling. Compatibility with various mounting inserts enables flexible use in different installation scenarios.
| General | |
| Assembly arrangement | Central cover plate |
| Utilization | D-Sub 15-pole |
| Outlet direction | Straight |
| Imprintable label | Without indication field |
| Mounting method | Flush mounted (plaster) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | White |
| RAL-number (akin) | 9016 |
| Type of fastening | Mounting with screw |
| Suitable for number of connectors | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Width of device | 63 |
| Height of device | 63 |
| Depth of device | 8.4 |
| Impact strength | IK03 |
| Support ring | |
| With dust cover | |
| With hinged lid | |
| With imprint | |
| Halogen free | |
| Transparent | |
| With buses/couplings | |
| With strain relief | |
| Shielded buses | |
| Shielded housing | |
| Luster terminal | |
| Antibacterial treatment | |
| With lighting | |
