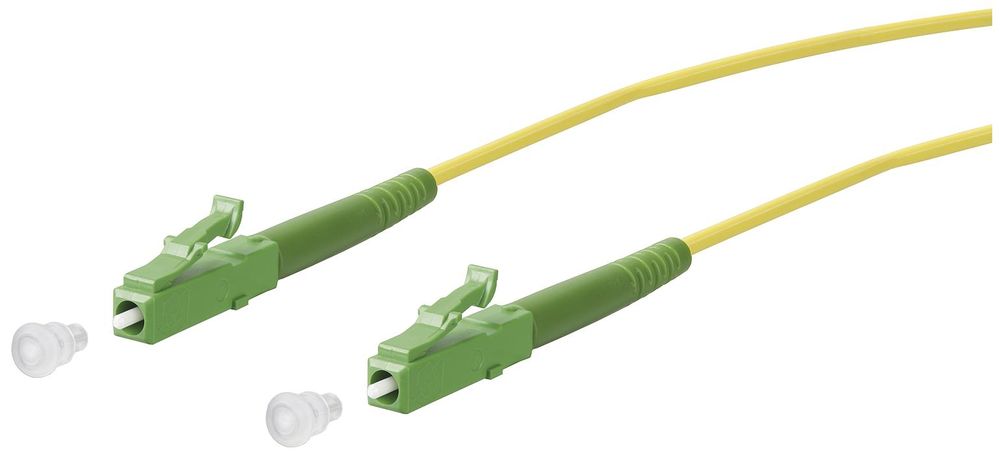

OpDAT simplex patch cable LCAPC/LCAPC OS2 10 m
simplex patch cable with fiber optic connectors assembled on both sides.
Cable type:
Simplex patch cable IV(ZN)H1, with solid core and aramid yarn, suitable
for indoor applications.
UV-stabilized, flame-retardant and halogen-free according to IEC 60754-1, IEC
60754-2, IEC 61034, IEC 60332-1-2 and IEC 60332-3-24.
Cable sheath: yellow, Ø 2.0 mm.
Cable length: 10 m
Fiber type:
Singlemode fiber, E9/125µm, OS2 (IEC 11801), IEC 60793-2-50 B.6_a and
B6_b. Insensitive to bending according to ITU-T G.657.A2 and G.657.B2, compatible
with ITU-T G.652.D.
Side A:
Connector: LC-Simplex APC according to IEC 61754-20, color green, with
transparent dust protection caps. Insertion loss max. 0.3 dB,
return loss min. 65 dB.
Side B:
Connector: LC-Simplex APC according to IEC 61754-20, color green, with
transparent dust protection caps. Insertion loss max. 0.3 dB,
return loss min. 65 dB.
Insertion loss measured against master (IEC 61300-3-4, method B) at
1310 and 1550 nm, 100% tested.
Return loss measured against master (IEC 61300-3-6). 100%
tested.
After the measurement, final visual inspection of the plugs according to IEC
61300-3-35.
Delivered as a cable ring in a plastic bag.
Marking and documentation: The patch cable must be marked
with a serial number and a barcode .
The above optical limits must
be printed on the packaging label. A measurement report with
all optical measurement values must be available upon request.
Metal and plastic parts are recyclable, RoHS compliant, evidence
from the manufacturer must be enclosed.
Make: METZ CONNECT
Type: OpDAT simplex patch cable LCAPC/LCAPC 10m, OS2, yellow, Ø 2.0 mm.
Type: 151P3JAJAA0E
