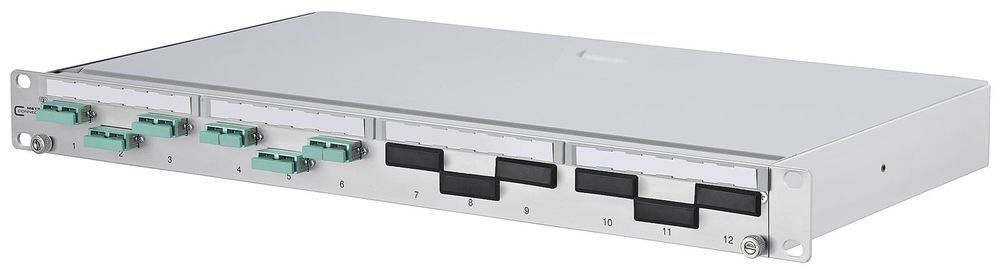

BTR 150225BA06-E OpDAT 24PA 6xSC-D MM OM3 ceramic aqua best. 19z 1U patch panel

19 inch, 1U fiber optic patch panel with pull-out splice tray/front panel (gray or black), equipped with SC-D couplings and SC pigtails, pigtails with compact fiber ø 0.9 mm, 12 colors, secondary and primary coating in the same color, length 2.0 m, pigtails inserted and set aside in standard splice cassette with crimp splice holders, pigtails cleaned and inserted into couplings, pull-out can be tilted and completely removed for better assembly (pull-out stop), lightweight aluminum construction, unused cutouts closed with blind plugs, variable cable entry (straight/angled) possible on both sides, cable clamping possible using the cable ties supplied or optional cable screw connection, cable diameter 3 to 20 mm, strain relief for central element/Kevlar, cable management through freely positionable guide elements, screwless cover, viewing window for enclosed label inserts, variants: equipped with 6, 12 or 24 SC-D couplings and pigtails each in blue (OS2), lime green (OM5), violet (OM4), aqua (OM3) or 6, 12 or 24 SC-D APC couplings and pigtails each in green (OS2)
Type: 150225BA06-E
