BlackBox VSW-MC-CTRL

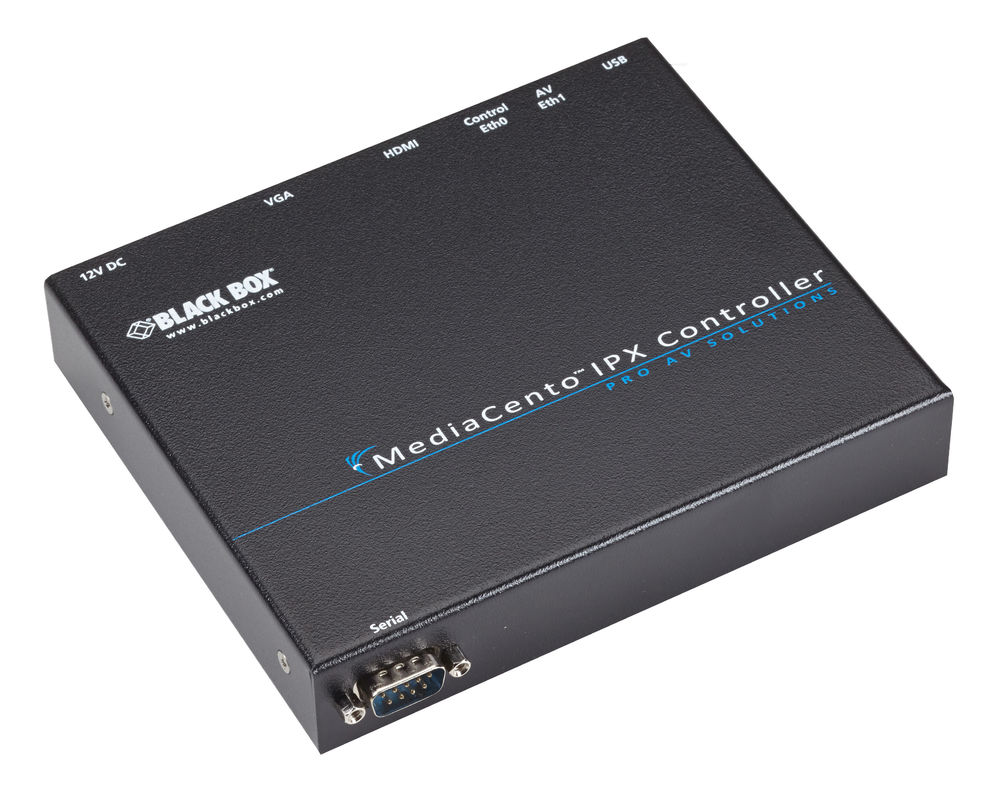

MediaCento IPX Controller

MediaCento IPX Controller

Transform your IP-based MediaCento IPX transmitters and receivers into an IP-based matrix switch and video wall controller.

Gain full control over your IP-based MediaCento IPX transmitters and receivers.
Manage content remotely via an intuitive web interface or mobile device.
Control video walls up to 8 x 8 screens.
Easily expandable system.
Auto-discovery of units on the network.
No port limitation, supports hundreds of units.
Dual Ethernet interfaces for control from a secondary network.
Define presets and groups.
Create and manage multi-zone video walls.
Warranty: 3-Year Double Diamond™ (Standard)

Flexible Matrix Switching and Video Wall Control
The MediaCento IPX Controller offers cost-effective, flexible matrix switching and video wall control. It enables complete control over IP-based MediaCento transmitters and receivers, turning the system into an IP-based matrix switch and video wall controller.

Plug-and-Play Installation
Simple setup: Connect to the network, and the device automatically detects all MediaCento units. Use the intuitive web interface for seamless control.

Dual Ethernet Ports for Secondary Network Control
Two Ethernet interfaces allow control from a secondary network. Using a separate network for AV signal transmission reduces main network traffic while ensuring control access from a secondary network or mobile device.

Intuitive Web Interface for Remote Content Management
The controller features a web interface for easy switching of sources and screens, creation of presets, multi-zone layouts, and remote control of video wall zones.

No Port Limitation
This IP-based system supports hundreds of units, allowing video walls up to 8 x 8 screens.

Mobile Management
The system can be easily managed via mobile, providing access and monitoring of presets from any smartphone or tablet.

Technical Specifications:

Connectors:

• (2) RJ-45
• (2) USB Type A
• (1) HDMI
• (1) VGA (not yet supported)
• (1) DB9 Serial (not yet supported)

Distance:

• Point-to-point: 100 m; extendable with Ethernet switch

Power Supply:

• Input: 100–240 V, 50–60 Hz, 0.5 A
• Output: 12 VDC, 1.5 A

Resolution:

• Maximum: Full HD (1920 x 1080), WUXGA (1920 x 1200)

Dimensions:

• 3H x 15.5W x 13D cm

Certifications:

• CE, RoHS

TAA-compliant: YES
