BlackBox SW1005A Ultra Secure Multimode A / B / C / D Switch, Latching ST

Ultra Secure Multimode A/B/C/D Switch

Simple to use – route signals by turning the front panel knob. The Ultra Secure Multimode A/B/C/D Switch uses reliable micro-mirror technology and operates entirely optically, eliminating the need for optical-to-electrical conversion. It provides a secure, long-lasting solution for mission-critical applications.

- Micro-mirrors transmit data optically and in full duplex between ports
- No optical-to-electrical conversion needed; mirrors direct data streams seamlessly
- Micro-mirrors are bonded to precision servos for stable operation in mission-critical environments
- Connects a single workstation to up to 4 networks or remote devices
- Transparent operation regarding data rates, formats, and wavelengths – no upgrades needed when protocols change or speeds increase
- Warranty: 1-Year Double Diamond™ (Standard)

Reliability through Pure Optical Switching:

The Ultra Secure Multimode A/B/C/D Switches are highly reliable, using micro-mirrors instead of electronics to route data. Without complex electronic circuits, risks like monitoring, failures, and interference are eliminated, making it a trusted choice for secure applications.

The switch is available in two versions – latching and non-latching. The latching model mechanically holds the selected position during power loss. The non-latching version automatically switches back to Common-to-A position if power is lost.

Latching Technology:

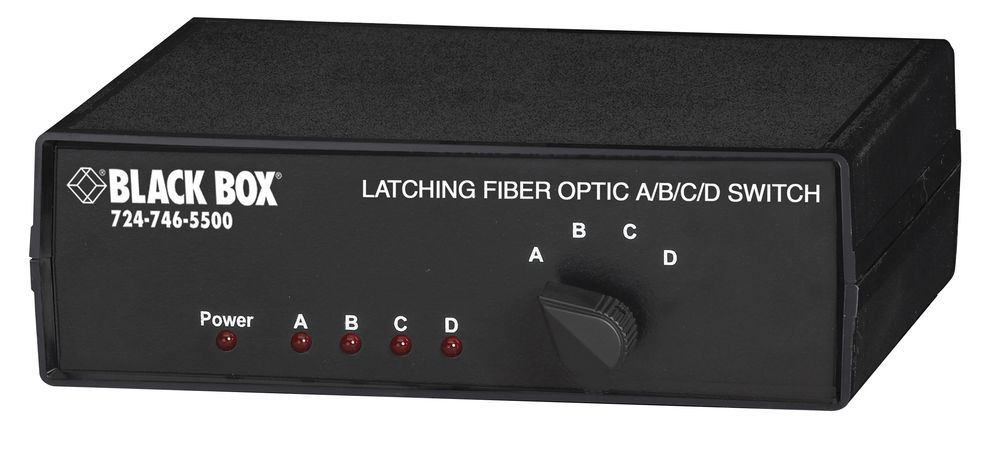

The Latching Fibre Optic Switches are full-duplex and work optically. The A/B model, for instance, enables connecting a workstation to two different networks (one at a time). A front panel rotary knob allows the user to choose between Port A or B as the connection to the COMMON port. Micro-mirrors redirect the light beam between network ports without converting optical signals to electronic, making it transparent to data rates and protocols.

Applications:

This switch is ideal where a selected connection must remain active during power failure. Use the non-latching version for applications needing fallback to a pre-set connection. These switches only use power for switching; no power is required for data transmission. They are ideal for government, healthcare, financial, and other data-sensitive networks connecting to public networks.

Technical Specifications:

• Compatibility: 62.5-/125-micron multimode fibre
• Crosstalk: -45 dB (typical) per FOTP-42
• MTBF: 100,000 hours or 1,000,000 cycles
• Optical Loss: 0.5 dB (typical) at 1300 nm per FOTP-34 Method B
• Wavelength Sensitivity:
- Model SW1005A: 750 to 1440 nm
- Model SW1006A-R2: 850 to 1310 nm

• Switching Speed: Typical: 5 ms; Maximum: 10 ms
• Connectors: Fibre Ports: (5) ST pairs; Power: (1) 3.5-mm input
• Power: Input: 100–240 VAC, 50–60 Hz, auto-sensing; Output: 5 VDC
• Size: 6.4 H x 20.3 W x 16 D cm
• Weight: 1.8 kg
