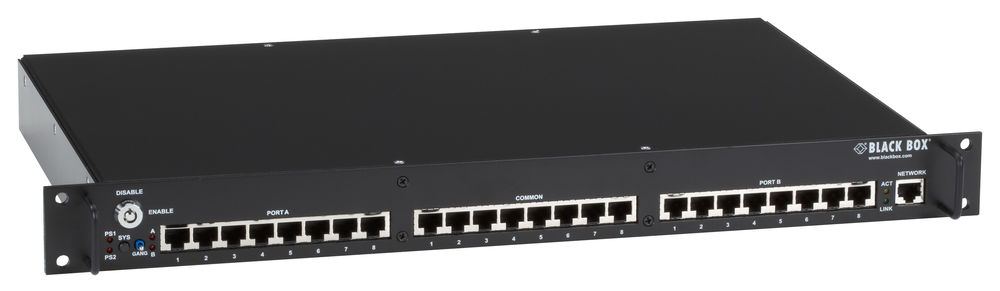

BlackBox NBSALL8MGR Network Backup Switch Managed 8-Port, all leads

Product Description in English:

The Pro Switching System 1U NBS offers a reliable A/B gang switching capability designed to prevent costly network downtime. With multiport switching, this system facilitates seamless transitions between primary and backup networks, reducing productivity loss and maintaining operational continuity. The A/B position is latched, ensuring signal flow is maintained even during power loss. Switch control options include manual or electronic via an RS-232 local console, or remote control over TCP/IP on managed models. A key-lock mechanism with a removable key secures the gang switch control, preventing unauthorized access.

Fiber models (NBS004, NBS006) use highly reliable optical micro-mirrors, while copper models use internal telecom-grade relays, offering transparency to data rates, protocols, and signal levels. The NBSALL8 model supports networks up to gigabit speed. This compact, 1U rack-mountable chassis has dual power inputs for redundancy, with daisy-chaining capability that supports up to 4080 ports or 255 chassis for large-scale installations.

Features:

• Multiport Switching: Prevents productivity and business downtime
• A/B Switching: Supports SC multimode fiber, 10/100 copper, or 10/100/1000 copper circuits
• Latched Signal Transmission: Keeps A/B position in power loss scenarios
• Control Options: Manual, electronic via RS-232, remote TCP/IP (managed models)
• Key-Lockable Gang Switching: Removable key for secured control
• Fiber Variants: Micro-mirror optical switches, EMI/RFI-free signaling
• Copper Variants: High-reliability telecom-grade relays
• Data Transparency: Compatible with all data rates, protocols, and signal levels
• Network Speed: Supports up to gigabit speed (NBSALL8)
• Compact 1U Design: Rack-mountable chassis
• Power Redundancy: Dual power inputs
• Daisychain Capability: Up to 4080 ports or 255 chassis

Available Models:

• Fiber Models (NBS004, NBS006): SC duplex connectors, optical latching switches
• Copper Models (NBS008, NBSALL8, NBS016): RJ-45, supports up to gigabit speed

Technical Specifications:

Switch Types:

• A/B Gang Switch: 1 momentary toggle switch
• Gang Switch Securing: 1 key-lock switch
• System Select: 1 momentary push-button switch
• Rack Address Selection: 8-position DIP switch
• Configuration: 8-position DIP switch

Indicators:

• Power LEDs: Status 1, Status 2
• Switch Position LEDs: All ports position A/B
• Network Status LEDs (Managed Versions): Management port ON, activity indicator

Connectors:

• Fiber (SC): NBS004A/NBS004MA - 12 SC duplex, NBS006A/NBS006MA - 18 SC duplex
• Copper (RJ-45): NBS008A/NBS008MA - 24 RJ-45, NBS016A/NBS016MA - 48 RJ-45
• Management Port (Managed Versions): 1 RJ-45 (10BASE-T)
• Serial Control Port: DB9 F (RS-232)
• Daisychain: RJ-11 (gang in/gang out)

Operating Environment:

• Temperature: 0 to 40 °C
• Humidity: Up to 95%, non-condensing

Power Supply:

• Input: 2 x 100-230 VAC, 50/60 Hz, for redundancy
• Output (by model):
- NBS004A/NBS004MA: 12 VDC, 100 mA nominal, 320 mA while switching
- NBS006A/NBS006MA: 12 VDC, 100 mA nominal, 480 mA while switching
- NBS008A/NBS008MA: 12 VDC, 100 mA nominal, 187 mA while switching
- NBSALL8/NBSALL8MGR/NBS016A/NBS016MA: 12 VDC, 100 mA nominal, 374 mA while switching


Dimensions:

• 1U Rack-Mountable Chassis, 4.4H x 43.8W x 26.7D cm
• Weight: 2.3 kg (excluding external power supply)

Warranty:

• 1 Year Double Diamond™ (Standard)
